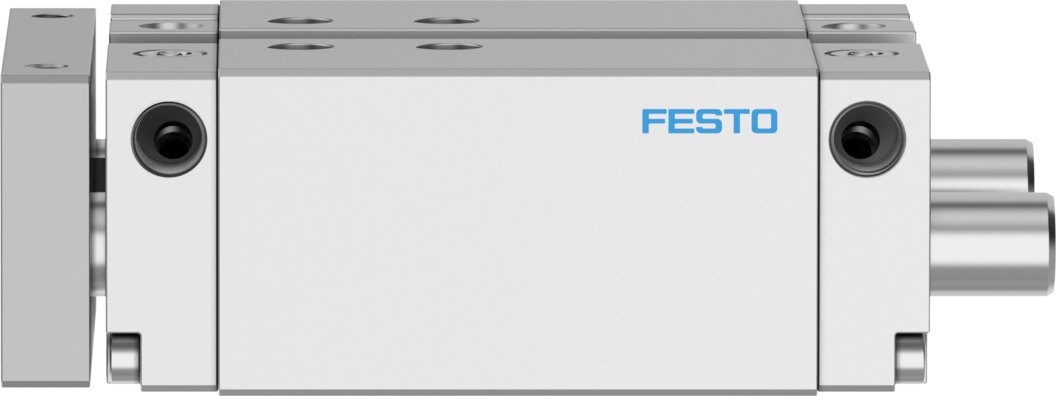

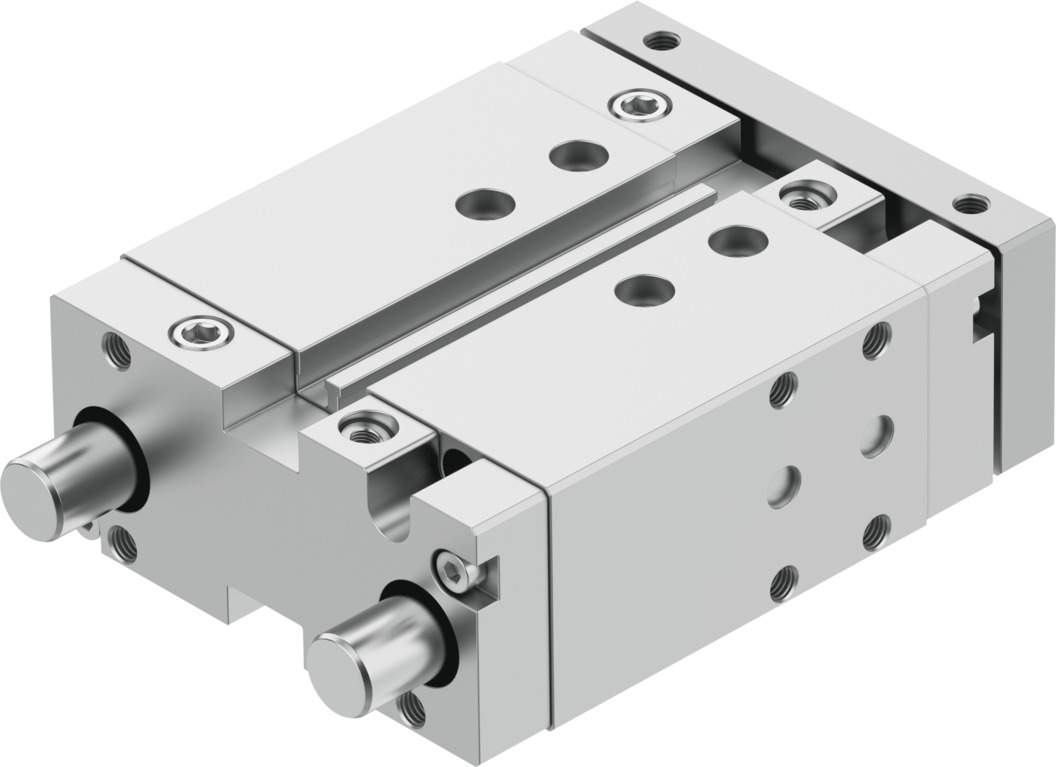

Guided drive with ball bearing guide Ø 25 mm 40 mm stroke DFM-25-40-B-PPV-A-KF - Festo 609350

Name: Guided drive with ball bearing guide Ø 25 mm 40 mm stroke DFM-25-40-B-PPV-A-KF - Festo 609350
Brand: Festo
SKU: FES-609350
Price: 447.67 EUR
Availability: InStock

Festo ✓ Original product Brand new

With 40 mm stroke and a 25 mm piston, the DFM-25-40-B-PPV-A-KF guided drive handles lifting and pushing tasks on a recirculating ball bearing guide. At 6 bar it delivers a theoretical 295 N advancing and 247 N retracting. Pneumatic end-position cushioning is adjustable at both ends.

Net

€447.67

excl. VAT

Item FES-609350

Manufacturer no. DFM-25-40-B-PPV-A-KF

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

At 6 bar the DFM-25-40-B-PPV-A-KF turns a theoretical 295 N into a guided linear motion over 40 mm, with a 25 mm piston.

Benefits

Recirculating ball bearing guide: guide rods in recirculating ball bushings
Force: 295 N advance and 247 N return at 6 bar (theoretical)
Cushioning: pneumatic end-position cushioning, adjustable at both ends
Piston rod: high-alloy stainless steel
Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L

Applications

Typical jobs for the DFM-25-40-B-PPV-A-KF are precise lifting, pushing and positioning in assembly and handling systems. Operating medium for the DFM-25-40-B-PPV-A-KF is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -5 to 60 °C, any mounting position. Documented for this 40 mm stroke version: cleanroom class 6 to ISO 14644-1.

Technical data

Type	DFM-25-40-B-PPV-A-KF
Festo part number	609350
Stroke	40 mm
Piston diameter	25 mm
Operating mode, drive unit	Yoke
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	Any
Guide	Recirculating ball bearing guide
Design	Guidance
Position detection	Via proximity switch
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom suitability (ISO 14644-14)	Class 6 according to ISO 14644-1
Ambient temperature	-5 to 60 °C
Impact energy in end positions	0.3 J
Theoretical force at 6 bar, return stroke	247 N
Theoretical force at 6 bar, advance stroke	295 N
Alternative connections	See product drawing
Pneumatic connection	G1/8
Material cover	Wrought aluminium alloy
Material seals	NBR
Material housing	Wrought aluminium alloy
Material piston rod	High-alloy stainless steel
Weight	1.6 kg
Manufacturer	Festo
Hersteller-Nr	DFM-25-40-B-PPV-A-KF
EAN	4052568411688
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Ausführung	Kugelumlaufführung
Material	Aluminium
Thread	G 1/8
Piston Ø [mm]	25
Stroke [mm]	40
Seal material	NBR
Medium	Compressed air
Function	double-acting
Series	DFM
Bore (mm)	25
Temperaturbereich	-5-60 °C
Temperature (max.)	60
