Führungszylinder DFM-25-125-B-PPV-A-GF - Festo 8161428

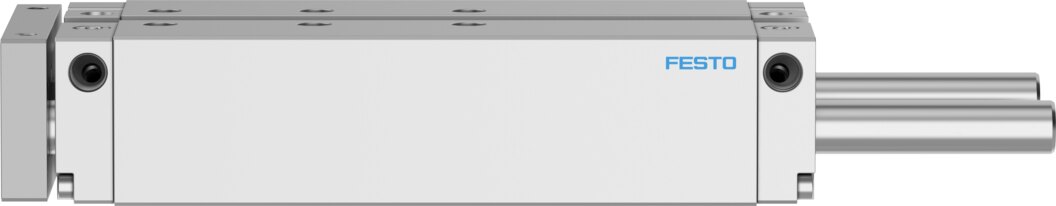

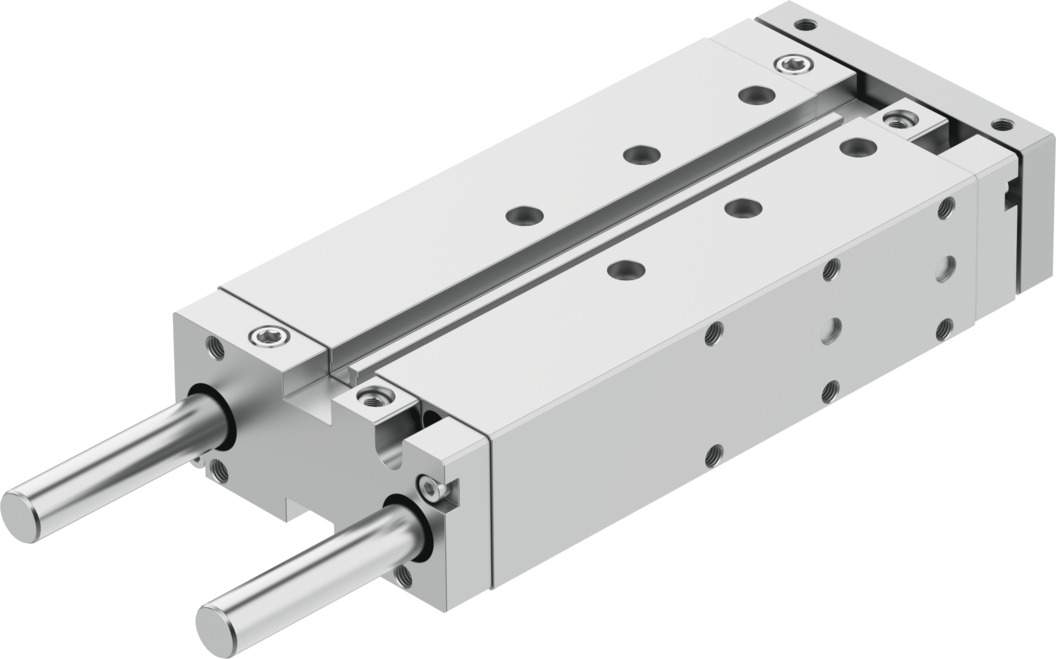

Führungszylinder DFM-25-125-B-PPV-A-GF - Festo 8161428 Führungszylinder DFM-25-125-B-PPV-A-GF - Festo 8161428 Führungszylinder DFM-25-125-B-PPV-A-GF - Festo 8161428

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Guided drive with plain-bearing guide Ø 25 mm 125 mm stroke DFM-25-125-B-PPV-A-GF - Festo 8161428

Festo ✓ Original product Brand new

The Festo DFM-25-125-B-PPV-A-GF carries the load on guide rods with plain-bearing guide and a yoke plate, with a 25 mm piston and 125 mm stroke. At 6 bar it delivers a theoretical 295 N advancing and 247 N retracting. Pneumatic end-position cushioning is adjustable at both ends.

Net
€439.47
excl. VAT
Item FES-8161428
Manufacturer no. DFM-25-125-B-PPV-A-GF
Save Compare
Question about this item
Datasheet (PDF)
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

At 6 bar the DFM-25-125-B-PPV-A-GF turns a theoretical 295 N into a guided linear motion over 125 mm, with a 25 mm piston.

Benefits

  • Plain-bearing guide: guide rods in plain bearings
  • Force: 295 N advance and 247 N return at 6 bar (theoretical)
  • Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
  • Piston rod: high-alloy stainless steel
  • Cushioning: pneumatic end-position cushioning, adjustable at both ends

Applications

The DFM-25-125-B-PPV-A-GF suits lifting, stopping and pushing tasks in conveyor systems and fixture building. The DFM-25-125-B-PPV-A-GF runs on compressed air to ISO 8573-1:2010 [7:4:4] at -20 to 80 °C ambient temperature and can be mounted in any position. Documented for this 125 mm stroke version: cleanroom class 6 to ISO 14644-1 and corrosion resistance class 2 for moderate corrosion stress.

Technical data

TypeDFM-25-125-B-PPV-A-GF
Festo part number8161428
Stroke125 mm
Piston diameter25 mm
Operating mode, drive unitYoke
CushioningPneumatic cushioning, adjustable at both ends
Mounting positionAny
GuidePlain-bearing guide
DesignGuidance
Position detectionVia proximity switch
Operating pressure1.5 to 10 bar
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability (ISO 14644-14)Class 6 according to ISO 14644-1
Ambient temperature-20 to 80 °C
Impact energy in end positions0.3 J
Theoretical force at 6 bar, return stroke247 N
Theoretical force at 6 bar, advance stroke295 N
Alternative connectionsSee product drawing
Pneumatic connectionG1/8
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR
Material housingWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Weight2.8 kg
ManufacturerFesto
Hersteller-NrDFM-25-125-B-PPV-A-GF
EAN4052568595791
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungGleitführung
MaterialAluminium
ThreadG 1/8
Piston Ø [mm]25
Stroke [mm]125
Seal materialNBR
MediumCompressed air
Functiondouble-acting
SeriesDFM
Bore (mm)25
Betriebsdruck max [bar]10
Temperaturbereich-20-80 °C
Temperature (max.)80
