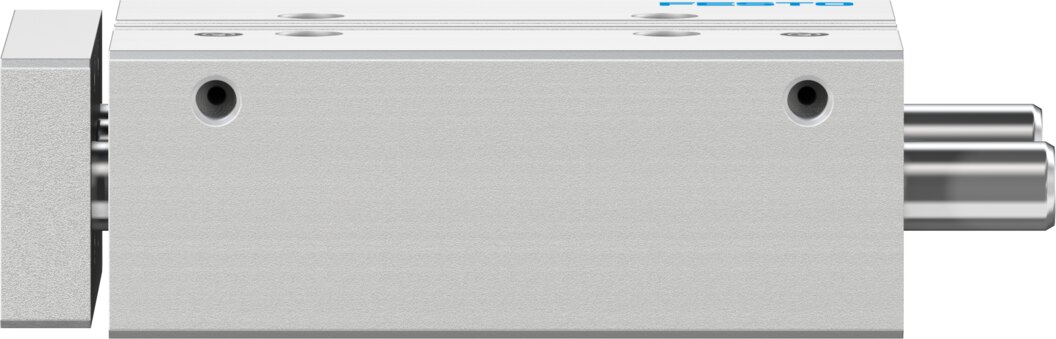

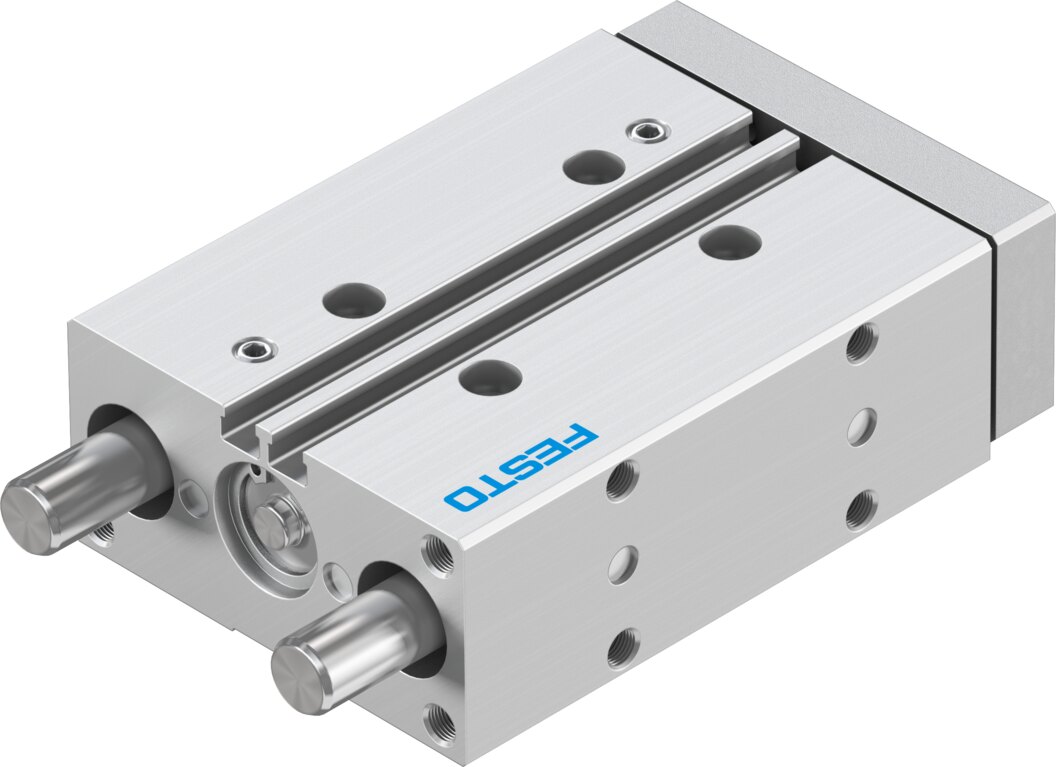

Guided drive with ball bearing guide Ø 16 mm 50 mm stroke DFM-16-50-P-A-KF-F1A - Festo 8118835
The Festo DFM-16-50-P-A-KF-F1A carries the load on guide rods with recirculating ball bearing guide and a yoke plate, with a 16 mm piston and 50 mm stroke. At 6 bar it delivers a theoretical 121 N advancing and 90 N retracting. Maximum effective load is 77 N at 50 mm load distance.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where a bare piston rod cannot take side loads, the DFM-16-50-P-A-KF-F1A guided drive steps in with 50 mm stroke and 121 N advancing force at 6 bar.
Benefits
- Recirculating ball bearing guide: guide rods in recirculating ball bushings, transverse force Fy up to 778 N
- Force: 121 N advance and 90 N return at 6 bar (theoretical)
- Speed: up to 0.8 m/s
- Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
- Piston rod: high-alloy stainless steel
- Battery production: reduced Cu/Zn/Ni content (F1a)
Applications
Typical jobs for the DFM-16-50-P-A-KF-F1A are precise lifting, pushing and positioning in assembly and handling systems. The DFM-16-50-P-A-KF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -5 to 60 °C ambient temperature and can be mounted in any position. For electronics, precision or battery production, this 16 mm version offers cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
Technical data
| Type | DFM-16-50-P-A-KF-F1A |
|---|---|
| Festo part number | 8118835 |
| Load centre of gravity to yoke plate xs | 50 mm |
| Stroke | 50 mm |
| Piston diameter | 16 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Variants | no copper, zinc or nickel as main constituent (exceptions: nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical connectors, coils) |
| Operating pressure | 2 to 10 bar |
| Maximum speed | 0.8 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability (ISO 14644-14) | Class 6 according to ISO 14644-1 |
| Ambient temperature | -5 to 60 °C |
| Impact energy in end positions | 0.15 J |
| Maximum force Fy | 778 N |
| Maximum force Fy static | 830 N |
| Maximum force Fz | 778 N |
| Maximum force Fz static | 830 N |
| Maximum moment Mx | 17.9 Nm |
| Maximum moment Mx static | 19.09 Nm |
| Maximum moment My | 10.5 Nm |
| Maximum moment My static | 11.2 Nm |
| Maximum moment Mz | 10.5 Nm |
| Maximum moment Mz static | 11.2 Nm |
| Maximum permissible torque Mx (stroke-dependent) | 2.63 Nm |
| Maximum effective load at distance xs (stroke-dependent) | 77 N |
| Theoretical force at 6 bar, return stroke | 90 N |
| Theoretical force at 6 bar, advance stroke | 121 N |
| Moving mass | 310 g |
| Product weight | 699 g |
| Centre of gravity of moving mass (stroke-dependent) | 35.2 mm |
| Alternative connections | See product drawing |
| Pneumatic connection | M5 |
| Note on materials | RoHS compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Weight | 0.7 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DFM-16-50-P-A-KF-F1A |
| EAN | 4052568556471 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Kugelumlaufführung |
| Material | Aluminium |
| Thread | M5 |
| Piston Ø [mm] | 16 |
| Stroke [mm] | 50 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | double-acting |
| Series | DFM |
| Bore (mm) | 16 |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -5-60 °C |
| Temperature (max.) | 60 |
