Führungszylinder DFM-16-100-B-PPV-A-KF - Festo 559464
Führungszylinder DFM-16-100-B-PPV-A-KF - Festo 559464 Führungszylinder DFM-16-100-B-PPV-A-KF - Festo 559464 Führungszylinder DFM-16-100-B-PPV-A-KF - Festo 559464

Images are examples, some edited with AI. The technical data are authoritative. AI notice

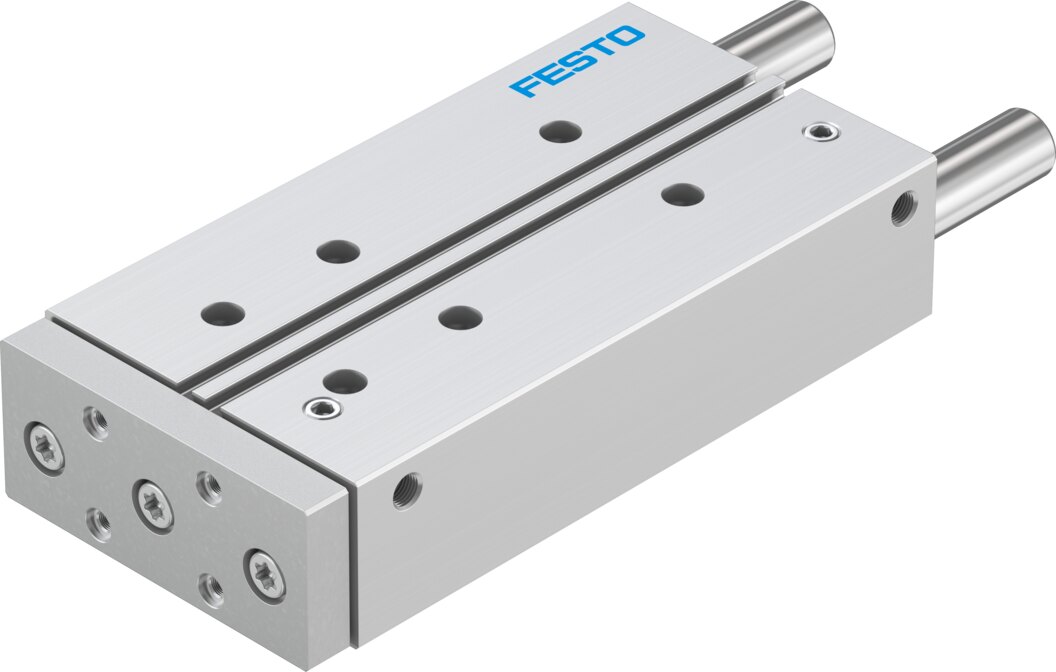

Guided drive with ball bearing guide Ø 16 mm 100 mm stroke DFM-16-100-B-PPV-A-KF - Festo 559464

Festo ✓ Original product Brand new

With 100 mm stroke and a 16 mm piston, the DFM-16-100-B-PPV-A-KF guided drive handles lifting and pushing tasks on a recirculating ball bearing guide. At 6 bar it delivers a theoretical 121 N advancing and 104 N retracting. Pneumatic end-position cushioning is adjustable at both ends.

Net
€451.25
excl. VAT
Item FES-559464
Manufacturer no. DFM-16-100-B-PPV-A-KF
Save Compare
Question about this item
Datasheet (PDF)
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

16 mm piston, 100 mm stroke and 121 N advancing force at 6 bar: the DFM-16-100-B-PPV-A-KF guided drive combines drive and guide in one ready-to-fit unit.

Benefits

  • Recirculating ball bearing guide: guide rods in recirculating ball bushings
  • Force: 121 N advance and 104 N return at 6 bar (theoretical)
  • Piston rod: high-alloy stainless steel
  • Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
  • Cushioning: pneumatic end-position cushioning, adjustable at both ends

Applications

Use the DFM-16-100-B-PPV-A-KF where smooth travel and accurate guidance matter for lifting, joining or ejecting parts. Operating medium for the DFM-16-100-B-PPV-A-KF is compressed air to ISO 8573-1:2010 [7:4:4], permitted ambient temperature -5 to 60 °C, any mounting position. For electronics, precision or battery production, this 16 mm version offers cleanroom class 6 to ISO 14644-1.

Technical data

TypeDFM-16-100-B-PPV-A-KF
Festo part number559464
Stroke100 mm
Piston diameter16 mm
Operating mode, drive unitYoke
CushioningPneumatic cushioning, adjustable at both ends
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
Position detectionVia proximity switch
Operating pressure2 to 10 bar
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability (ISO 14644-14)Class 6 according to ISO 14644-1
Ambient temperature-5 to 60 °C
Impact energy in end positions0.15 J
Theoretical force at 6 bar, return stroke104 N
Theoretical force at 6 bar, advance stroke121 N
Alternative connectionsSee product drawing
Pneumatic connectionM5
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR
Material housingWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Weight1 kg
ManufacturerFesto
Hersteller-NrDFM-16-100-B-PPV-A-KF
EAN4052568362676
Zolltarifnummer84123100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
AusführungKugelumlaufführung
MaterialAluminium
ThreadM5
Piston Ø [mm]16
Stroke [mm]100
Seal materialNBR
MediumCompressed air
Functiondouble-acting
SeriesDFM
Bore (mm)16
Betriebsdruck max [bar]10
Temperaturbereich-5-60 °C
Temperature (max.)60
