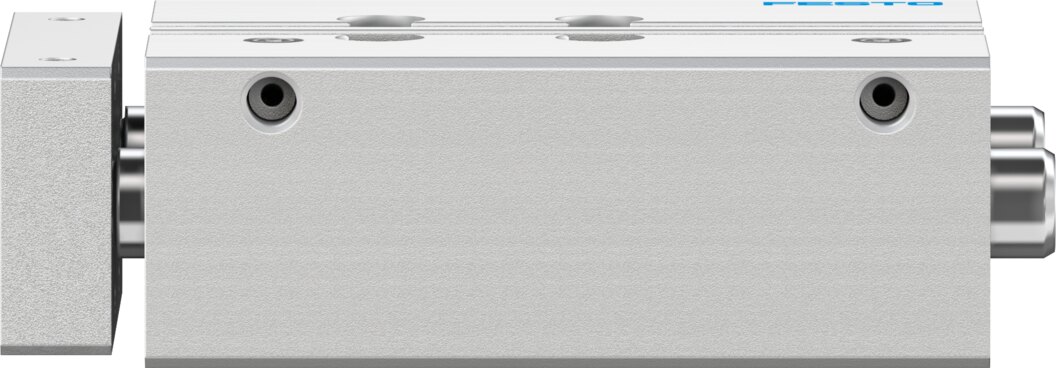

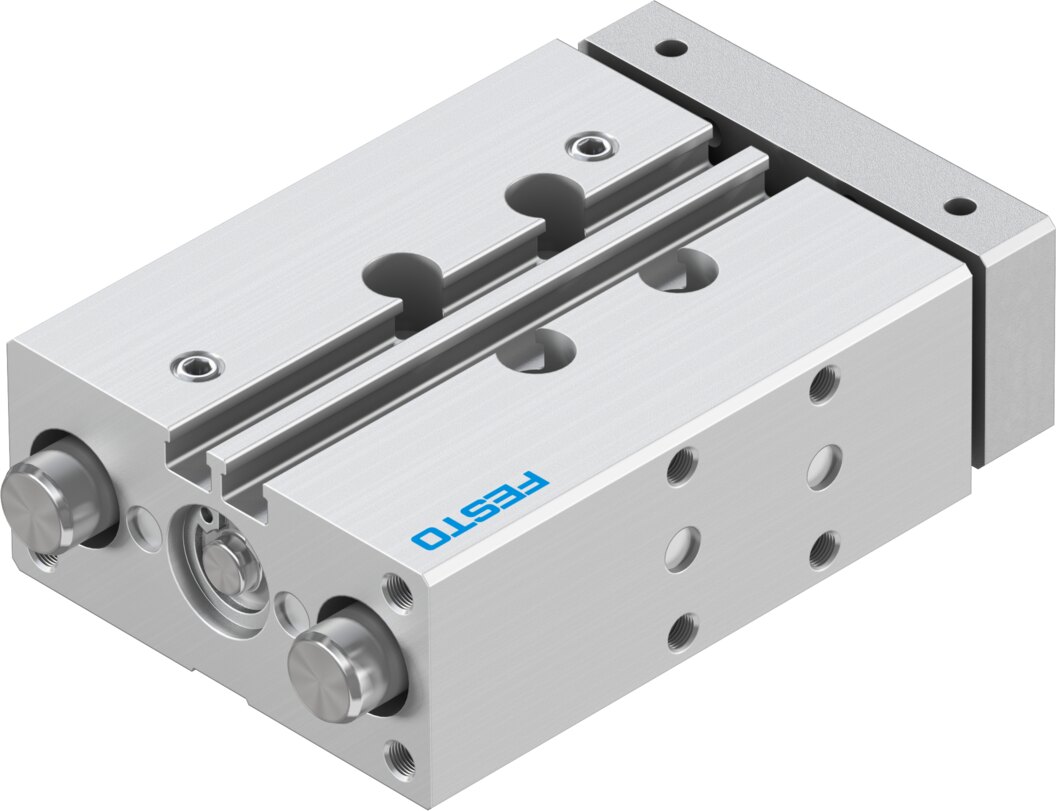

Guided drive with plain-bearing guide Ø 12 mm 40 mm stroke DFM-12-40-P-A-GF-F1A - Festo 8118627
With 40 mm stroke and a 12 mm piston, the DFM-12-40-P-A-GF-F1A guided drive handles lifting and pushing tasks on a plain-bearing guide. Theoretical force at 6 bar: 68 N advance, 51 N return. The guide takes transverse forces up to 240 N and Mx moments up to 4.92 Nm directly.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
At 6 bar the DFM-12-40-P-A-GF-F1A turns a theoretical 68 N into a guided linear motion over 40 mm, with a 12 mm piston.
Benefits
- Plain-bearing guide: guide rods in plain bearings, transverse force Fy up to 240 N
- Force: 68 N advance and 51 N return at 6 bar (theoretical)
- Moments: Mx up to 4.92 Nm, My/Mz up to 3.74 Nm
- Cleanroom and PWIS: class 6 to ISO 14644-1, PWIS-free to VDMA24364-B1/B2-L
- Cushioning: elastic cushioning rings at both ends, impact energy up to 0.07 J
- Battery production: reduced Cu/Zn/Ni content (F1a)
Applications
The DFM-12-40-P-A-GF-F1A suits lifting, stopping and pushing tasks in conveyor systems and fixture building. The DFM-12-40-P-A-GF-F1A runs on compressed air to ISO 8573-1:2010 [7:4:4] at -20 to 80 °C ambient temperature and can be mounted in any position. Documented for this 40 mm stroke version: cleanroom class 6 to ISO 14644-1 and reduced Cu/Zn/Ni content for lithium-ion battery production (F1a).
Technical data
| Type | DFM-12-40-P-A-GF-F1A |
|---|---|
| Festo part number | 8118627 |
| Load centre of gravity to yoke plate xs | 25 mm |
| Stroke | 40 mm |
| Piston diameter | 12 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | Any |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Variants | no copper, zinc or nickel as main constituent (exceptions: nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical connectors, coils) |
| Operating pressure | 2 to 10 bar |
| Maximum speed | 0.8 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for Li-ion battery production | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability (ISO 14644-14) | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20 to 80 °C |
| Impact energy in end positions | 0.07 J |
| Maximum force Fy | 240 N |
| Maximum force Fy static | 240 N |
| Maximum force Fz | 240 N |
| Maximum force Fz static | 240 N |
| Maximum moment Mx | 4.92 Nm |
| Maximum moment Mx static | 4.92 Nm |
| Maximum moment My | 3.74 Nm |
| Maximum moment My static | 3.74 Nm |
| Maximum moment Mz | 3.74 Nm |
| Maximum moment Mz static | 3.74 Nm |
| Maximum permissible torque Mx (stroke-dependent) | 0.81 Nm |
| Maximum effective load at distance xs (stroke-dependent) | 31 N |
| Theoretical force at 6 bar, return stroke | 51 N |
| Theoretical force at 6 bar, advance stroke | 68 N |
| Moving mass | 232 g |
| Product weight | 497 g |
| Alternative connections | See product drawing |
| Pneumatic connection | M5 |
| Note on materials | RoHS compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Weight | 0.49 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DFM-12-40-P-A-GF-F1A |
| EAN | 4052568556167 |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Ausführung | Gleitführung |
| Material | Aluminium |
| Thread | M5 |
| Piston Ø [mm] | 12 |
| Stroke [mm] | 40 |
| Seal material | NBR |
| Medium | Compressed air |
| Function | double-acting |
| Series | DFM |
| Bore (mm) | 12 |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
