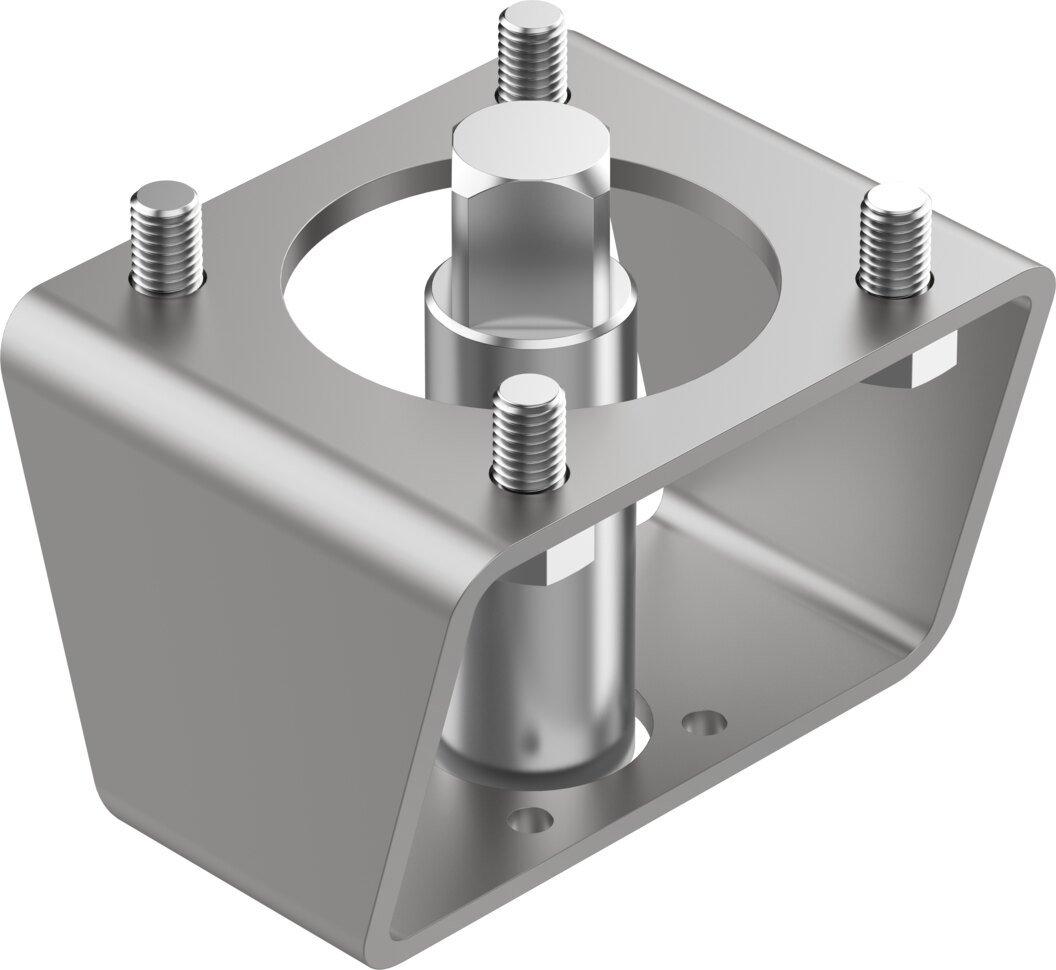

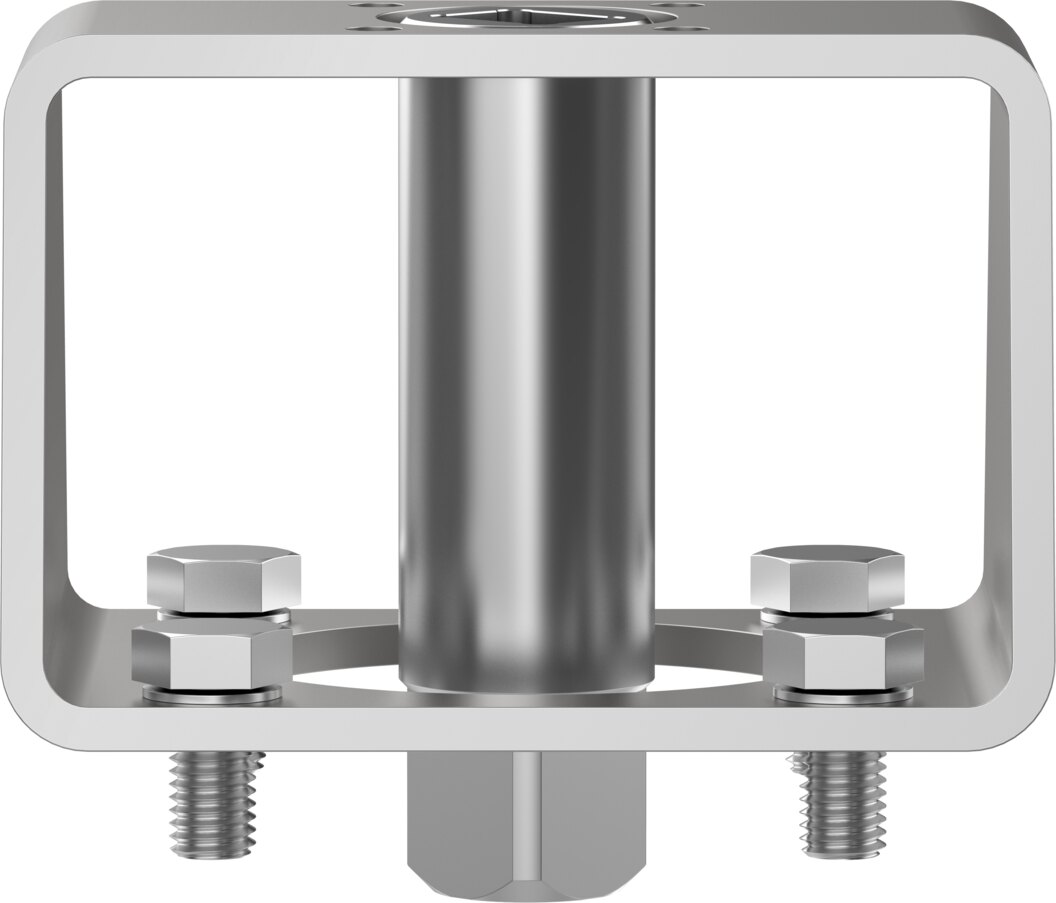

Actuator mounting kit hole pattern 10 to 07, SW22 to SW17 DARQ-K-Z-F10S22-F07S17-R13 - Festo 8085027

The actuator mounting kit DARQ-K-Z-F10S22-F07S17-R13 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. SW22 on the drive side meets SW17 on the reducing side. Hole patterns 10 and 07. Festo specifies steel as the material.

At a glance

• Drive outlet SW22 with hole pattern 10, reducing outlet SW17 with hole pattern 07
• Based on ISO 5211
• Material mounting bridge: steel
• Corrosion resistance class CRC 2 - moderate corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III

Use

A typical application is mounting quarter-turn actuators on ball valves and butterfly valves in water, chemical and process engineering.
