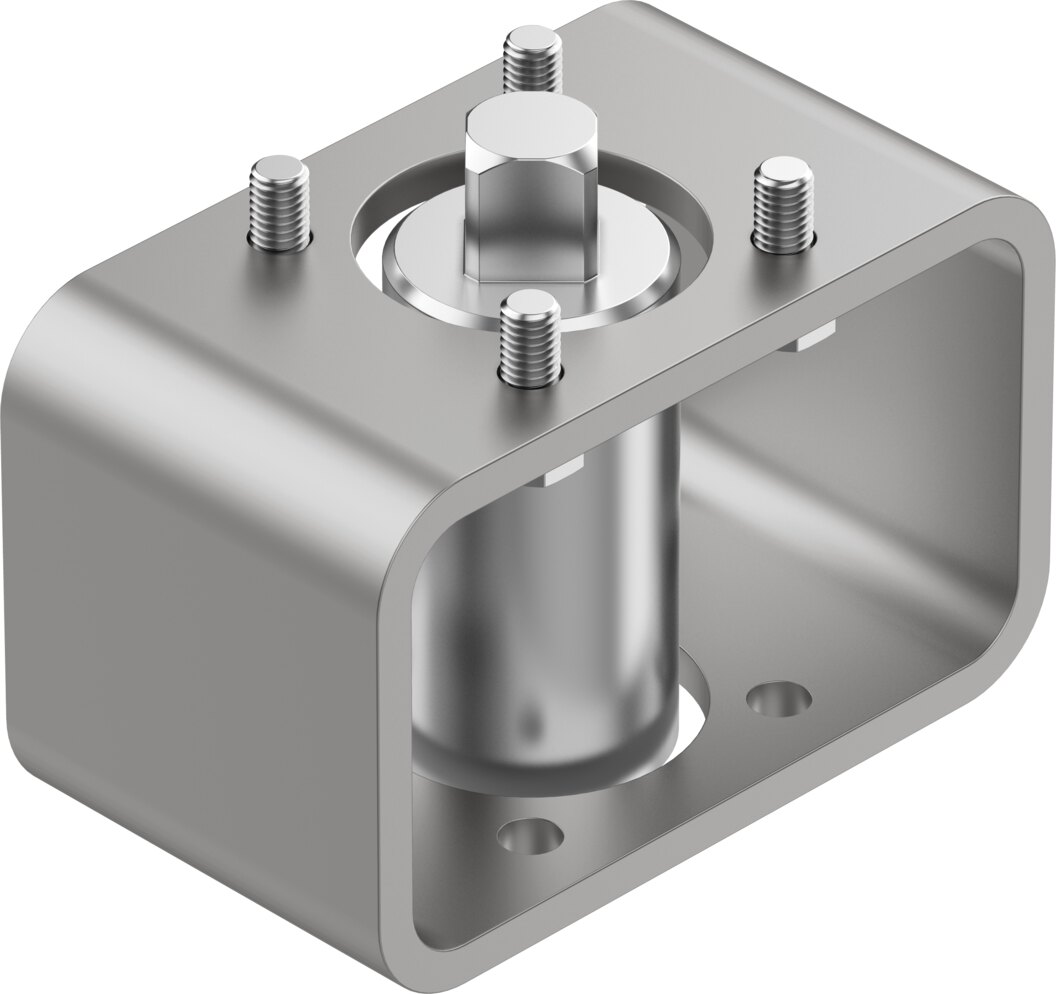

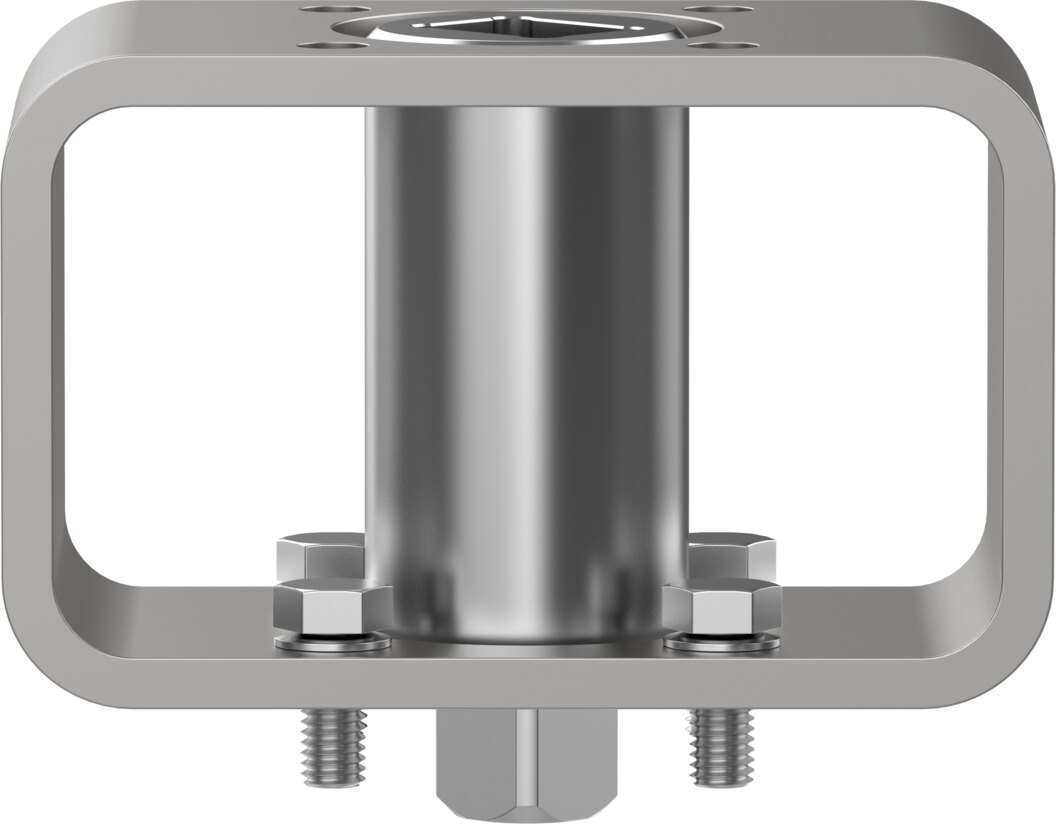

Actuator mounting kit hole pattern 04 to 04, SW11 to SW11 DARQ-K-Z-F04S11-F04S11-R13 - Festo 8085018

Festo ✓ Original product Brand new

The actuator mounting kit DARQ-K-Z-F04S11-F04S11-R13 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. On the drive side it has SW11, on the output side SW11. Hole patterns 04 and 04. Material: steel. Festo classifies the part as CRC 2 (moderate corrosion stress).

Net
€87.65
excl. VAT
Item FES-8085018
Manufacturer no. DARQ-K-Z-F04S11-F04S11-R13
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The actuator mounting kit DARQ-K-Z-F04S11-F04S11-R13 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. On the drive side it has SW11, on the output side SW11. Hole patterns 04 and 04. Material: steel.

Benefits

  • Drive outlet SW11 with hole pattern 04, reducing outlet SW11 with hole pattern 04
  • Based on ISO 5211
  • Material mounting bridge: steel
  • Corrosion resistance class CRC 2 - moderate corrosion stress
  • LABS (PWIS) conformity VDMA24364 zone III

Typical applications

Its field is process automation: the DARQ-K-Z-F04S11-F04S11-R13 links quarter-turn actuator and valve, for instance on ball and butterfly valves.

Technical data

Order typeDARQ-K-Z-F04S11-F04S11-R13
Festo part number8085018
Based on standardISO 5211
Size of pack1
Designtwo-flat socket and square drive, mounting kit
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Product weight465 g
Connection 1, functiondrive outlet
Connection 1, designSW11, hole pattern 04
Connection 2, functionreducing outlet
Connection 2, designSW11, hole pattern 04
Note on materialsRoHS compliant
Material couplinghigh-alloy stainless steel
Material mounting bridgesteel
Material dischigh-alloy stainless steel
Material screwshigh-alloy stainless steel
Customs tariff number84836080
Weight0.46 kg
ManufacturerFesto
Hersteller-NrDARQ-K-Z-F04S11-F04S11-R13
EAN4052568449834
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialSteel
SeriesDARQ
