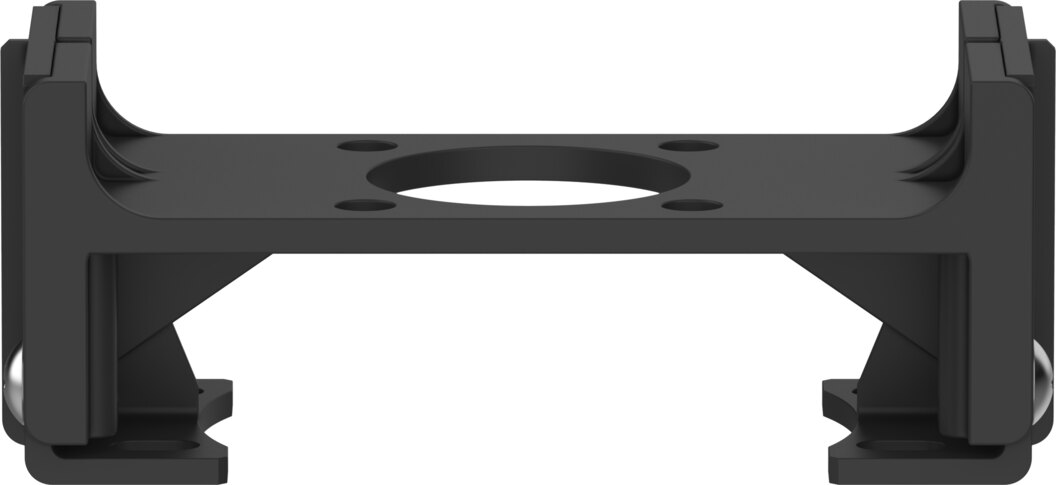

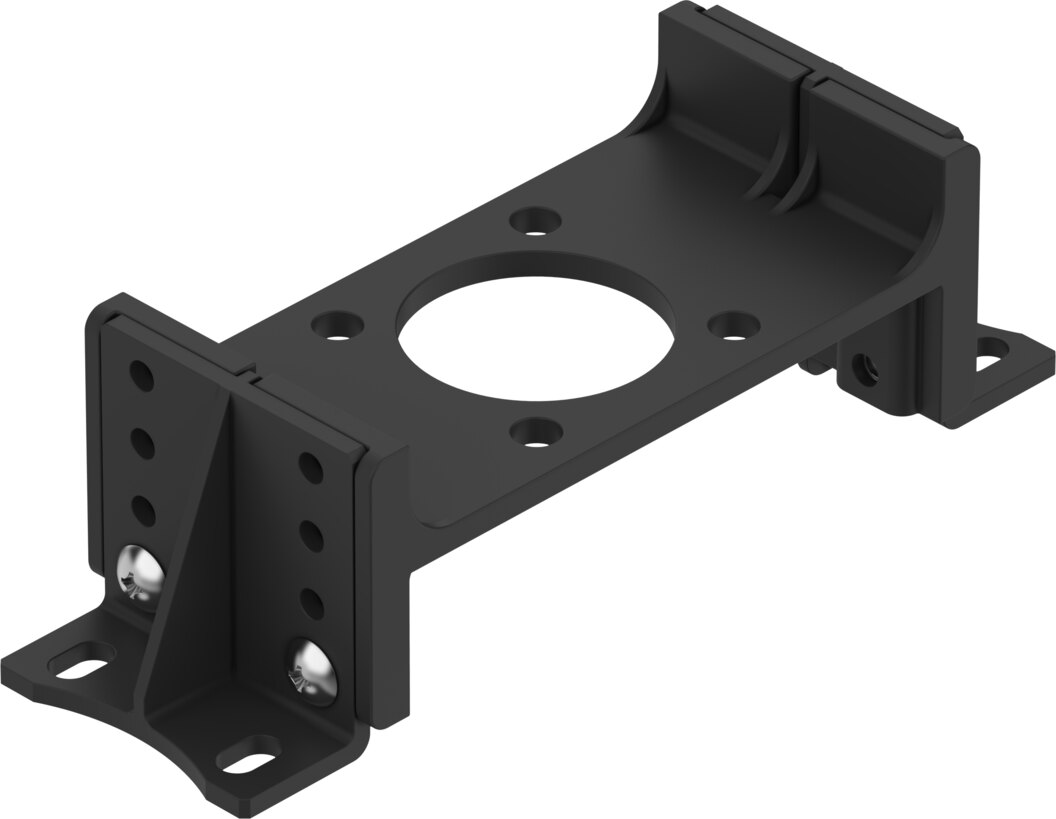

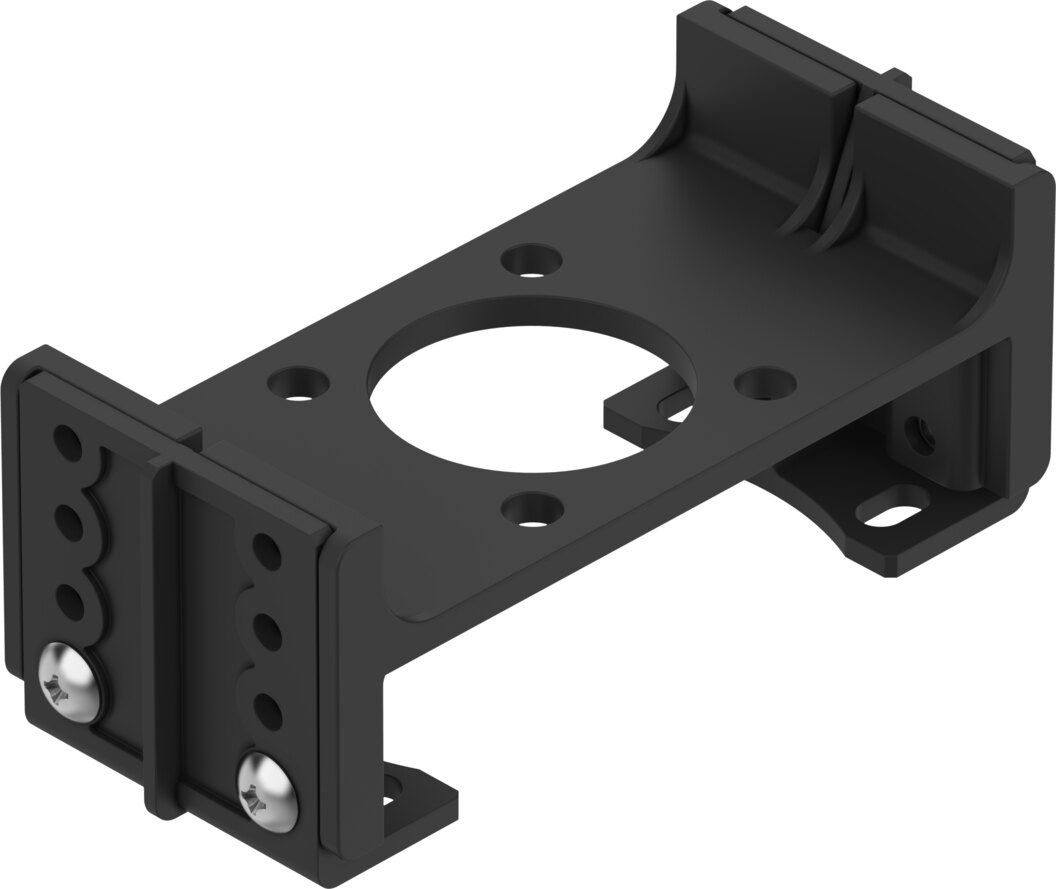

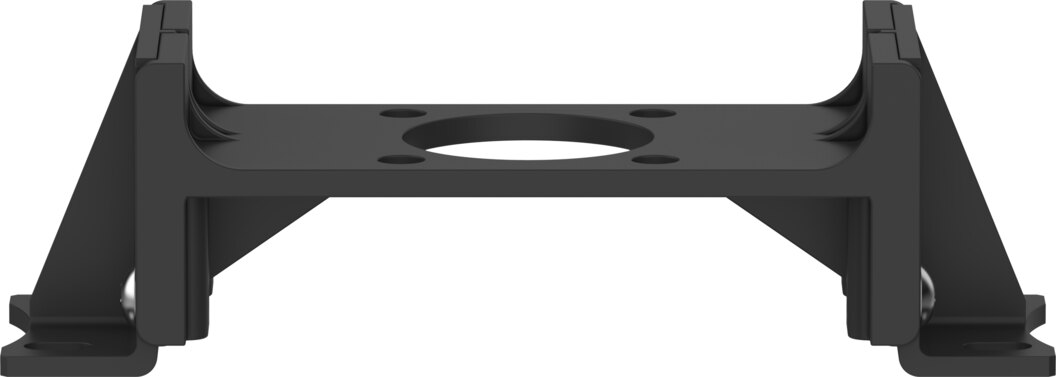

Mounting bridge in PA66, CRC 3 DARQ-K-X1-A3-F05-R15 - Festo 8183117

Name: Mounting bridge in PA66, CRC 3 DARQ-K-X1-A3-F05-R15 - Festo 8183117
Brand: Festo
SKU: FES-8183117
Price: 31.05 EUR
Availability: InStock

Festo ✓ Original product Brand new

The mounting bridge DARQ-K-X1-A3-F05-R15 is mounted on a flange according to ISO 5211. Material mounting bridge according to Festo: PA66, electrically conductive. Festo classifies the part as CRC 3 (high corrosion stress). Usable at -20 to 70 °C ambient temperature. Product weight 100 g.

Net

€31.05

excl. VAT

Item FES-8183117

Manufacturer no. DARQ-K-X1-A3-F05-R15

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Key benefits

Based on ISO 5211, VDI/VDE 3845 (NAMUR)
Material mounting bridge: PA66, electrically conductive
Corrosion resistance class CRC 3 - high corrosion stress
Ambient temperature -20 to 70 °C
LABS (PWIS) conformity VDMA24364 zone III

Use

The DARQ-K-X1-A3-F05-R15 is used when mounting quarter-turn actuators on process valves such as ball valves and butterfly valves.

Technical data

Order type	DARQ-K-X1-A3-F05-R15
Festo part number	8183117
Mounting position	any
Conforms to standard	ISO 5211, VDI/VDE 3845 (NAMUR)
Design	mounting bridge
Connection point for positioner and position sensor conforms to standard	VDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3
Corrosion resistance class CRC	3 - high corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-20 to 50 °C
Ambient temperature	-20 to 70 °C
Product weight	100 g
Type of mounting	on flange according to ISO 5211
Note on materials	RoHS compliant
Material mounting bracket	PA66, electrically conductive
Material mounting bridge	PA66, electrically conductive
Material nut	high-alloy stainless steel
Material disc	high-alloy stainless steel
Material screws	stainless steel
Customs tariff number	39269097
Weight	0.1 kg
Manufacturer	Festo
Hersteller-Nr	DARQ-K-X1-A3-F05-R15
EAN	4052568786618
Zolltarifnummer	39269097
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Series	DARQ
Temperaturbereich	-20-70 °C
Temperature (max.)	70
