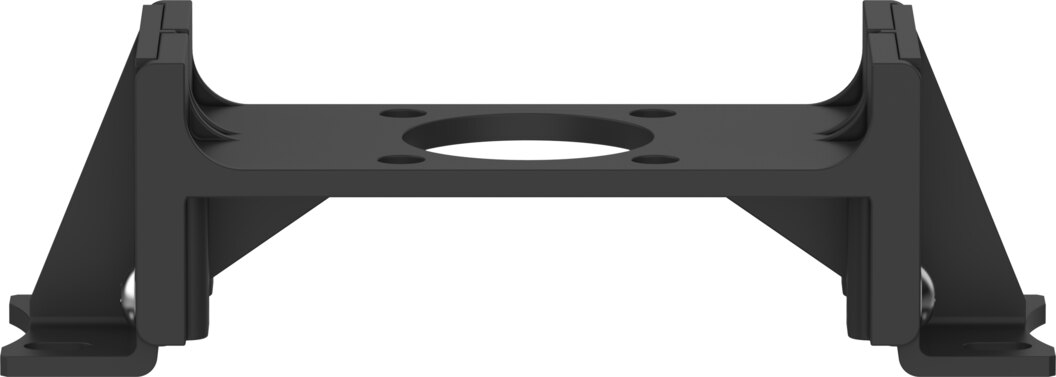

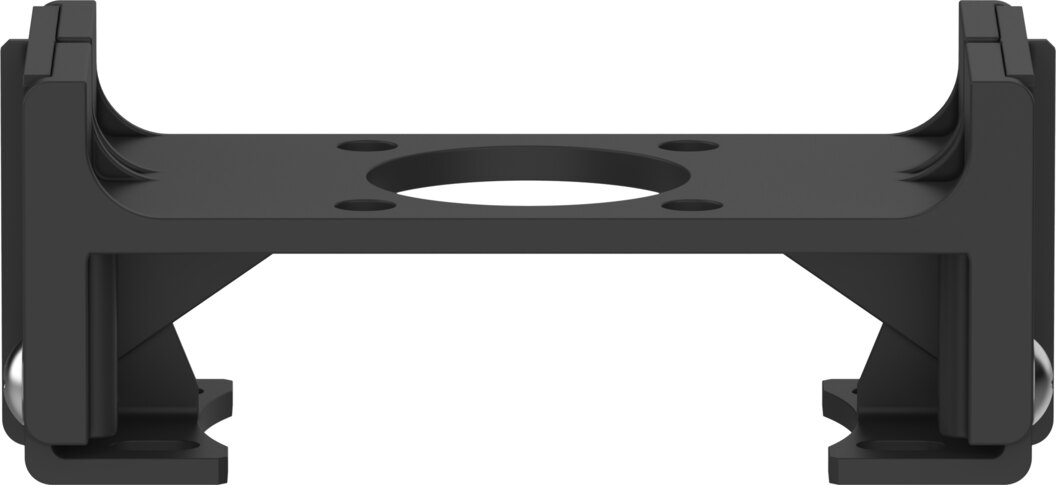

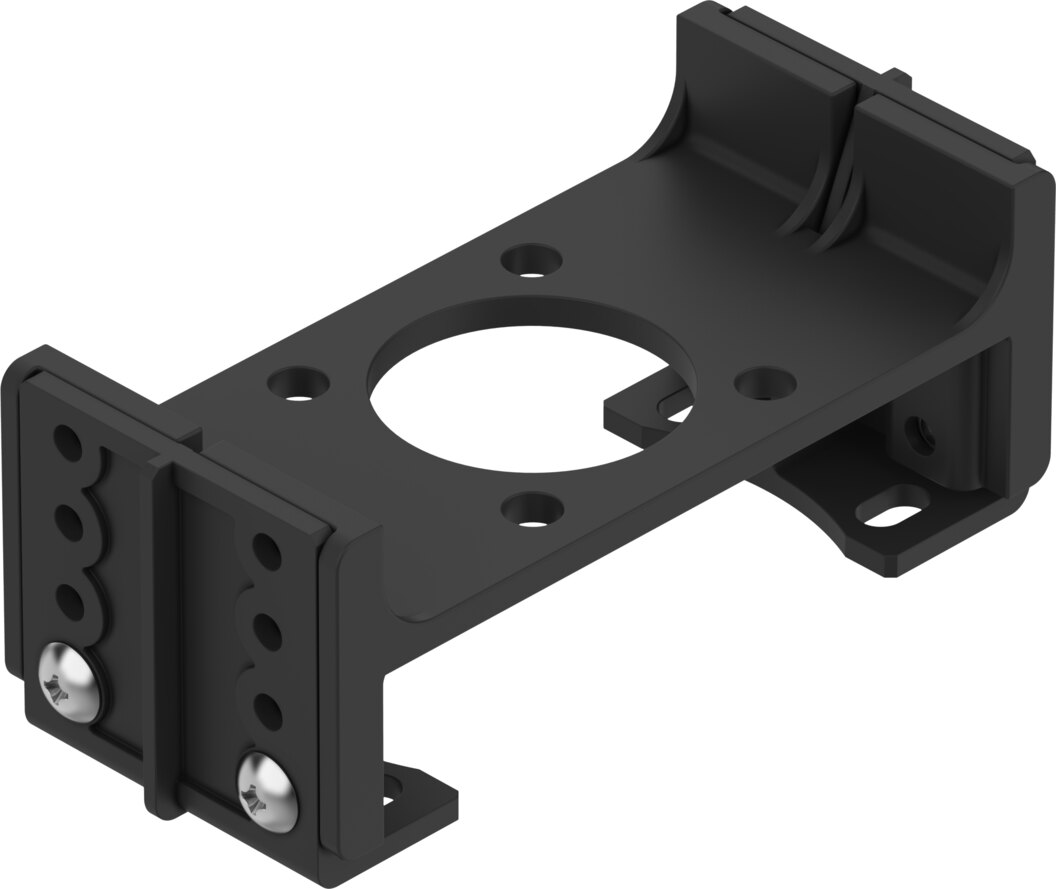

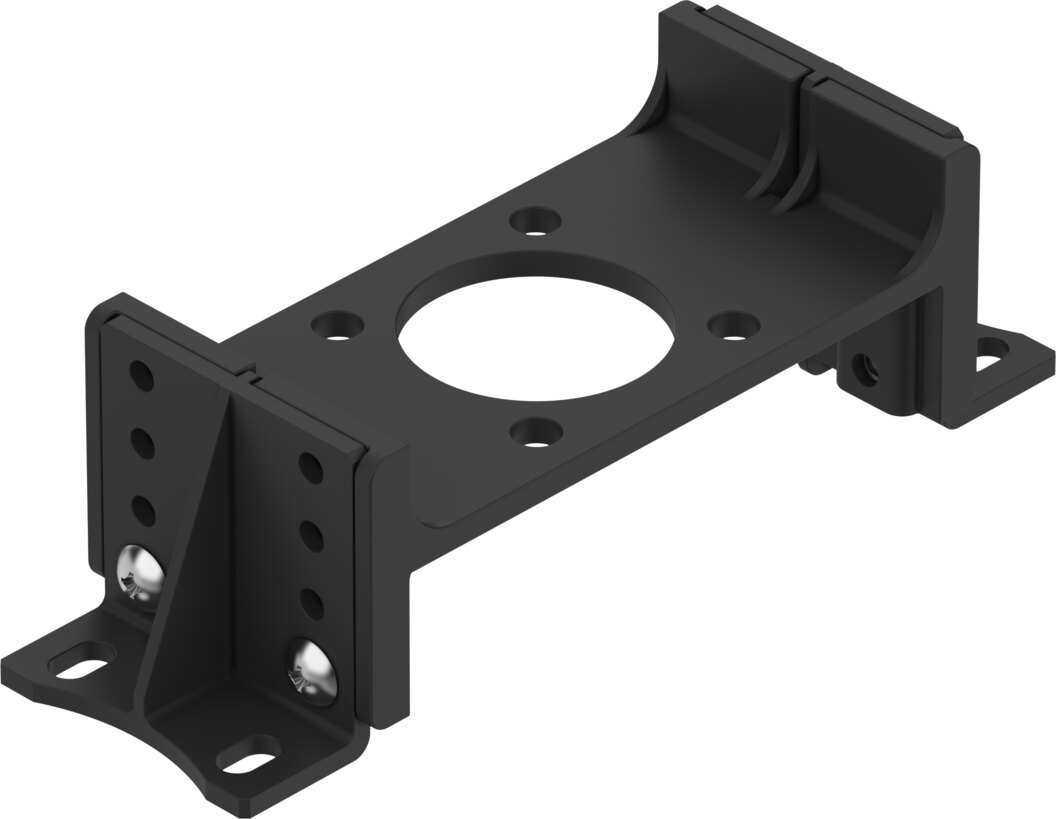

Mounting bridge in PA, CRC 3 DARQ-K-X1-A3-F05-R14 - Festo 8183116

Name: Mounting bridge in PA, CRC 3 DARQ-K-X1-A3-F05-R14 - Festo 8183116
Brand: Festo
SKU: FES-8183116
Price: 27.05 EUR
Availability: InStock

Festo ✓ Original product Brand new

The mounting bridge DARQ-K-X1-A3-F05-R14 is mounted on a flange according to ISO 5211. Material: PA. Corrosion resistance class CRC 3 - high corrosion stress. Usable at -20 to 70 °C ambient temperature. Product weight 100 g. Note on materials: RoHS compliant. It can be installed in any position.

Net

€27.05

excl. VAT

Item FES-8183116

Manufacturer no. DARQ-K-X1-A3-F05-R14

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The mounting bridge DARQ-K-X1-A3-F05-R14 is mounted on a flange according to ISO 5211. Material: PA. Corrosion resistance class CRC 3 - high corrosion stress.

Key benefits

Based on ISO 5211, VDI/VDE 3845 (NAMUR)
Material mounting bridge: PA
Corrosion resistance class CRC 3 - high corrosion stress
Ambient temperature -20 to 70 °C
LABS (PWIS) conformity VDMA24364 zone III

Application

Its field is process automation: the DARQ-K-X1-A3-F05-R14 links quarter-turn actuator and valve, for instance on ball and butterfly valves.

Technical data

Order type	DARQ-K-X1-A3-F05-R14
Festo part number	8183116
Mounting position	any
Conforms to standard	ISO 5211, VDI/VDE 3845 (NAMUR)
Design	mounting bridge
Connection point for positioner and position sensor conforms to standard	VDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3
Corrosion resistance class CRC	3 - high corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III
Storage temperature	-20 to 50 °C
Ambient temperature	-20 to 70 °C
Product weight	100 g
Type of mounting	on flange according to ISO 5211
Note on materials	RoHS compliant
Material mounting bridge	PA
Material nut	high-alloy stainless steel
Material disc	high-alloy stainless steel
Material screws	stainless steel
Customs tariff number	39269097
Weight	0.115 kg
Manufacturer	Festo
Hersteller-Nr	DARQ-K-X1-A3-F05-R14
EAN	4052568622961
Zolltarifnummer	39269097
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Material	PA
Series	DARQ
Temperaturbereich	-20-70 °C
Temperature (max.)	70
