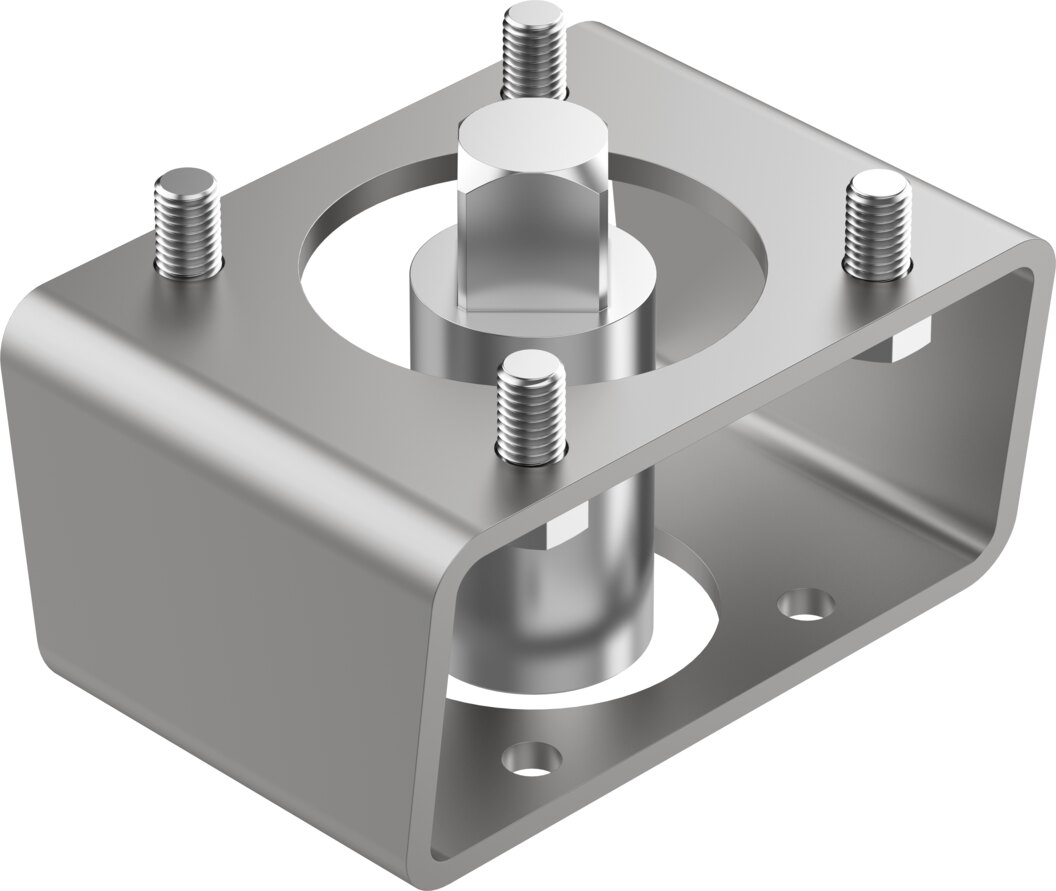

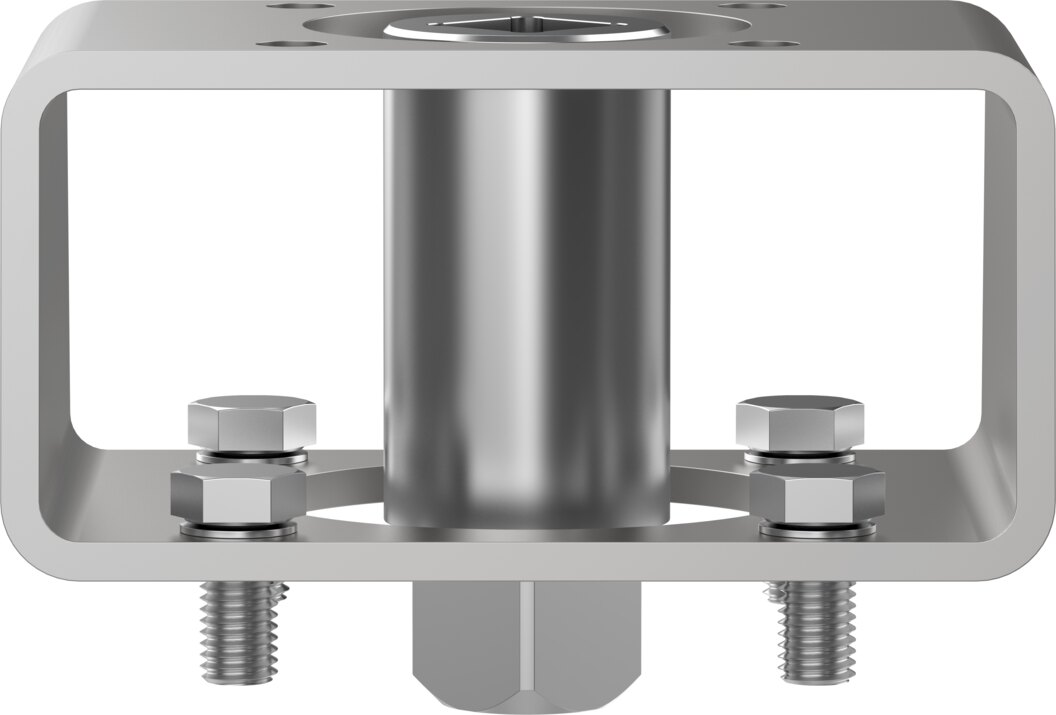

Actuator mounting kit hole pattern 12 to 10, SW27 to SW22 DARQ-K-V-F12S27-F10S22-R13 - Festo 8084202

The actuator mounting kit DARQ-K-V-F12S27-F10S22-R13 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. On the drive side it has SW27, on the output side SW22. Hole patterns 12 and 10. Material mounting bridge according to Festo: steel.

Key benefits

• Drive outlet SW27 with hole pattern 12, reducing outlet SW22 with hole pattern 10
• Based on ISO 5211
• Material mounting bridge: steel
• Corrosion resistance class CRC 2 - moderate corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III

Typical applications

The DARQ-K-V-F12S27-F10S22-R13 is used when mounting quarter-turn actuators on process valves such as ball valves and butterfly valves.
