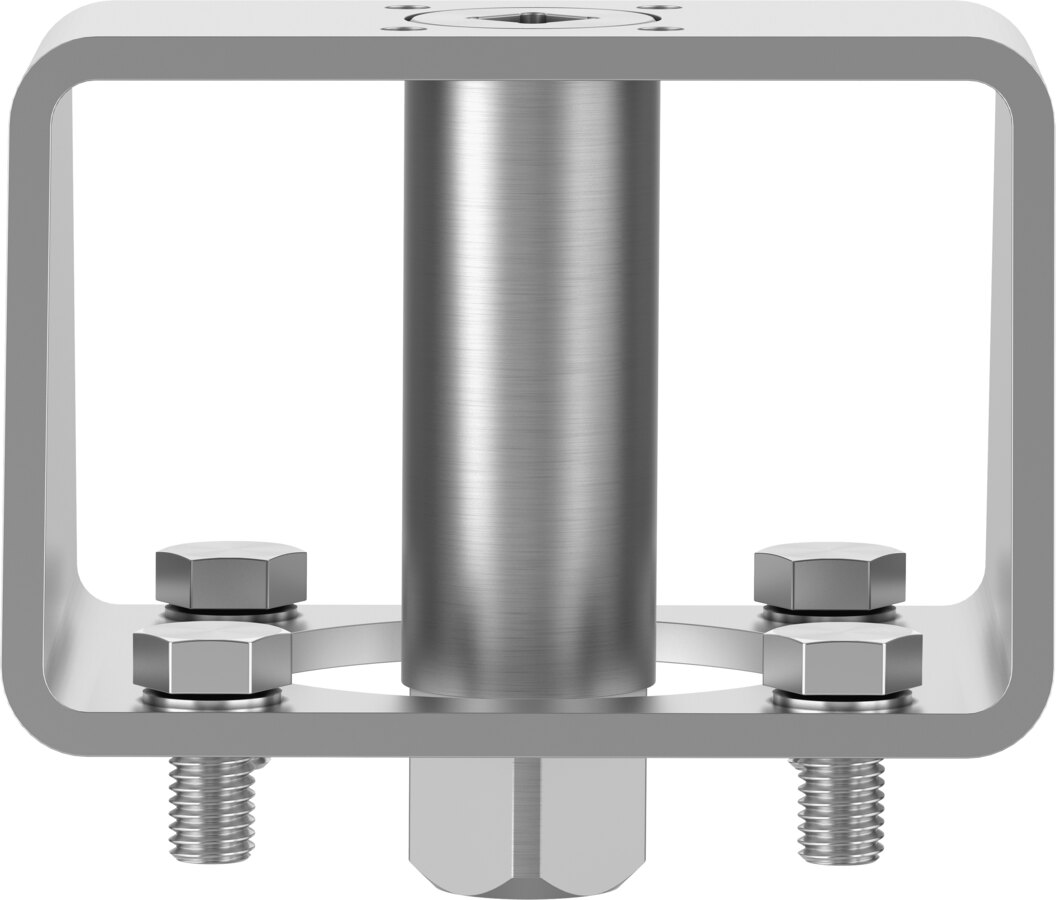

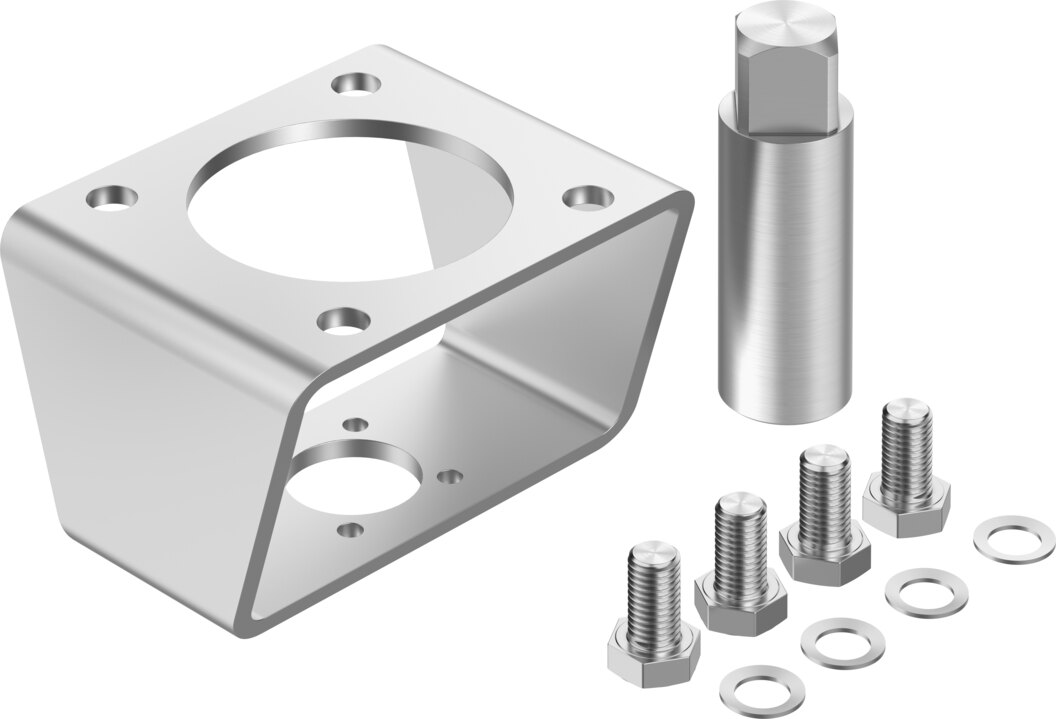

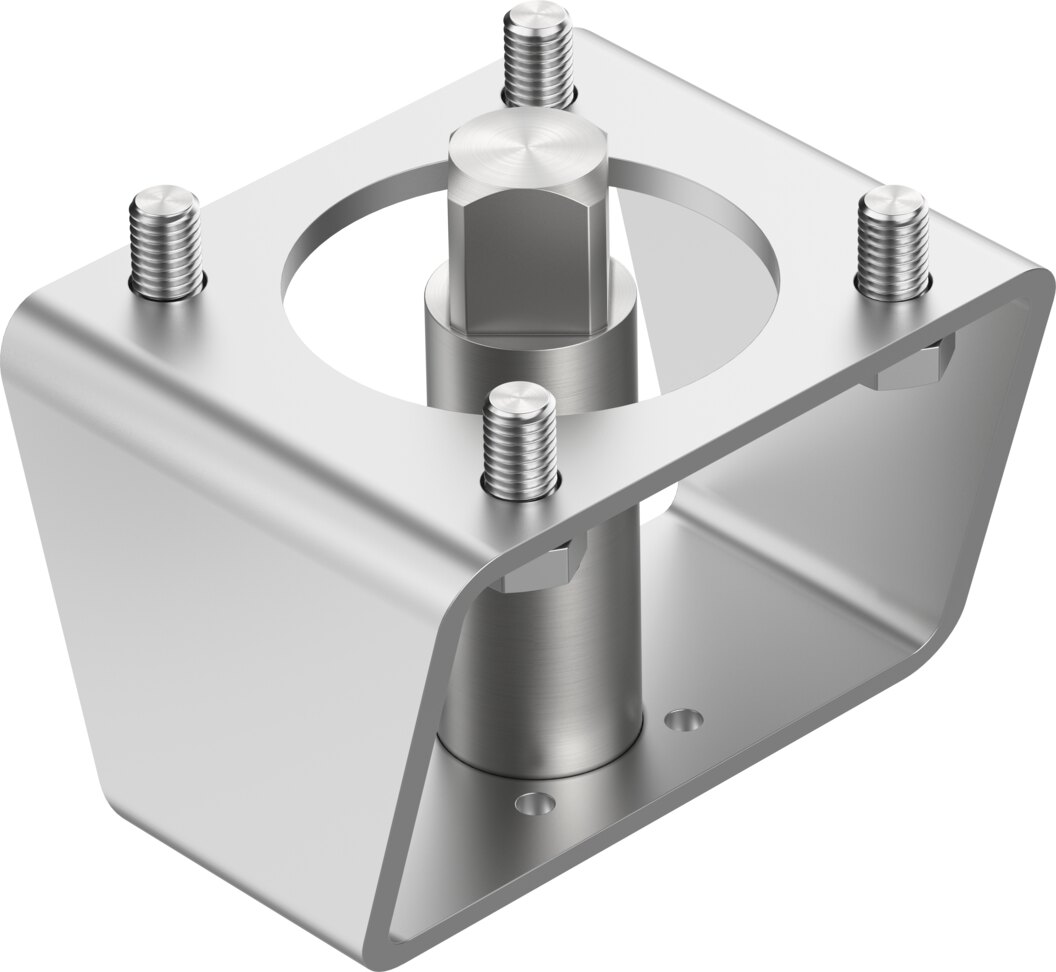

Actuator mounting kit hole pattern 12 to 07, SW27 to SW14 DARQ-K-V-F12S27-F07S14-R13 - Festo 8131545
The actuator mounting kit DARQ-K-V-F12S27-F07S14-R13 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. SW27 on the drive side meets SW14 on the reducing side. Hole patterns 12 and 07. Material mounting bridge according to Festo: steel. Product weight 2655 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The actuator mounting kit DARQ-K-V-F12S27-F07S14-R13 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. SW27 on the drive side meets SW14 on the reducing side. Hole patterns 12 and 07. Material mounting bridge according to Festo: steel.
Key benefits
- Drive outlet SW27 with hole pattern 12, reducing outlet SW14 with hole pattern 07
- Based on ISO 5211
- Material mounting bridge: steel
- Corrosion resistance class CRC 2 - moderate corrosion stress
- LABS (PWIS) conformity VDMA24364 zone III
Use
Its field is process automation: the DARQ-K-V-F12S27-F07S14-R13 links quarter-turn actuator and valve, for instance on ball and butterfly valves.
Technical data
| Order type | DARQ-K-V-F12S27-F07S14-R13 |
|---|---|
| Festo part number | 8131545 |
| Based on standard | ISO 5211 |
| Size of pack | 1 |
| Design | square socket and square drive, mounting kit |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Product weight | 2655 g |
| Connection 1, function | drive outlet |
| Connection 1, design | SW27, hole pattern 12 |
| Connection 2, function | reducing outlet |
| Connection 2, design | SW14, hole pattern 07 |
| Note on materials | RoHS compliant |
| Material coupling | high-alloy stainless steel |
| Material mounting bridge | steel |
| Material disc | high-alloy stainless steel |
| Material screws | high-alloy stainless steel |
| Customs tariff number | 84836080 |
| Weight | 2.6 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DARQ-K-V-F12S27-F07S14-R13 |
| EAN | 4052568555900 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Steel |
| Series | DARQ |
