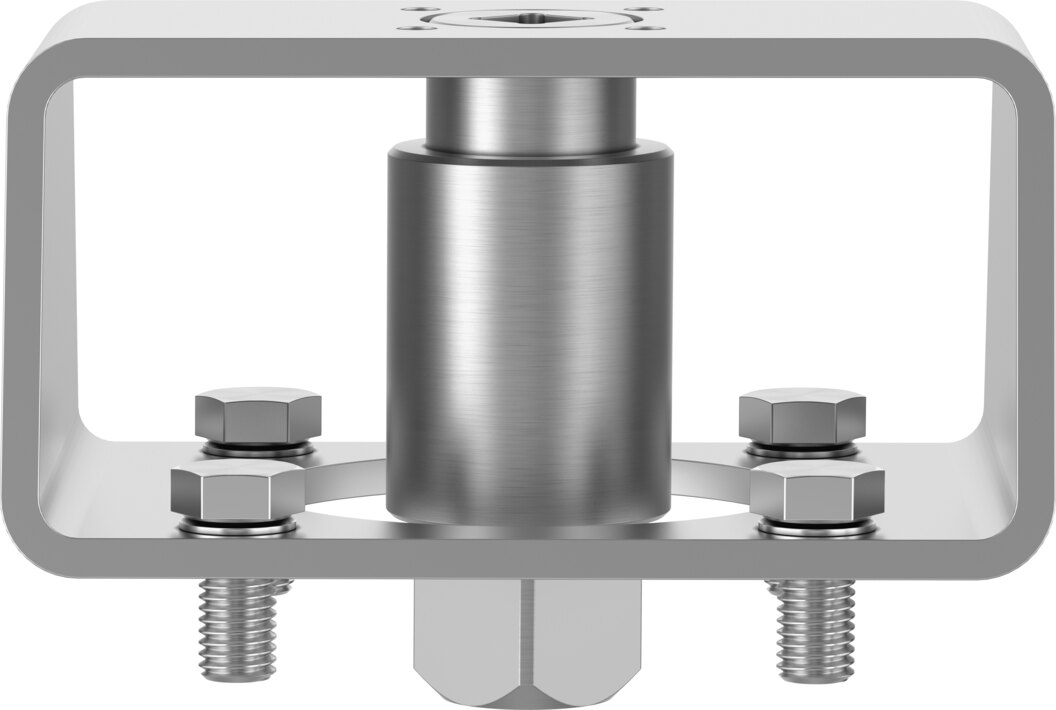

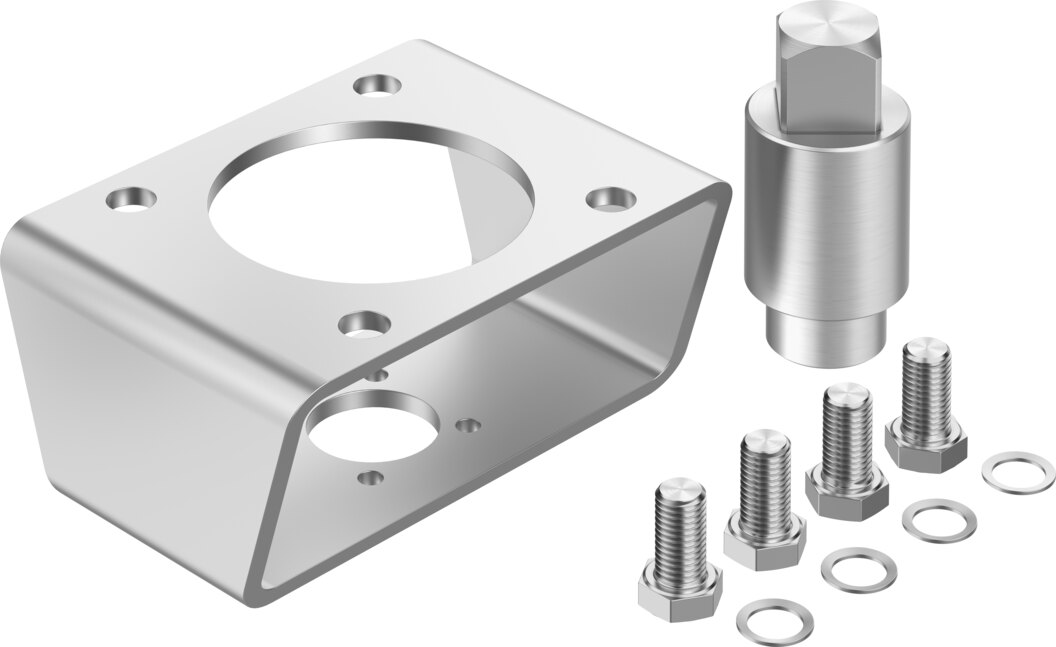

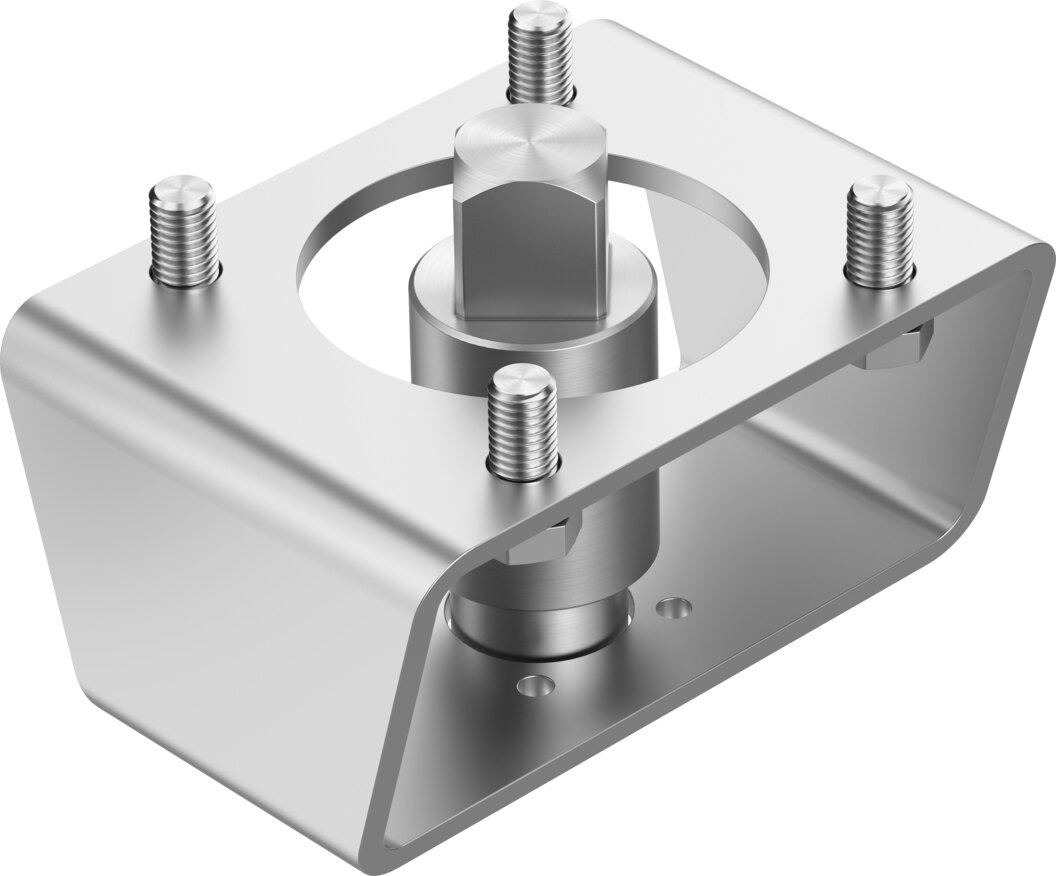

Actuator mounting kit hole pattern 12 to 05, SW27 to SW14 DARQ-K-V-F12S27-F05S14-R13 - Festo 8133486

The actuator mounting kit DARQ-K-V-F12S27-F05S14-R13 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. Connections: SW27 at the drive outlet, SW14 at the reducing outlet. Hole patterns 12 and 05. Material mounting bridge according to Festo: steel.

At a glance

• Drive outlet SW27 with hole pattern 12, reducing outlet SW14 with hole pattern 05
• Based on ISO 5211
• Material mounting bridge: steel
• Corrosion resistance class CRC 2 - moderate corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III

Typical applications

Its field is process automation: the DARQ-K-V-F12S27-F05S14-R13 links quarter-turn actuator and valve, for instance on ball and butterfly valves.
