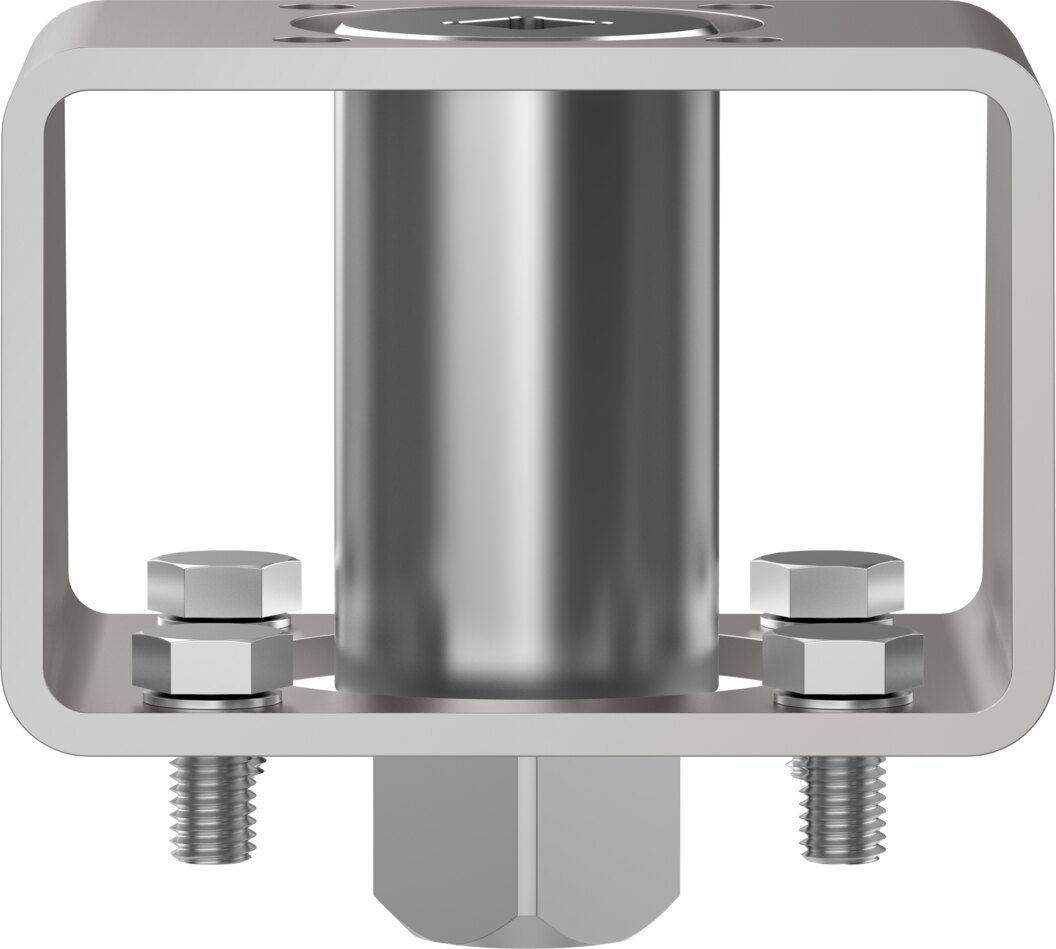

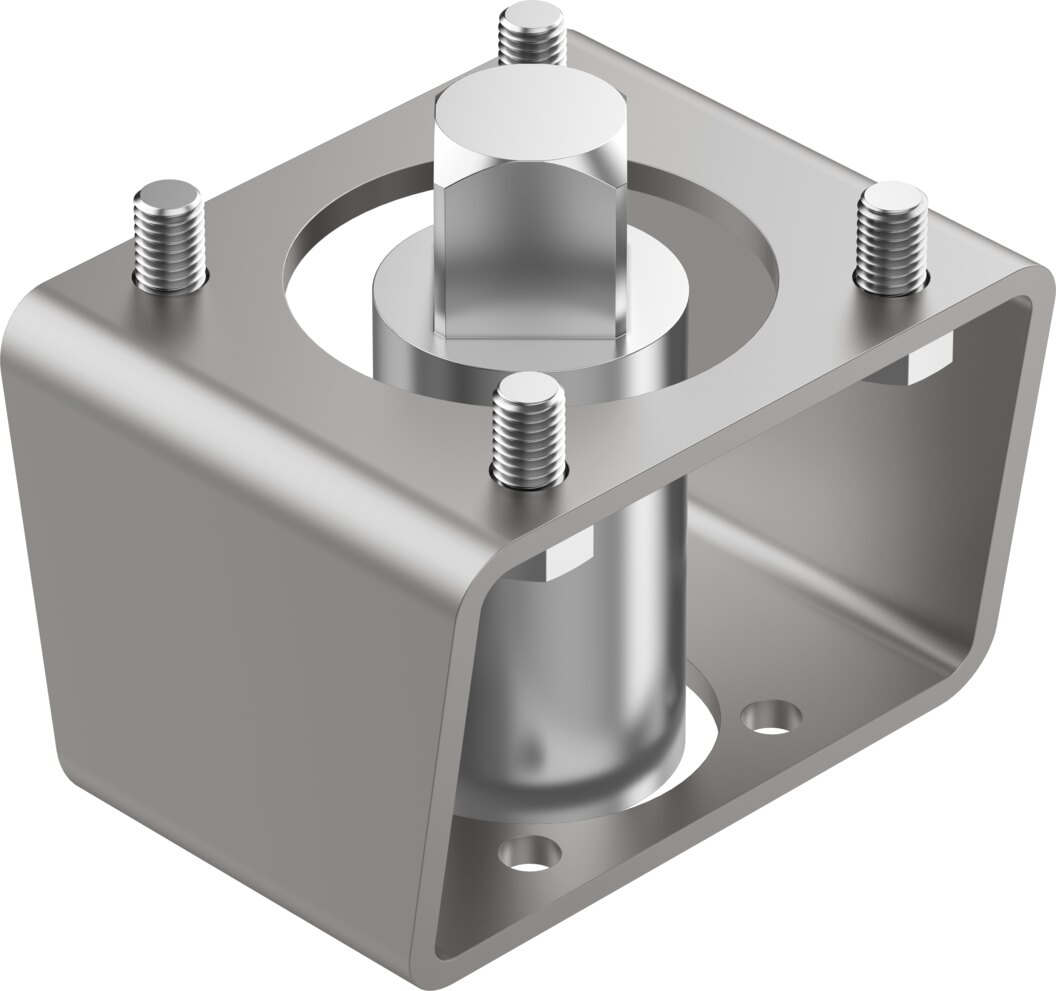

Actuator mounting kit hole pattern 10 to 07, SW27 to SW14 DARQ-K-V-F10S27-F07S14-R13 - Festo 8086439

The actuator mounting kit DARQ-K-V-F10S27-F07S14-R13 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. Connections: SW27 at the drive outlet, SW14 at the reducing outlet. Hole patterns 10 and 07. Material: steel.

Key benefits

• Drive outlet SW27 with hole pattern 10, reducing outlet SW14 with hole pattern 07
• Based on ISO 5211
• Material mounting bridge: steel
• Corrosion resistance class CRC 2 - moderate corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III

Typical applications

The DARQ-K-V-F10S27-F07S14-R13 is used when mounting quarter-turn actuators on process valves such as ball valves and butterfly valves.
