Actuator mounting kit hole pattern 07 to 04, SW17 to SW11 DARQ-K-V-F07S17-F04S11-R13 - Festo 8084192

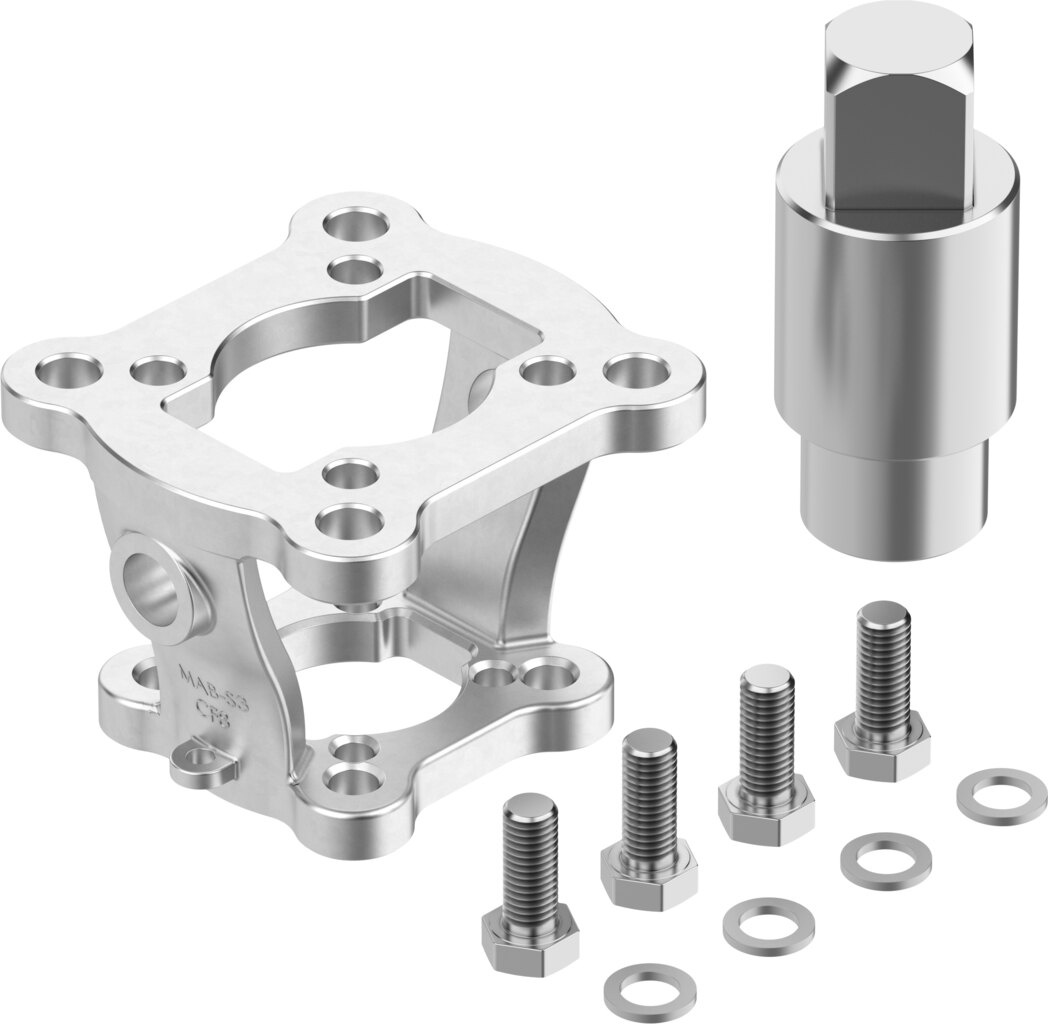

The actuator mounting kit DARQ-K-V-F07S17-F04S11-R13 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. Connections: SW17 at the drive outlet, SW11 at the reducing outlet. Hole patterns 07 and 04. Festo specifies steel as the material.

At a glance

• Drive outlet SW17 with hole pattern 07, reducing outlet SW11 with hole pattern 04
• Based on ISO 5211
• Material mounting bridge: steel
• Corrosion resistance class CRC 2 - moderate corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III

Use

The DARQ-K-V-F07S17-F04S11-R13 is used when mounting quarter-turn actuators on process valves such as ball valves and butterfly valves.
