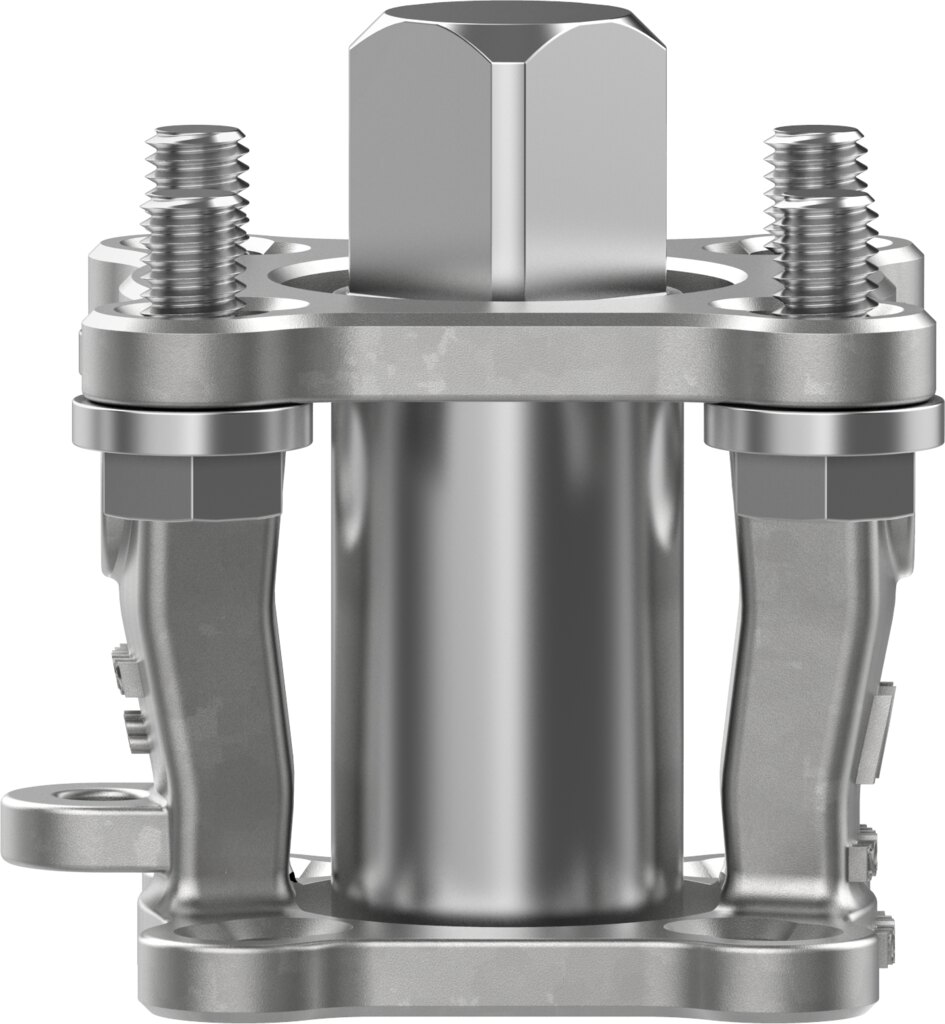

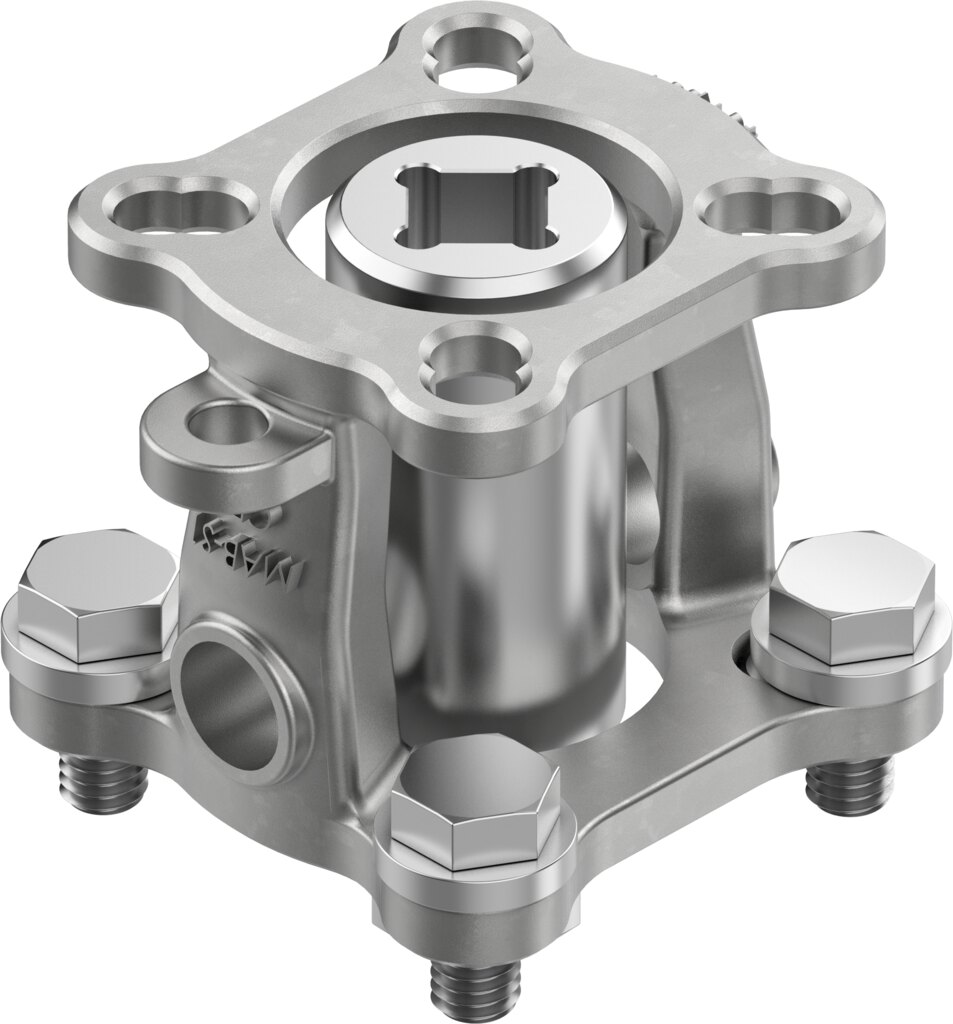

Actuator mounting kit hole pattern 05 to 03, SW14 to SW9 DARQ-K-V-F05S14-F03S9-R1 - Festo 8088301
The actuator mounting kit DARQ-K-V-F05S14-F03S9-R1 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. On the drive side it has SW14, on the output side SW9. Hole patterns 05 and 03. Material: high-alloy stainless steel. Corrosion class: CRC 2 (moderate corrosion stress).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The actuator mounting kit DARQ-K-V-F05S14-F03S9-R1 belongs to the Festo DARQ range for mounting quarter-turn actuators on valves. On the drive side it has SW14, on the output side SW9. Hole patterns 05 and 03. Material: high-alloy stainless steel.
Benefits
- Drive outlet SW14 with hole pattern 05, reducing outlet SW9 with hole pattern 03
- Based on ISO 5211
- Material mounting bridge: high-alloy stainless steel
- Corrosion resistance class CRC 2 - moderate corrosion stress
- LABS (PWIS) conformity VDMA24364-B2-L
Application
A typical application is mounting quarter-turn actuators on ball valves and butterfly valves in water, chemical and process engineering.
Technical data
| Order type | DARQ-K-V-F05S14-F03S9-R1 |
|---|---|
| Festo part number | 8088301 |
| Based on standard | ISO 5211 |
| Size of pack | 1 |
| Design | square socket and square drive, mounting kit |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Product weight | 255 g |
| Connection 1, function | drive outlet |
| Connection 1, design | SW14, hole pattern 05 |
| Connection 2, function | reducing outlet |
| Connection 2, design | SW9, hole pattern 03 |
| Note on materials | RoHS compliant |
| Material coupling | high-alloy stainless steel |
| Material mounting bridge | high-alloy stainless steel |
| Material disc | high-alloy stainless steel |
| Material screws | high-alloy stainless steel |
| Customs tariff number | 84836080 |
| Weight | 0.26 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DARQ-K-V-F05S14-F03S9-R1 |
| EAN | 4052568451660 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | DARQ |
