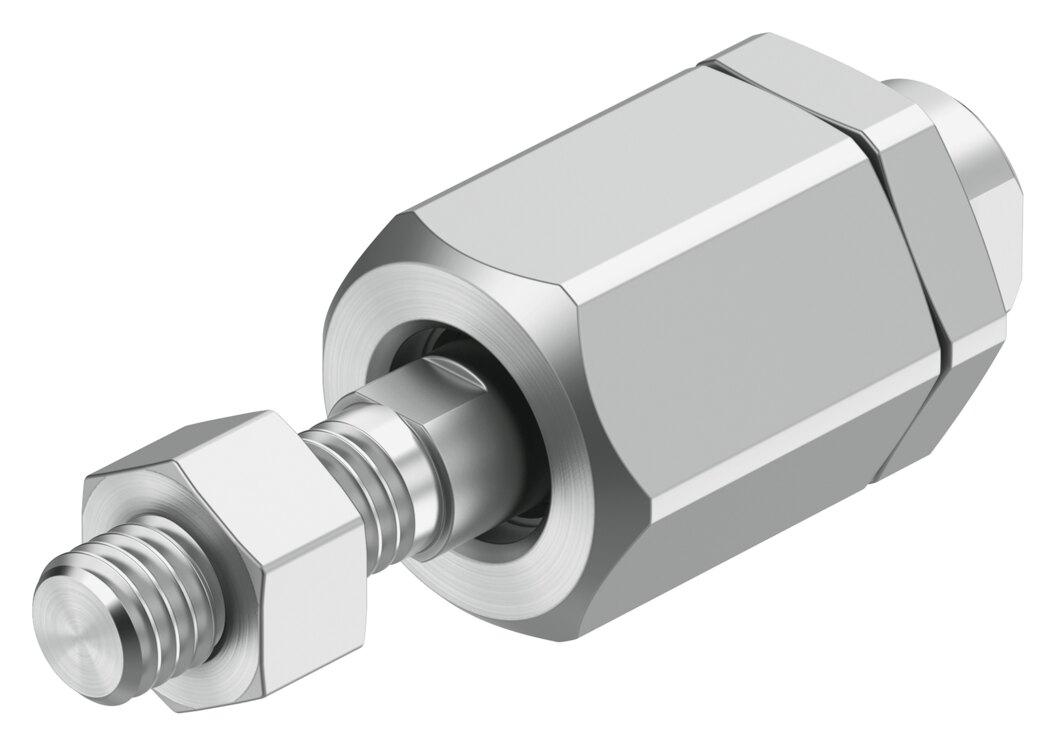

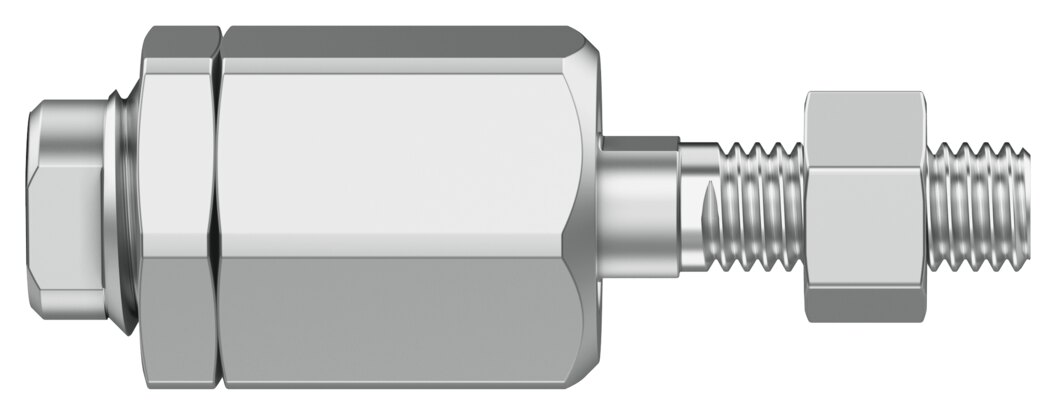

Self-aligning rod coupler size M5, in stainless steel DARP-M5-F - Festo 8170112
The self-aligning rod coupler DARP-M5-F compensates misalignment between the piston rod and the driven part. Size: M5. Material housing according to Festo: high-alloy stainless steel. Festo classifies the part as CRC 2 (moderate corrosion stress). Permissible ambient temperature: -40 to 150 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The self-aligning rod coupler DARP-M5-F compensates misalignment between the piston rod and the driven part. Size: M5. Material housing according to Festo: high-alloy stainless steel.
At a glance
- Material housing: high-alloy stainless steel
- Corrosion resistance class CRC 2 - moderate corrosion stress
- Ambient temperature -40 to 150 °C
- LABS (PWIS) conformity VDMA24364-B1/B2-L
- Cu/Zn/Ni content max. 5 % (exceptions according to Festo)
Use
The DARP-M5-F is useful wherever cylinder and guided load are not perfectly aligned, for instance on linear guides and lifting units.
Technical data
| Order type | DARP-M5-F |
|---|---|
| Festo part number | 8170112 |
| Size | M5 |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Cu/Zn/Ni content max. 5 % (exceptions according to Festo) |
| Ambient temperature | -40 to 150 °C |
| Product weight | 24 g |
| Note on materials | RoHS compliant |
| Material bushing | high-alloy stainless steel |
| Material housing | high-alloy stainless steel |
| Material spherical washer | case-hardened steel |
| Material ball stud | case-hardened steel |
| Material nut | high-alloy stainless steel |
| Customs tariff number | 84833080 |
| Weight | 0.022 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DARP-M5-F |
| EAN | 4052568616366 |
| Zolltarifnummer | 84833080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Temperaturbereich | -40-150 °C |
| Temperature (max.) | 150 |
