Flexo-Kupplung DARP-M16P-F - Festo 8170121

Images are examples, some edited with AI. The technical data are authoritative. AI notice

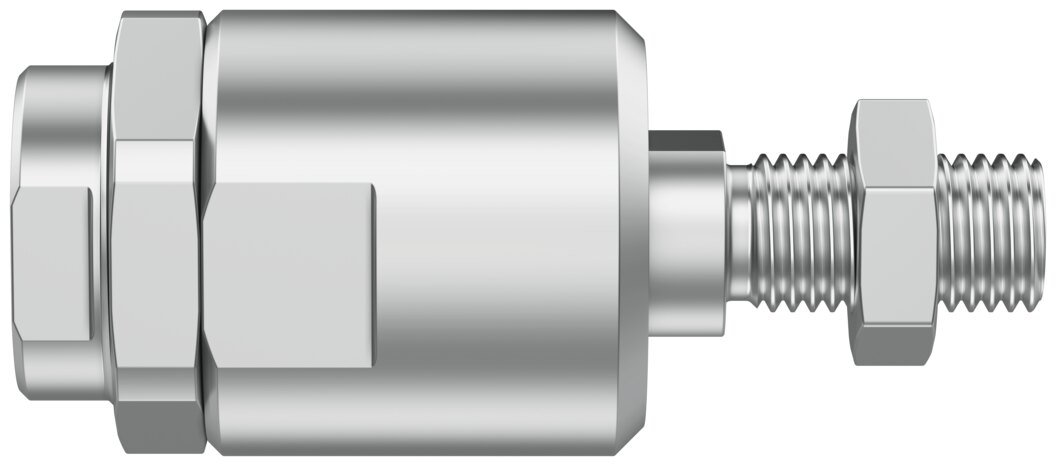

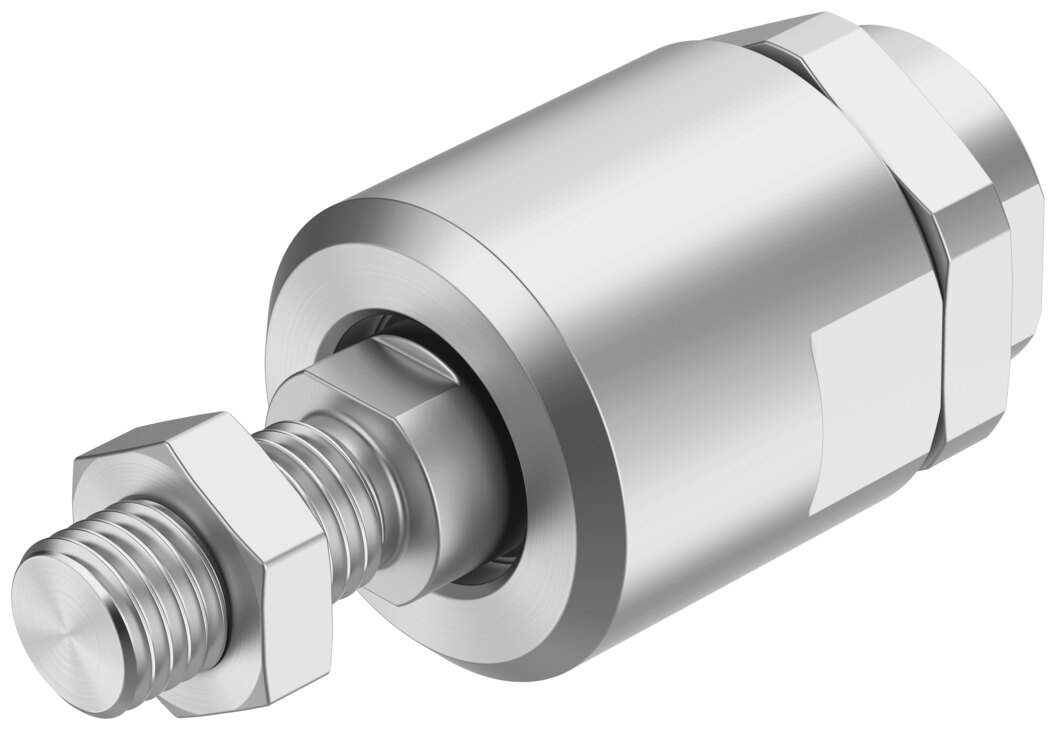

Self-aligning rod coupler size M16x1.5, in stainless steel DARP-M16P-F - Festo 8170121

Name: Self-aligning rod coupler size M16x1.5, in stainless steel DARP-M16P-F - Festo 8170121
Brand: Festo
SKU: FES-8170121
Price: 114.04 EUR
Availability: InStock

Festo ✓ Original product Brand new

The self-aligning rod coupler DARP-M16P-F compensates misalignment between the piston rod and the driven part. Size: M16x1.5. Material: high-alloy stainless steel. Festo classifies the part as CRC 2 (moderate corrosion stress). Usable at -40 to 150 °C ambient temperature. Product weight 712 g.

Net

€114.04

excl. VAT

Item FES-8170121

Manufacturer no. DARP-M16P-F

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The self-aligning rod coupler DARP-M16P-F compensates misalignment between the piston rod and the driven part. Size: M16x1.5. Material: high-alloy stainless steel.

Key benefits

Material housing: high-alloy stainless steel
Corrosion resistance class CRC 2 - moderate corrosion stress
Ambient temperature -40 to 150 °C
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cu/Zn/Ni content max. 5 % (exceptions according to Festo)

Use

The DARP-M16P-F sits between piston rod and load, typically on guided slides and lifting units with small axial offsets.

Technical data

Order type	DARP-M16P-F
Festo part number	8170121
Size	M16x1.5
Corrosion resistance class CRC	2 - moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries	Cu/Zn/Ni content max. 5 % (exceptions according to Festo)
Ambient temperature	-40 to 150 °C
Product weight	712 g
Note on materials	RoHS compliant
Material bushing	high-alloy stainless steel
Material housing	high-alloy stainless steel
Material spherical washer	case-hardened steel
Material ball stud	case-hardened steel
Material nut	high-alloy stainless steel
Customs tariff number	84833080
Weight	0.65 kg
Manufacturer	Festo
Hersteller-Nr	DARP-M16P-F
EAN	4052568616519
Zolltarifnummer	84833080
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Temperaturbereich	-40-150 °C
Temperature (max.)	150
