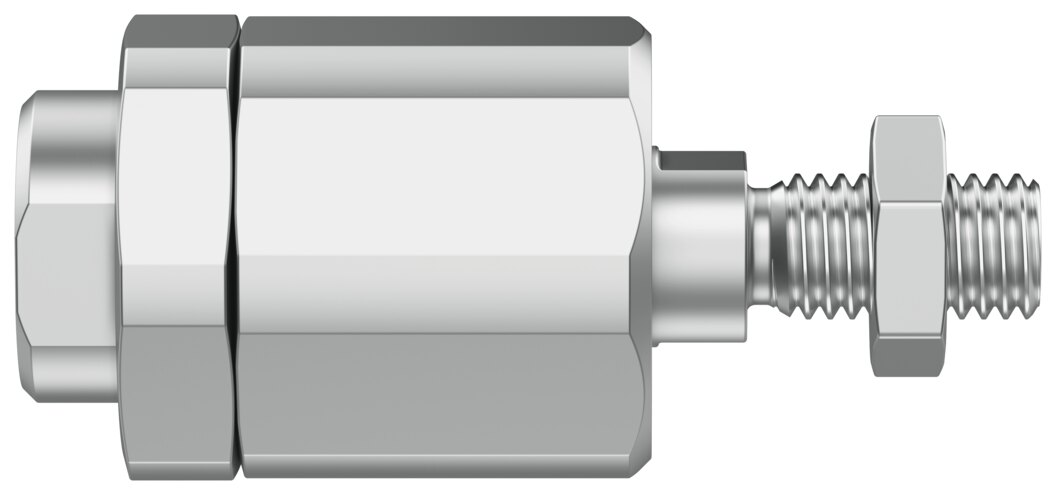

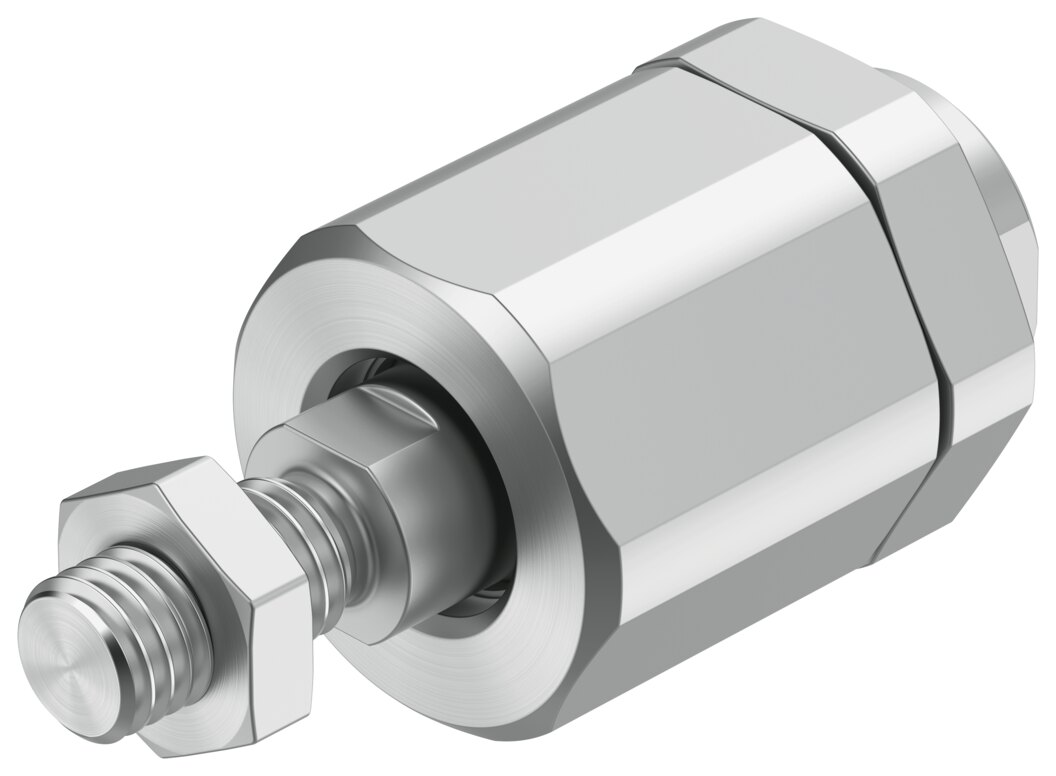

Self-aligning rod coupler DARP-M10P-F - Festo 8170119
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | M10x1.25 |
|---|---|
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Ambient temperature | -40 ... 150 °C |
| Product weight | 236 g |
| Note on materials | RoHS compliant |
| Material bushing | High-alloy stainless steel |
| Material housing | High-alloy stainless steel |
| Material spherical washer | Case-hardened steel |
| Material on ball stud | Case-hardened steel |
| Material nut | High-alloy stainless steel |
| Weight | 0.22 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DARP-M10P-F |
| EAN | 4052568616397 |
| Zolltarifnummer | 84833080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
