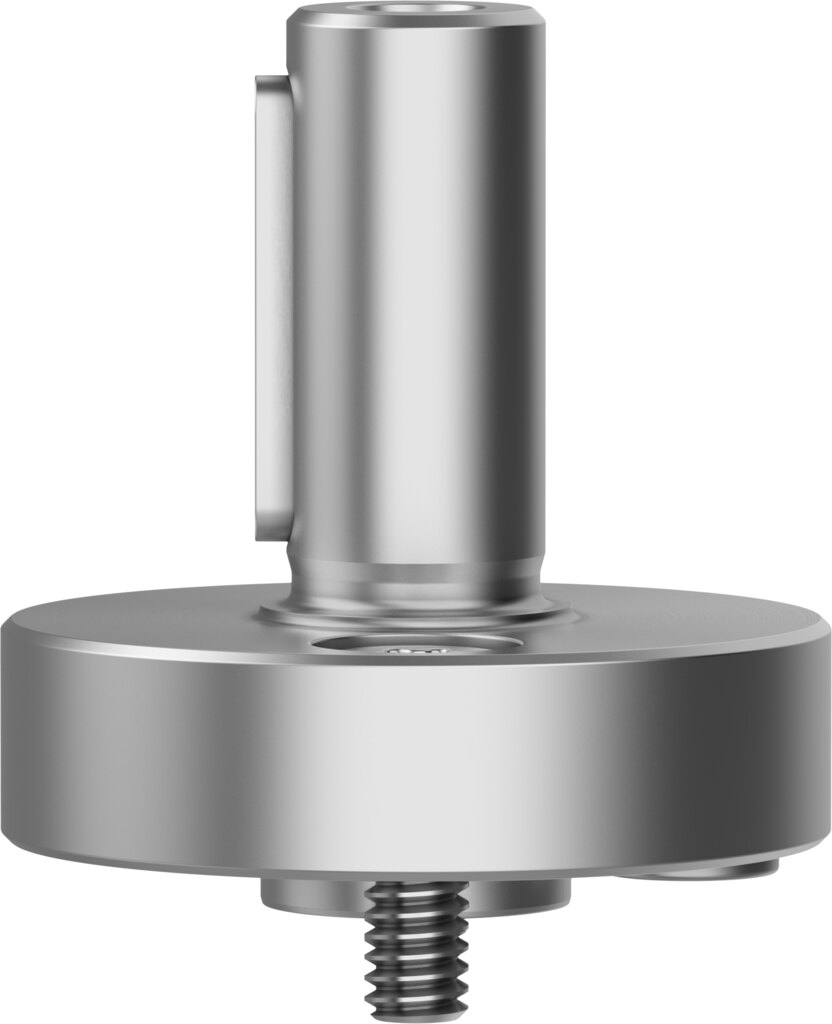

Drive shaft adapter size 16 for piston Ø 16 mm bending moment 4 Nm DARF-Q13-16 - Festo 8200998
The drive shaft adapter DARF-Q13-16 (size 16) gives the rotary drive an output journal for levers, couplings or drivers. It is rated for 4 Nm bending moment and 140 N axially. Mounting with through-hole and centring sleeve. Ambient temperature 0 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo drive shaft adapter DARF-Q13-16 in size 16 is attached to the rotary drive and provides the output shaft for attachments, for piston Ø 16 mm.
Why choose the DARF-Q13-16
- Size 16, for piston Ø 16 mm
- Max. bending moment 4 Nm, max. static axial load 140 N
- Mounting with through-hole and centring sleeve
- Drive shaft adapter made of quenched and tempered steel
- Usable at ambient temperatures of 0 to 60 °C
- Corrosion resistance class 1 - low corrosion stress
Application
The DARF-Q13-16 is used on semi-rotary and rotary drives whose output needs a journal instead of a flange.
Technical data
| Order type | DARF-Q13-16 |
|---|---|
| Festo part number | 8200998 |
| Size | 16 |
| Mounting position | any |
| For piston diameter | 16 mm |
| Design | drive shaft adapter |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| PWIS conformity (LABS) | VDMA24364-C1-L |
| Suitability for Li-ion battery production | suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability (measured to ISO 14644-14) | class 9 to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Ambient temperature | 0 to 60 °C |
| Max. bending moment | 4 Nm |
| Max. static axial load | 140 N |
| Product weight | 75 g |
| Type of mounting | with through-hole and centring sleeve |
| Note on materials | RoHS compliant |
| Material drive shaft adapter | quenched and tempered steel |
| Customs tariff number | 84839089 |
| Weight | 0.07 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DARF-Q13-16 |
| EAN | 4052568678449 |
| Zolltarifnummer | 84839089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Piston Ø [mm] | 16 |
| Series | DARF |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
