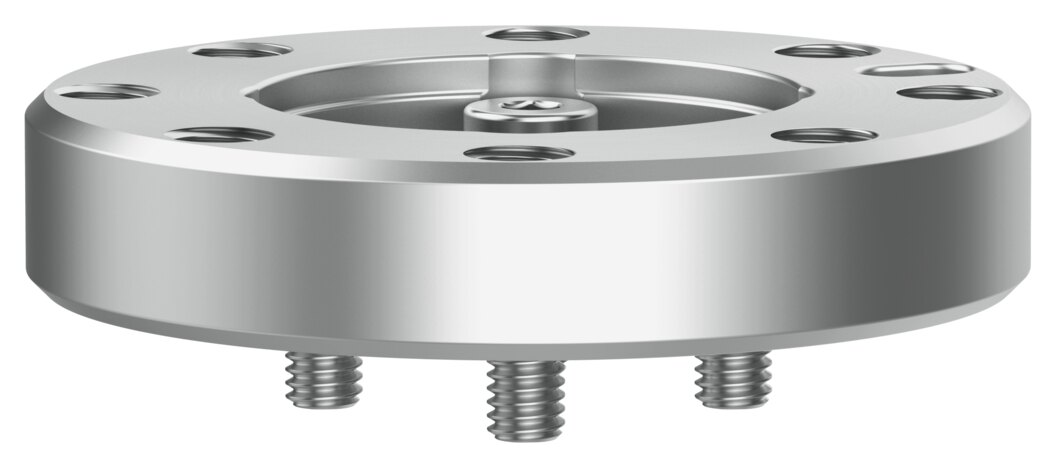

Push-on flange size 16 for rotary actuator DARF-Q13-16-1 - Festo 8163622
The push-on flange DARF-Q13-16-1 in size 16 provides a defined mounting surface for attachments on the drive. Flange made of wrought aluminium alloy, anodised, CRC 1 (low corrosion stress). Rated for 4 Nm bending moment and 140 N axially. Ambient temperature 0 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo push-on flange DARF-Q13-16-1 is fitted to the drive and carries the attachments, size 16, flange made of wrought aluminium alloy, anodised.
Benefits at a glance
- Size 16
- Max. bending moment 4 Nm, max. static axial load 140 N
- Flange made of wrought aluminium alloy, anodised
- Mounting with through-hole and centring sleeve
- Ambient temperature 0 to 60 °C
- Corrosion resistance class 1 - low corrosion stress
Typical applications
The DARF-Q13-16-1 is used to mount swivel levers, drivers or small grippers on rotary and semi-rotary drives.
Technical data
| Order type | DARF-Q13-16-1 |
|---|---|
| Festo part number | 8163622 |
| Size | 16 |
| Mounting position | any |
| Design | adapter for rotary actuator |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| PWIS conformity (LABS) | VDMA24364-C1-L |
| Suitability for Li-ion battery production | suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability (measured to ISO 14644-14) | class 9 to ISO 14644-1 |
| Ambient temperature | 0 to 60 °C |
| Max. bending moment | 4 Nm |
| Max. static axial load | 140 N |
| Product weight | 52 g |
| Type of mounting | with through-hole and centring sleeve |
| Note on materials | RoHS compliant |
| Material flange | wrought aluminium alloy, anodised |
| Material sleeve | high-alloy stainless steel |
| Material screws | steel, coated |
| Customs tariff number | 84839089 |
| Weight | 0.048 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DARF-Q13-16-1 |
| EAN | 4052568627881 |
| Zolltarifnummer | 84839089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium, anodised |
| Series | DARF |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
