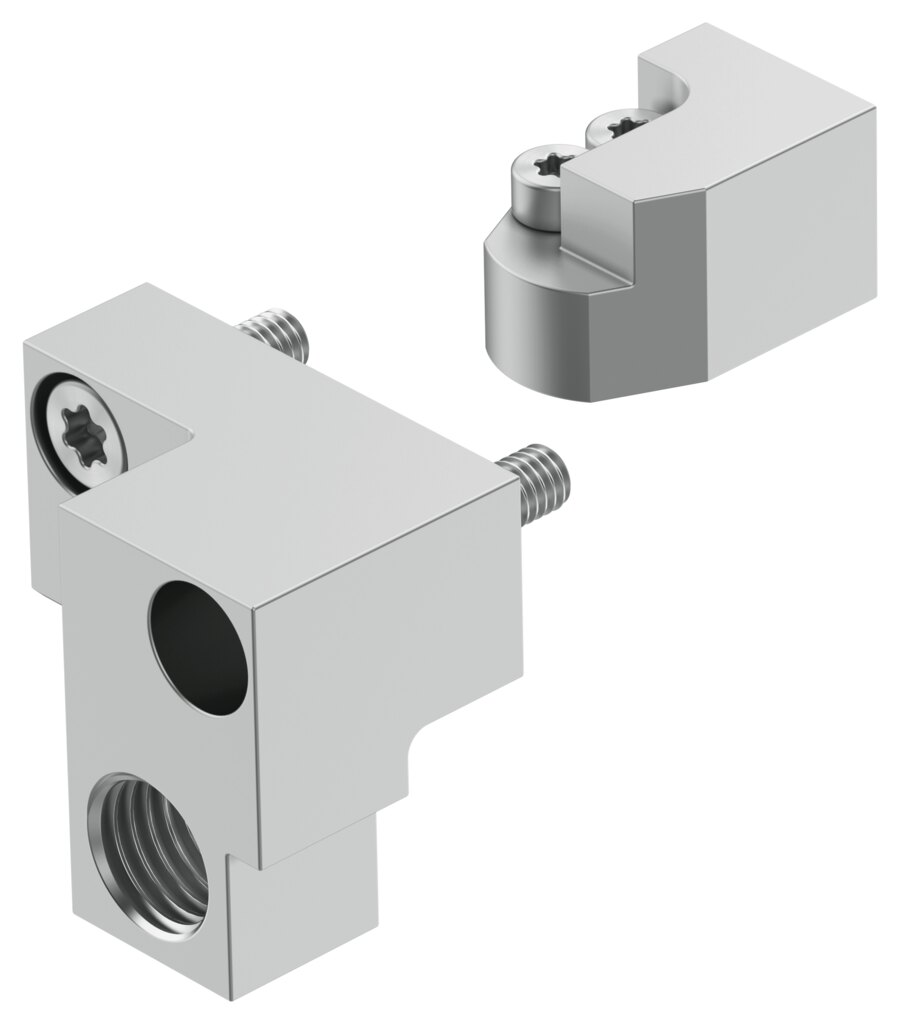

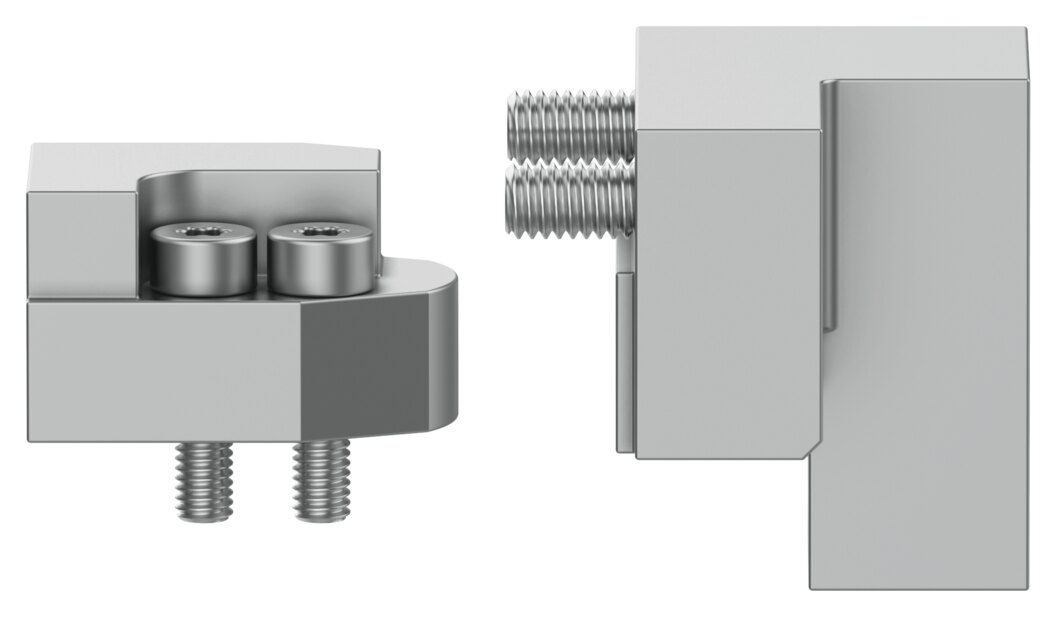

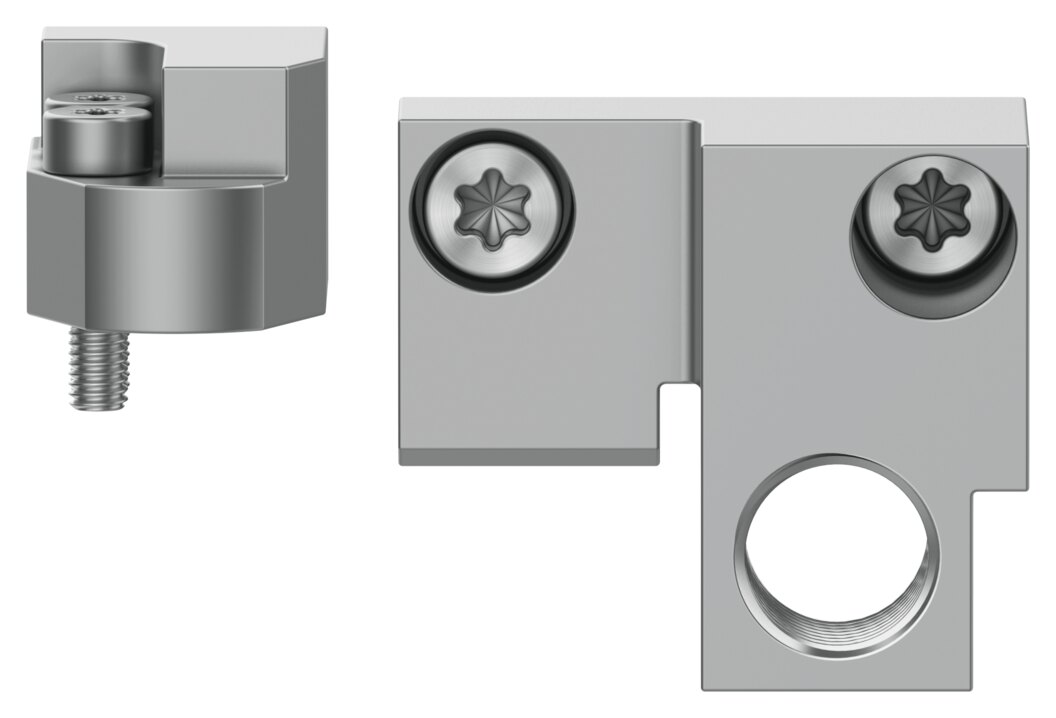

Stop kit for end position adjustment, size 20, up to 300 N DADP-SP-G9-20-F - Festo 8173539
The DADP-SP-G9-20-F stop kit is used to set the end position of a drive mechanically. Datasheet values: size 20, stop force up to 300 N, mounting: direct mounting via thread and ambient temperature -10 to 60 °C. It is retrofitted when end positions need to be adapted to the system or fine-tuned.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The DADP-SP-G9-20-F stop kit is used to set the end position of a drive mechanically. At a glance: size 20 and stop force up to 300 N.
Benefits
- Withstands stop forces up to 300 N
- Suitable for ambient temperatures of -10 to 60 °C
- Cleanroom-compatible, class 6 to ISO 14644-1
- Suitable for battery production with reduced Cu/Zn/Ni content (F1a)
- PWIS conformity VDMA24364-C1-L
- Corrosion resistance class CRC 2 for moderate corrosion stress
Application
It is retrofitted when end positions need to be adapted to the system or fine-tuned.
Technical data
| Type | DADP-SP-G9-20-F |
|---|---|
| Festo part number | 8173539 |
| Size | 20 |
| Mounting position | any |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | suitable for battery production with reduced Cu/Zn/Ni content (F1a) |
| Cleanroom suitability, measured to ISO 14644-14 | class 6 to ISO 14644-1 |
| Ambient temperature | -10 to 60 °C |
| Max. stop force | 300 N |
| Max. tightening torque | 2 Nm |
| Tightening torque tolerance | ± 15 % |
| Product weight | 87 g |
| Mounting type | direct mounting via thread |
| Note on materials | RoHS-compliant |
| Stop material | high-alloy steel |
| Screw material | steel |
| Weight | 0.09 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DADP-SP-G9-20-F |
| EAN | 4052568620615 |
| Zolltarifnummer | 84129070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | DADP |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
