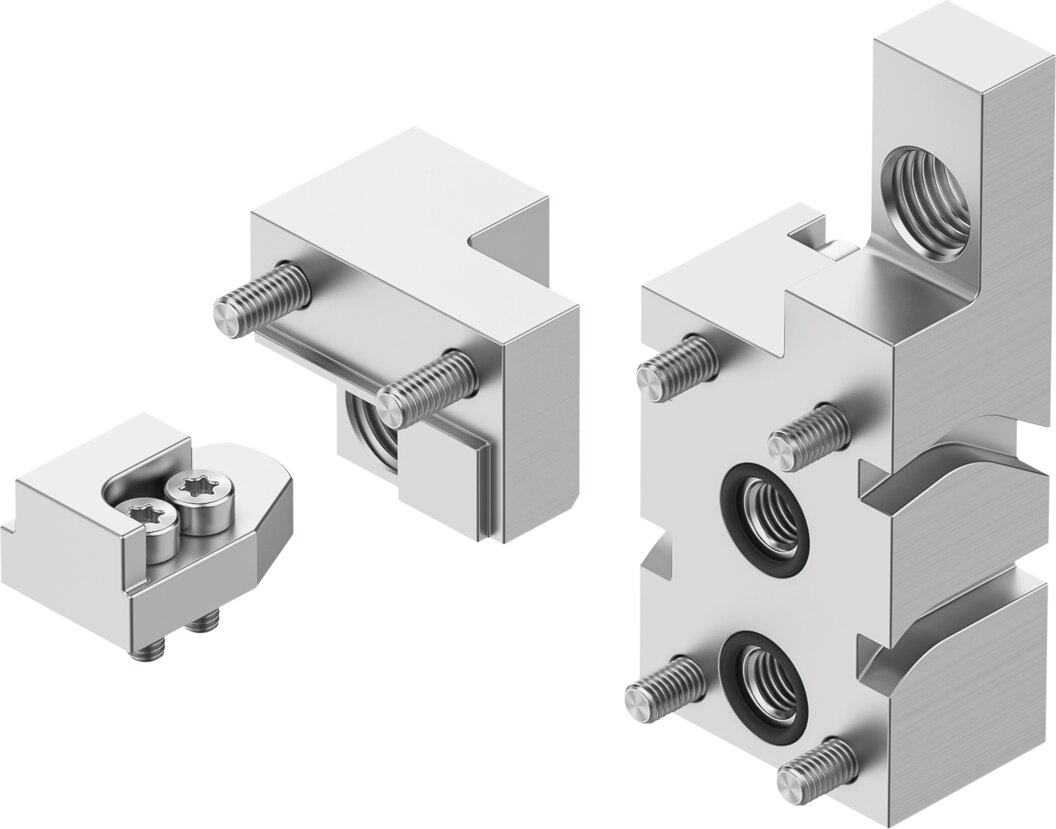

Sub-base kit for mounting on the drive, size 16, up to 200 N DADP-SP-G9-16-R - Festo 8173534

Festo ✓ Original product Brand new

The DADP-SP-G9-16-R sub-base kit creates the mounting interface for add-on parts on the drive. Key data: size 16, stop force up to 200 N, mounting: direct mounting via thread and ambient temperature -10 to 60 °C. It is used when building stop and cushioning solutions on compact drives.

Net
€47.64
excl. VAT
Item FES-8173534
Manufacturer no. DADP-SP-G9-16-R
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The DADP-SP-G9-16-R sub-base kit creates the mounting interface for add-on parts on the drive. The key values: size 16 and stop force up to 200 N.

Benefits

  • Withstands stop forces up to 200 N
  • Ambient temperature -10 to 60 °C
  • Cleanroom-compatible, class 6 to ISO 14644-1
  • Suitable for battery production with reduced Cu/Zn/Ni content (F1a)
  • PWIS conformity VDMA24364-C1-L
  • Corrosion resistance class CRC 2 for moderate corrosion stress

Application

It is used when building stop and cushioning solutions on compact drives.

Technical data

TypeDADP-SP-G9-16-R
Festo part number8173534
Size16
Mounting positionany
Corrosion resistance class CRC2 - moderate corrosion stress
PWIS conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriessuitable for battery production with reduced Cu/Zn/Ni content (F1a)
Cleanroom suitability, measured to ISO 14644-14class 6 to ISO 14644-1
Ambient temperature-10 to 60 °C
Max. stop force200 N
Max. tightening torque0.8 Nm
Tightening torque tolerance± 15 %
Product weight68 g
Mounting typedirect mounting via thread
Note on materialsRoHS-compliant
Stop materialhigh-alloy steel
Seal materialNBR
Plate materialwrought aluminium alloy, anodised
Screw materialsteel
Weight0.07 kg
ManufacturerFesto
Hersteller-NrDADP-SP-G9-16-R
EAN4052568620189
Zolltarifnummer76169990
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesDADP
Temperaturbereich-10-60 °C
Temperature (max.)60
