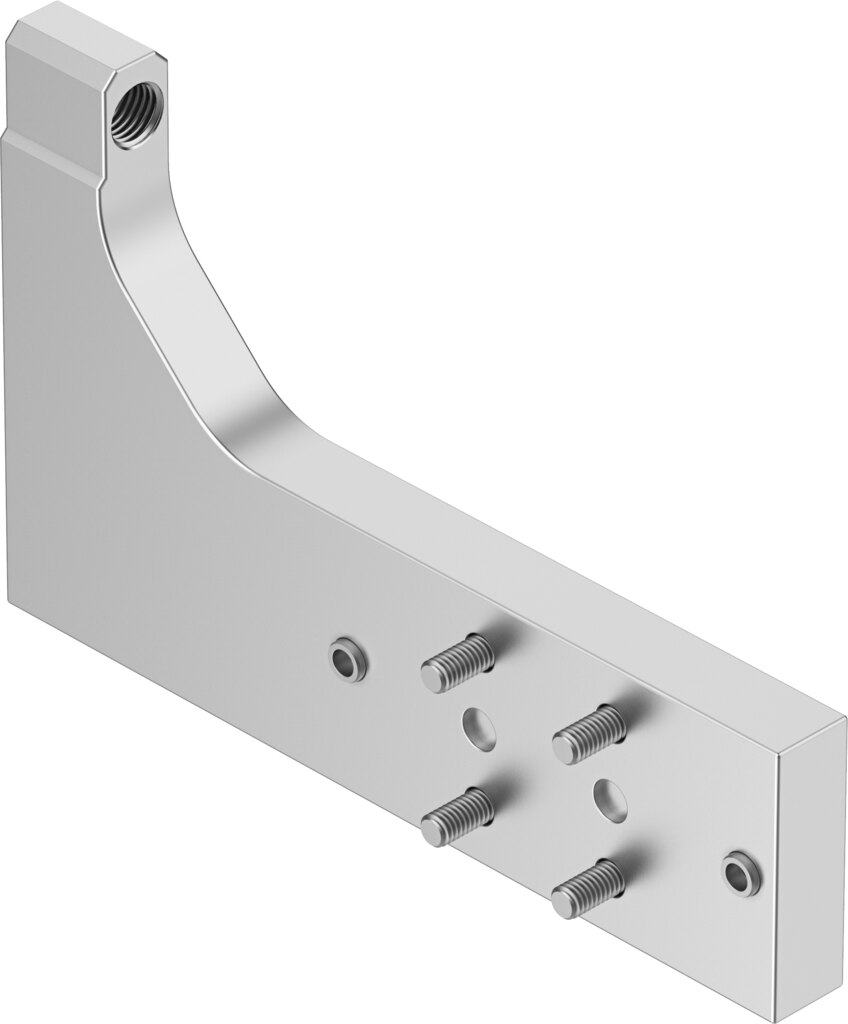

Shock absorber retainer for holding shock absorbers, size 12, up to 500 N DADP-ES-G8-12 - Festo 8159234
The DADP-ES-G8-12 shock absorber retainer fixes the shock absorber securely to the axis. Datasheet values: size 12, stop force up to 500 N, mounting: with through-hole and centring sleeve and ambient temperature 0 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The DADP-ES-G8-12 shock absorber retainer fixes the shock absorber securely to the axis. The key values: size 12 and stop force up to 500 N.
Benefits
- Withstands stop forces up to 500 N
- Impact speed up to 0.8 m/s
- Suitable for ambient temperatures of 0 to 60 °C
- PWIS conformity VDMA24364-C1-L
- CRC 2: designed for moderate corrosion stress
- RoHS-compliant
Application
It is used on linear axes and slides whose end positions are cushioned by shock absorbers.
Technical data
| Type | DADP-ES-G8-12 |
|---|---|
| Festo part number | 8159234 |
| Size | 12 |
| Mounting position | any |
| Design | stop lever |
| Max. impact speed | 0.8 m/s |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS conformity | VDMA24364-C1-L |
| Ambient temperature | 0 to 60 °C |
| Max. stop force | 500 N |
| Max. tightening torque | 2.9 Nm |
| Tightening torque tolerance | ± 20 % |
| Product weight | 149 g |
| Mounting type | with through-hole and centring sleeve |
| Note on materials | RoHS-compliant |
| Lever material | wrought aluminium alloy |
| Screw material | steel, galvanised |
| Weight | 0.15 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DADP-ES-G8-12 |
| EAN | 4052568589714 |
| Zolltarifnummer | 76169990 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | DADP |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
