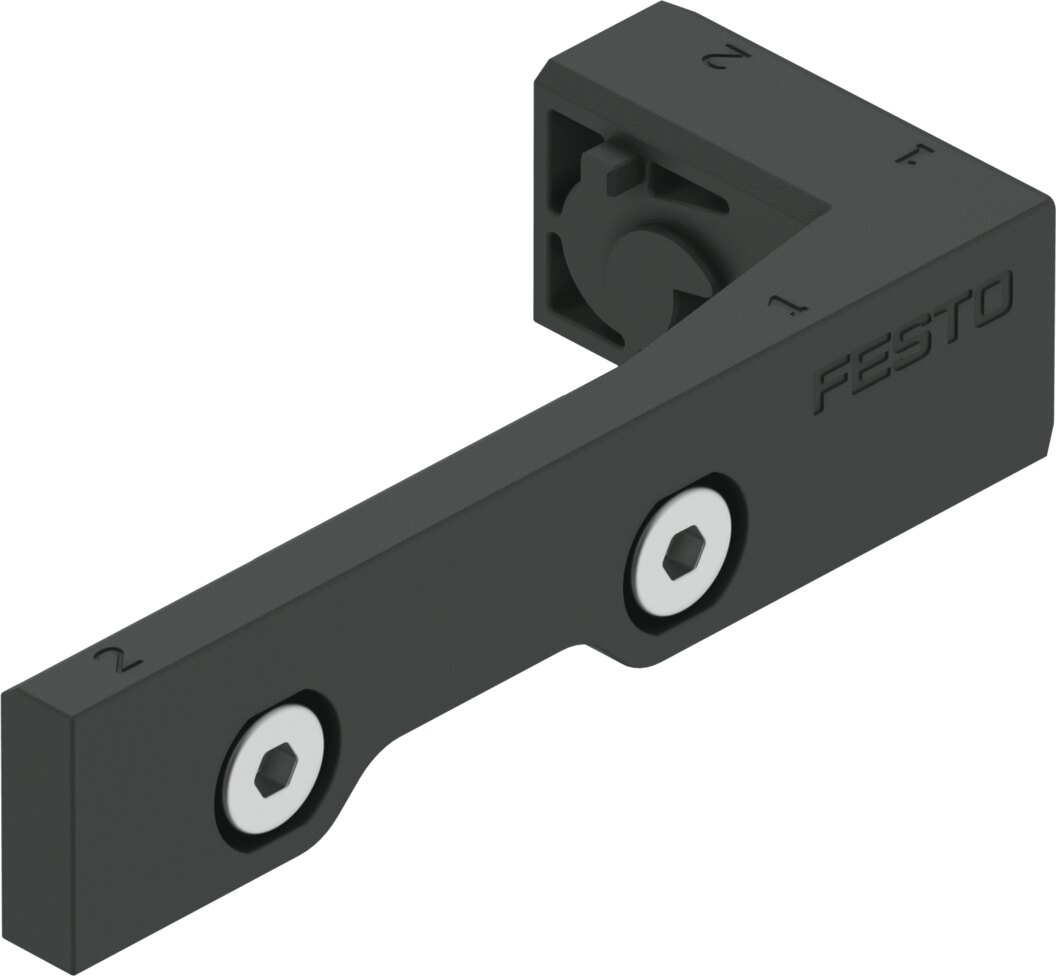

Connection kit size 6, stroke 30 mm, port M5 DADG-AK-G8-6-30 - Festo 8152358

Connection kit DADG-AK-G8-6-30 feeds a size 6 drive with 30 mm stroke with compressed air via M5. The kit weighs 5.1 g and is designed for compressed air to ISO 8573-1:2010 [7:4:4].

Why this part

• Port M5, max. tightening torque 0.7 Nm
• Mounting with max. 1 Nm tightening torque, tolerance ± 10 %
• Operating pressure 1 to 8 bar
• Adapter made of epoxy resin, seals made of NBR
• Corrosion resistance class CRC 1, rated for low corrosion stress
• Ambient temperature -10 to 60 °C

Typical use

For drives in handling and assembly, at -10 to 60 °C ambient temperature and in paint shops with PWIS requirements.
