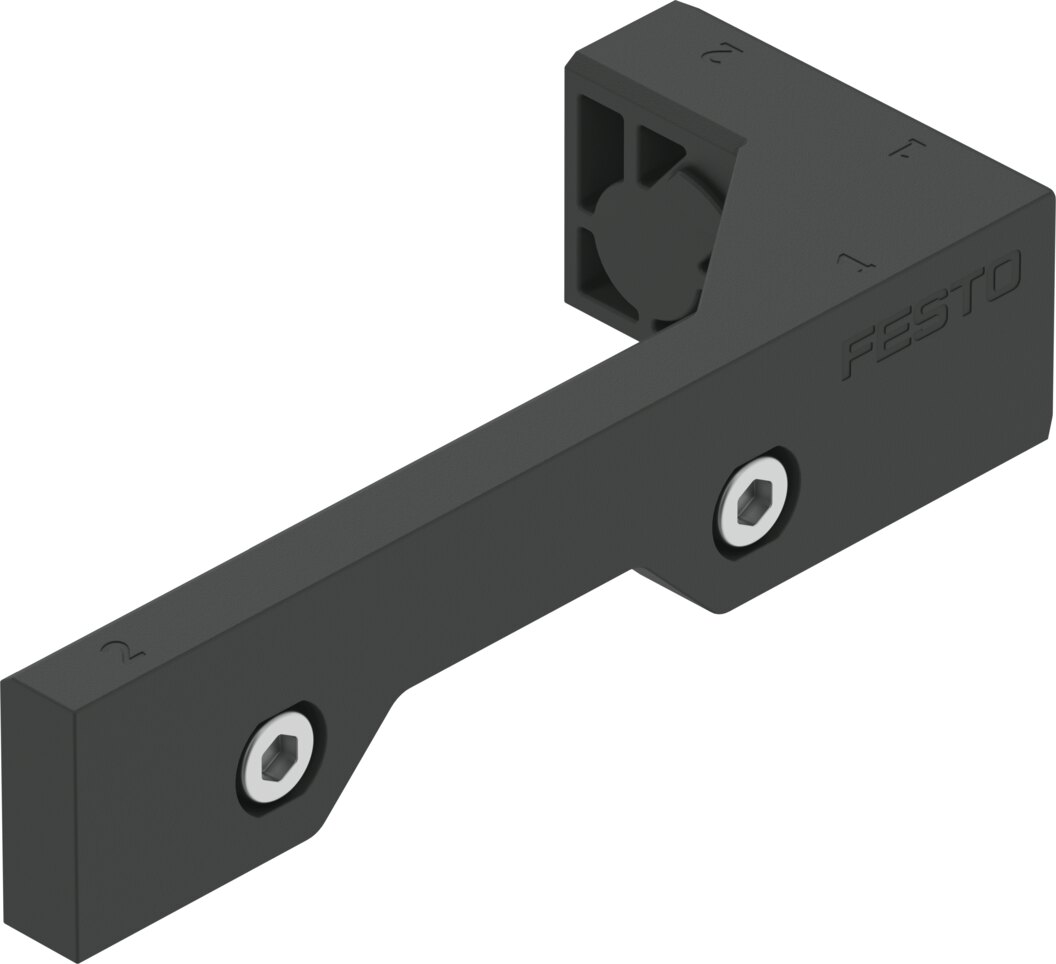

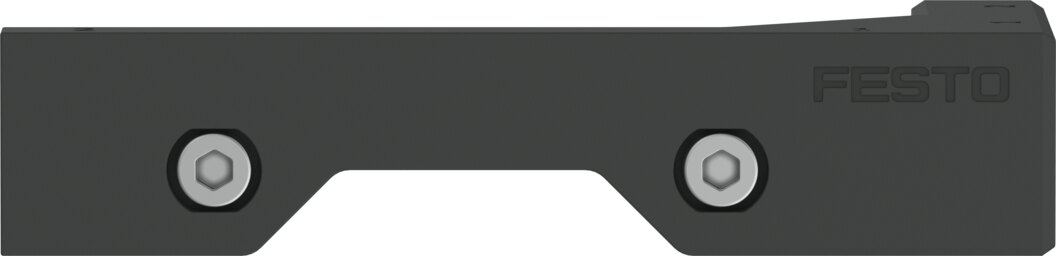

Connection kit size 20, stroke 50 mm, port G1/8 DADG-AK-G8-20-50 - Festo 8152391

Size 20 and stroke 50 mm determine the choice: DADG-AK-G8-20-50 is designed for exactly that. The epoxy resin adapter is tightened to max. 3 Nm, weight 39.2 g.

Why this part

• Port G1/8, max. tightening torque 3 Nm
• Mounting with max. 3 Nm tightening torque, tolerance ± 10 %
• Operating pressure 1 to 8 bar
• Adapter made of epoxy resin, seals made of FPM
• Corrosion resistance class CRC 1, rated for low corrosion stress
• Ambient temperature -10 to 60 °C

Typical use

In assembly and test stations when the air connection of a size 20 drive is converted or replaced.
