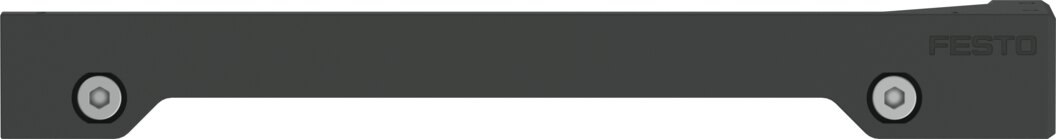

Connection kit size 16, stroke 125 mm, port M5 DADG-AK-G8-16-125 - Festo 8159793

Connection kit DADG-AK-G8-16-125 supplies compressed air for size 16 and stroke 125 mm via a M5 port. The kit weighs 28.2 g and is designed for compressed air to ISO 8573-1:2010 [7:4:4].

Key benefits

• Port M5, max. tightening torque 0.7 Nm
• Mounting with max. 1.5 Nm tightening torque, tolerance ± 10 %
• Operating pressure 1 to 8 bar
• Adapter made of epoxy resin, seals made of NBR
• Corrosion resistance class CRC 1, rated for low corrosion stress
• Ambient temperature -10 to 60 °C

Where it is used

In assembly and test stations when the air connection of a size 16 drive is converted or replaced.
