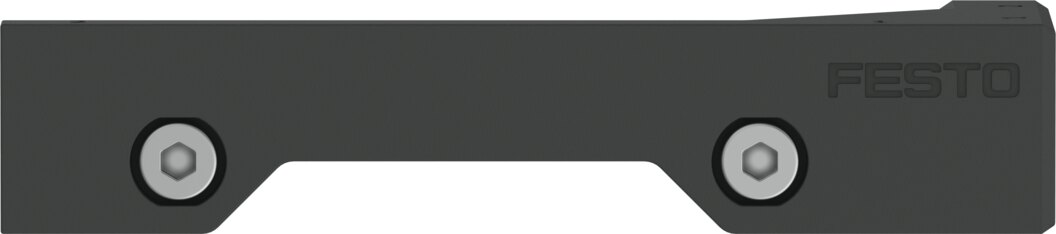

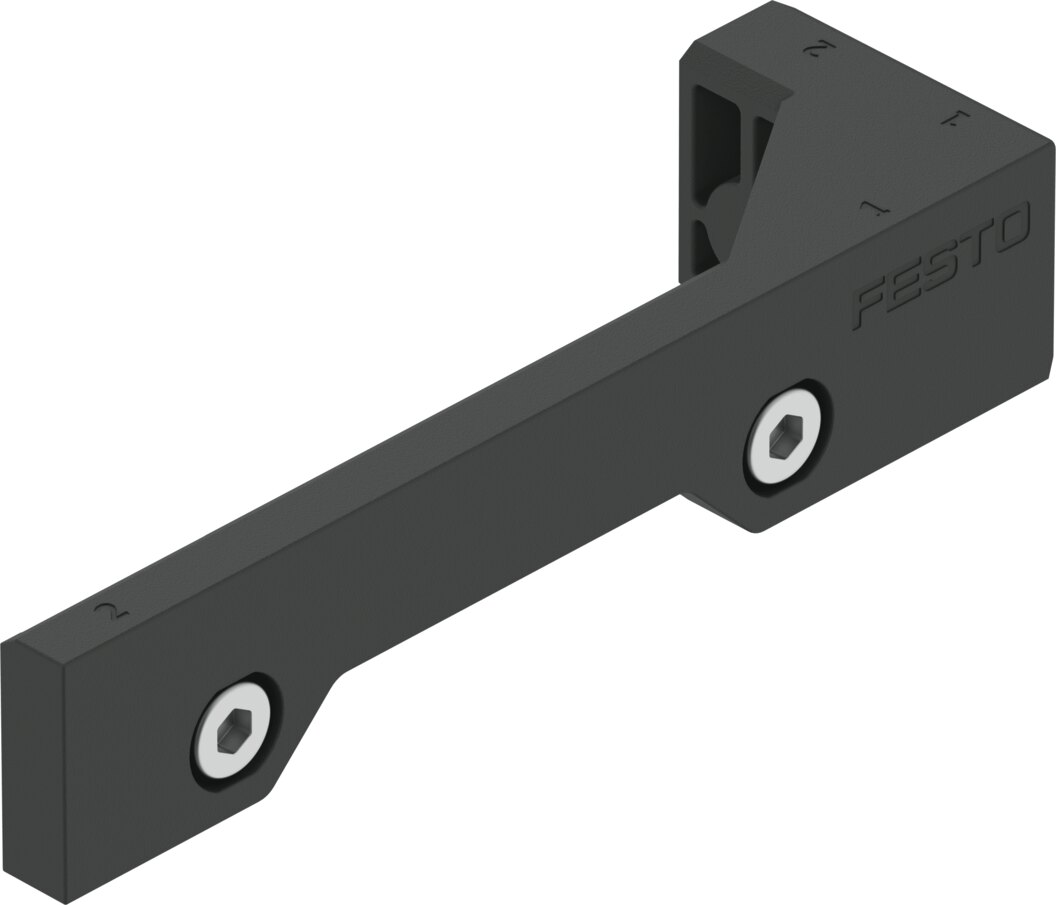

Connection kit size 12, stroke 40 mm, port M5 DADG-AK-G8-12-40 - Festo 8152376

Size 12 and stroke 40 mm determine the choice: DADG-AK-G8-12-40 is designed for exactly that. The epoxy resin adapter is tightened to max. 1.5 Nm, weight 14.2 g.

Benefits

• Port M5, max. tightening torque 0.7 Nm
• Mounting with max. 1.5 Nm tightening torque, tolerance ± 10 %
• Operating pressure 1 to 8 bar
• Adapter made of epoxy resin, seals made of NBR
• Corrosion resistance class CRC 1, rated for low corrosion stress
• Ambient temperature -10 to 60 °C

Applications

In assembly and test stations when the air connection of a size 12 drive is converted or replaced.
