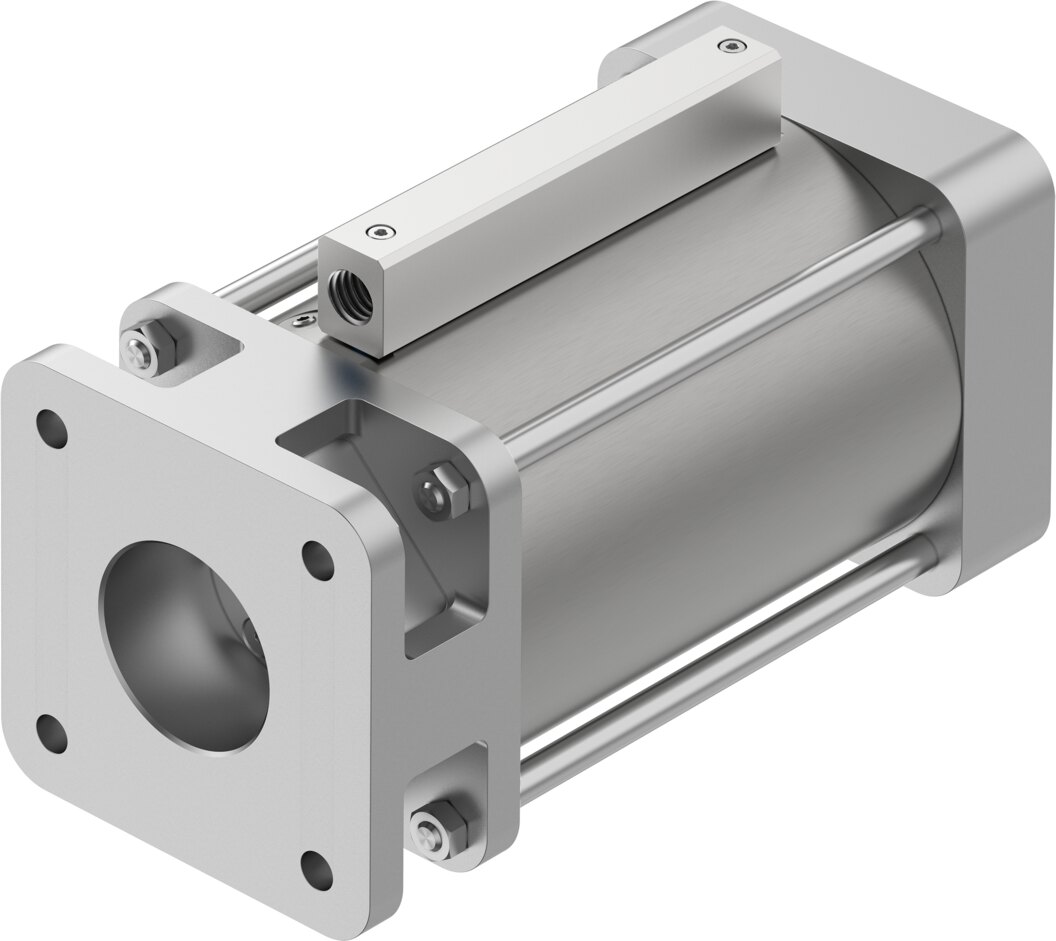

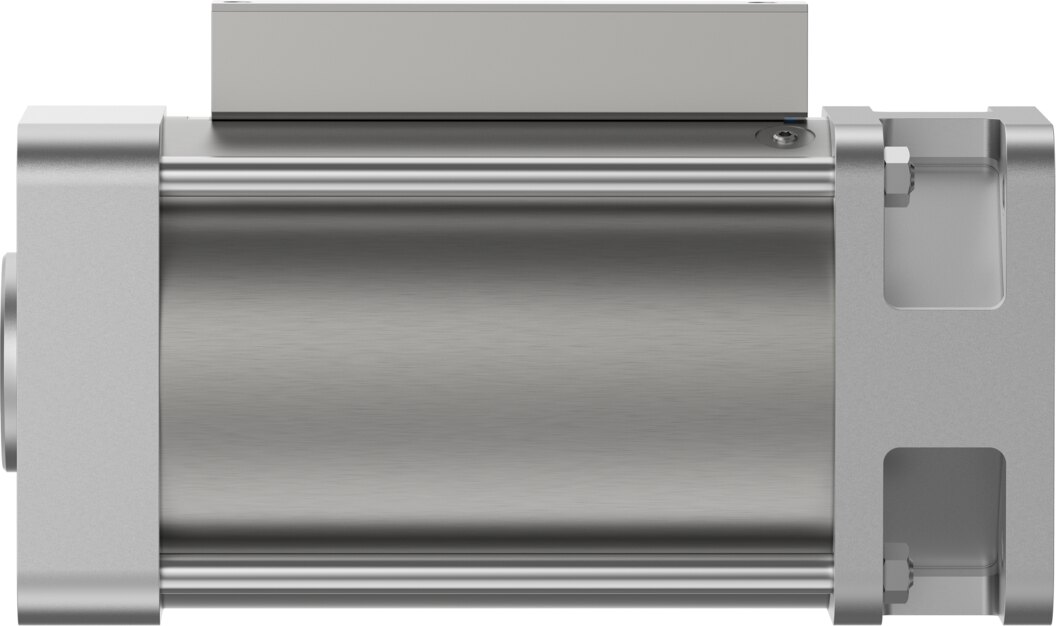

Holding brake for round material Ø 25 mm, holding force 8200 N, spring-applied DACS-25-A-S - Festo 8072772

Festo ✓ Original product Brand new

DACS-25-A-S clamps Ø 25 mm round material by spring force, static holding force 8200 N, released from 3.8 bar compressed air. TÜV certified, category 1, Performance Level c, explosion protection for zones 1, 2, 21 and 22.

Net
€1,977.37
excl. VAT
Item FES-8072772
Manufacturer no. DACS-25-A-S
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

DACS-25-A-S clamps Ø 25 mm round material by spring force, static holding force 8200 N, released from 3.8 bar compressed air. Housing made of steel, clamping jaws made of tool steel, product weight 12.83 kg.

Key benefits

  • Static holding force 8200 N on Ø 25 mm round material
  • Spring clamping in both directions, so it also holds when pressure drops
  • Safety function holding and stopping, category 1, Performance Level c, certificate TÜV CA 697
  • Explosion protection zones 1, 2, 21 and 22 (ATEX), observe the notes in the certificate
  • Operating pressure 3.8 to 8 bar, release port G3/8
  • Corrosion resistance class CRC 1, PWIS conformity VDMA24364 zone III

Where it is used

On vertical axes and lifting units that must not drop on air failure or emergency stop, and for fixing in a machining position.

Technical data

Order codeDACS-25-A-S
Festo part number8072772
Mounting positionany
Type of clamping with direction of actionboth directions, clamped by spring force, released by compressed air
Position detectionfor proximity switch
Safety functionholding and stopping a movement
Performance Level (PL)stopping, holding, blocking a movement / category 1, Performance Level c
Operating pressure3.8 to 8 bar
Max. permissible test pressure8 bar
Min. release pressure3.8 bar
Round material to be clamped25 mm
ApprovalTÜV
CE mark (see declaration of conformity)to EU Machinery Directive
UKCA marking (see declaration of conformity)to UK machinery regulations
Explosion protectionobserve the note in the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Certificate issuing authorityTÜV CA 697
Operating mediumcompressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Ambient temperature-10 to 80 °C
Static holding force8200 N
Product weight12832 g
Type of mountingwith female thread, with accessories
Release port, clamping unitG3/8
Note on materialsRoHS compliant
Material sealsNBR, TPE-U(PU)
Material springhigh-alloy steel
Material housingsteel
Material clamping jawstool steel
Material pistonsteel
Customs tariff number84798997
Weight14 kg
ManufacturerFesto
Hersteller-NrDACS-25-A-S
EAN4052568454562
Zolltarifnummer84798997
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Seal materialNBR, TPE-U(PU)
Housing materialSteel
MediumCompressed air
Betriebsdruck max [bar]8
Temperaturbereich-10-80 °C
Temperature (max.)80
