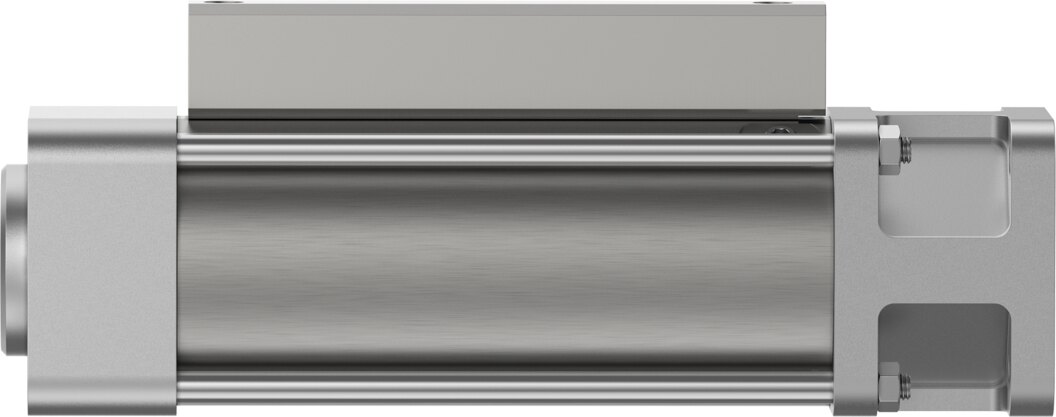

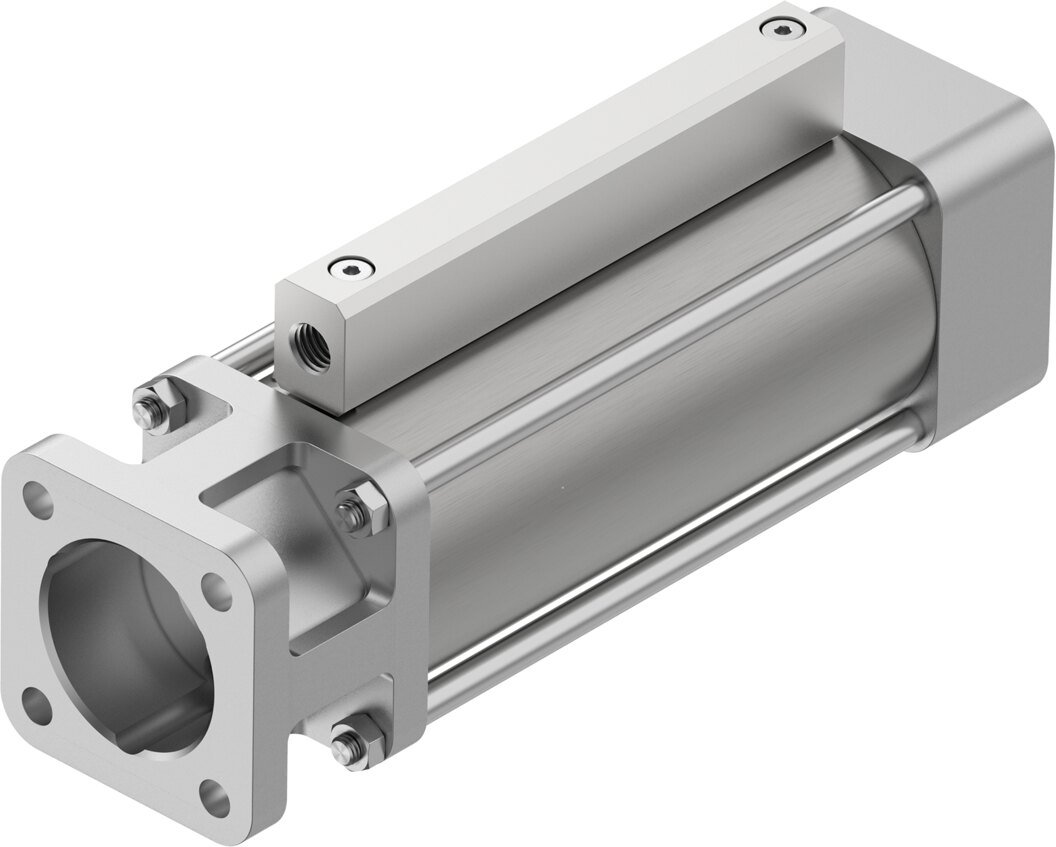

Holding brake DACS-16-A-S - Festo 8072770
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Mounting position | Any |
|---|---|
| Type of clamping with direction of action | At both ends, Clamping via spring force, released via compressed air |
| Position detection | Via proximity switch |
| Safety function | Holding and stopping a movement |
| Performance Level (PL) | Stopping, holding, blocking a movement/category 1, Performance Level c |
| Operating pressure | 3.8 ... 8 bar |
| Max. permissible test pressure | 8 bar |
| Min. release pressure | 3.8 bar |
| Round material to be clamped | 16 mm |
| Approval | German Technical Control Board (TÜV) |
| CE mark (see declaration of conformity) | To EC Machinery Directive |
| UKCA marking (see declaration of conformity) | To UK regulations for machines |
| Explosion protection | The information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Certificate issuing authority | German Technical Control Board (TÜV) CA 697 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -20 ... 80 °C |
| Static holding force | 1350 N |
| Product weight | 1483 g |
| Type of mounting | With female thread, With accessories |
| Release connection, clamping unit | G1/8 |
| Note on materials | RoHS compliant |
| Material seals | NBR, TPE-U(PU) |
| Material spring | High-alloy steel |
| Material housing | Steel |
| Material clamp jaws | Tool steel |
| Material piston | Steel |
| Weight | 1.8 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DACS-16-A-S |
| EAN | 4052568454548 |
| Zolltarifnummer | 84798997 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
