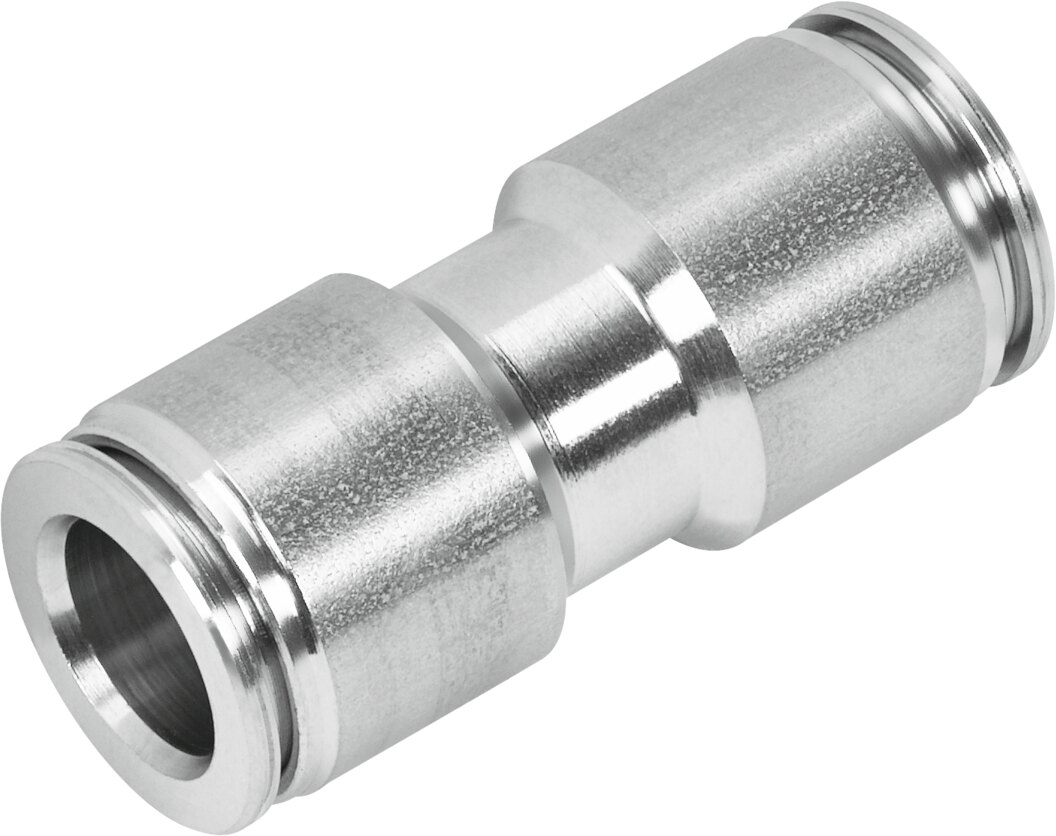

Push-in connector stainless steel for tubing OD 5/32" CRQS-5/32T-U - Festo 565340
Push-in connector CRQS-5/32T-U for fast tubing connections, tubing OD 5/32" on both sides. Operating pressure ranges from -0.95 to 14 bar across the full temperature range. Housing made of high-alloy stainless steel, tubing seal made of FPM. Corrosion resistance class 4.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The push-in connector CRQS-5/32T-U plugs tubing together in a straight line, tubing OD 5/32" on both sides. Following the push-pull principle, inserting the 5/32" tubing is enough to connect, release is via the release ring.
Benefits
- Vacuum and pressure operating pressure -0.95 to 14 bar across the full temperature range
- Corrosion protection corrosion resistance class CRC 4 - very high corrosion stress
- Temperature range ambient temperature -20 to 150 °C
- Materials housing, release ring and clamping segment made of high-alloy stainless steel, tubing seal made of FPM
- Nominal width 2.997 mm
- Installation tubing insertion depth 13 mm
Application
Typical use of CRQS-5/32T-U: for extending and repairing tubing lines and for transitions between tubing sizes. Medium for CRQS-5/32T-U: compressed air to ISO 8573-1:2010 [7:-:-]. Any mounting position is allowed. Suitable tubing: PFAN.
Technical data
| Type | CRQS-5/32T-U |
|---|---|
| Festo part number | 565340 |
| Size | Standard |
| Nominal width | 2.997 mm |
| Tubing insertion depth | 13 mm |
| Mounting position | any |
| Shape | straight |
| Design | push-pull principle |
| Operating pressure across the full temperature range | -0.95 to 14 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 4 - very high corrosion stress |
| PWIS (LABS) conformity | VDMA24364 zone III |
| Food compatibility | see extended material information |
| Ambient temperature | -20 to 150 °C |
| Suitable tubing | PFAN |
| Pneumatic connection 1 | For tubing OD 5/32" |
| Pneumatic connection 2 | For tubing OD 5/32" |
| Release ring colour | silver |
| Material note | RoHS compliant |
| Housing material | High-alloy stainless steel |
| Release ring material | High-alloy stainless steel |
| Tube seal material | FPM |
| Tube clamping segment material | High-alloy stainless steel |
| Manufacturer | Festo |
| Hersteller-Nr | CRQS-5/32T-U |
| EAN | 4052568367633 |
| Zolltarifnummer | 73072910 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Stainless steel |
| Bauform | gerade Form |
| Size BG | Standard |
| Seal material | FPM |
| Medium | Compressed air |
| Series | CRQS |
| Betriebsdruck max [bar] | 14 |
| Temperaturbereich | -20-150 °C |
| Temperature (max.) | 150 |
