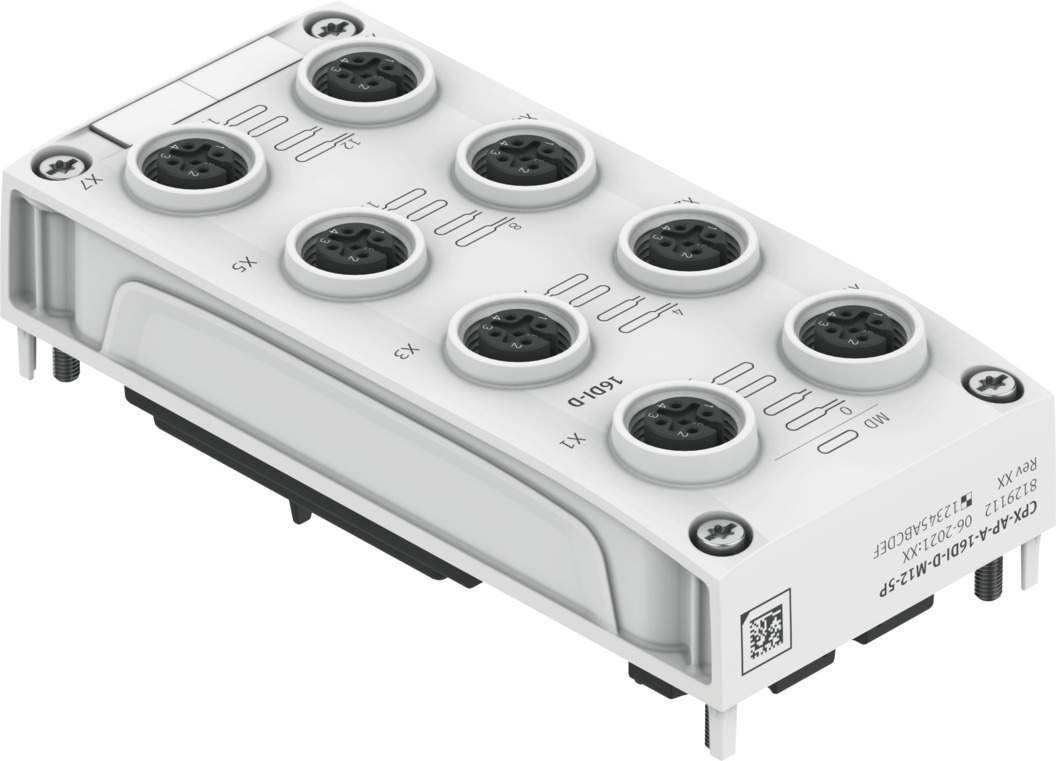

Digital input module for CPX-AP-A, 16 inputs, 24 V DC, grid dimension 50.1 mm CPX-AP-A-16DI-D-M12-5P - Festo 8129112

Festo ✓ Original product Brand new

The digital input module CPX-AP-A-16DI-D-M12-5P acquires signals locally in the CPX-AP-A system. Key data: 16 inputs, nominal operating voltage 24 V DC and power failure bridging 10 ms. Further data: reverse polarity protection and ambient temperature -20 to 50 °C.

Net
€172.80
excl. VAT
Item FES-8129112
Manufacturer no. CPX-AP-A-16DI-D-M12-5P
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The digital input module CPX-AP-A-16DI-D-M12-5P acquires signals locally in the CPX-AP-A system. The key selection criteria are 16 inputs and nominal operating voltage 24 V DC.

Advantages

  • 16 inputs
  • Nominal operating voltage 24 V DC
  • Power failure bridging 10 ms
  • Integrated reverse polarity protection
  • Suitable for ambient temperatures of -20 to 50 °C
  • Grid dimension 50.1 mm

Application

CPX-AP-A-16DI-D-M12-5P is used when designing, extending and maintaining installations with the CPX-AP-A system.

Technical data

TypeCPX-AP-A-16DI-D-M12-5P
Festo part number8129112
Dimensions (W x L x H)50.1 mm x 107.3 mm x 57.5 mm
Grid dimension50.1 mm
Type of mountingScrew-clamped
Product weight96 g
Mounting positionAny
Ambient temperature-20 to 50 °C
Note on ambient temperatureObserve ambient temperature derating according to IEC 61131-2:2017
Storage temperature-20 to 70 °C
Relative air humidity5 - 95%, Non-condensing
Nominal altitude of use≤ 2000 m ASL (> 79.5 kPa)
Max. installation height3500 m
Note on max. installation heightObserve ambient temperature derating according to IEC 61131-2:2017
Corrosion resistance class CRC1 - Low corrosion stress
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Note on vibration resistanceTransport application test with severity class 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on shock resistance30 g/11 ms to EN 60068-2-27, SG1 on DIN rail, SG2 on direct mounting, Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Protection classIII
Pollution degree2
Overvoltage categoryII
Max. cable length30 m inputs
LABS (PWIS) conformityVDMA24364-B2-L
Fire test materialUL94 V-0 (housing)
Note on materialsRoHS compliant, Free of halogen, Free of phosphoric acid ester
Material coverReinforced PBT
Material screwsNickel-plated steel
Material o-ringFluoro rubber
Diagnostics via LEDDiagnostics per channel, Status per channel
Diagnostics per internal communicationCommunication error, Short circuit/overload in sensor supply, Electronics/sensors overvoltage, Electronics/sensors undervoltage
Max. address volume, inputs2 byte
Channel parametersInput debounce time
Communication interface, protocolAP
Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop
Note on nominal operating voltage DCProtected Extra-Low-Voltage to IEC 60204-1
Nominal DC operating voltage, electronics/sensors24 V
Permissible voltage fluctuations for electronics/sensors± 25 %
Intrinsic current consumption at nominal operating voltage for electronics/sensorsTypically 40 mA
Power failure bridging10 ms
Reverse polarity protectionYes
Electrical connection input, functionDigital input
Electrical connection input, connection type8x socket
Electrical connection input, connector systemM12x1, A-coded to EN 61076-2-101
Electrical connection input, number of connections/cores5
Number of inputs16
Characteristic for inputsTo IEC 61131-2, type 3
Switching levelSignal 0: ≤ 5 V, Signal 1: ≥ 11 V
Switching logic for inputsPNP (positive switching), 2-wire sensors to IEC 61131-2, 3-wire sensors to IEC 61131-2
Input debounce time0.1 ms, 3 ms (standard), 10 ms, 20 ms
Electrical isolation of inputs between channel - internal communicationYes
Behaviour after end of overload of the sensor supplyAutomatic return
Fuse protection of inputs (short circuit)Internal electronic fuse per socket
Max. residual current of inputs per module4 A
Electrical isolation of inputs between channelsNo
Max. power supply per channel0.5 A
Weight0.11 kg
ManufacturerFesto
Hersteller-NrCPX-AP-A-16DI-D-M12-5P
EAN4052568600204
Zolltarifnummer85389099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Operating voltage24 V DC
Temperaturbereich-20-50 °C
Temperature (max.)50
