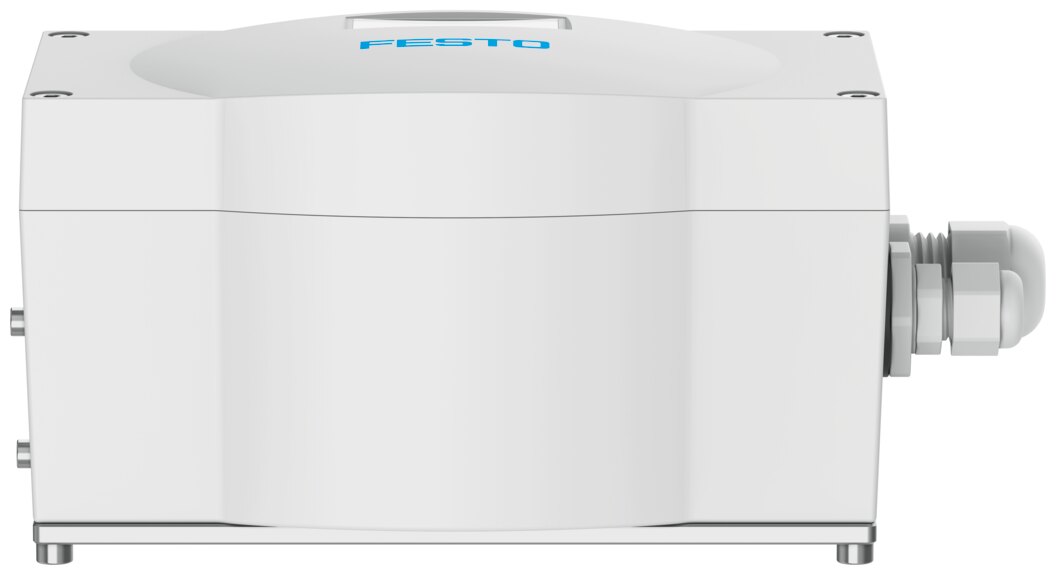

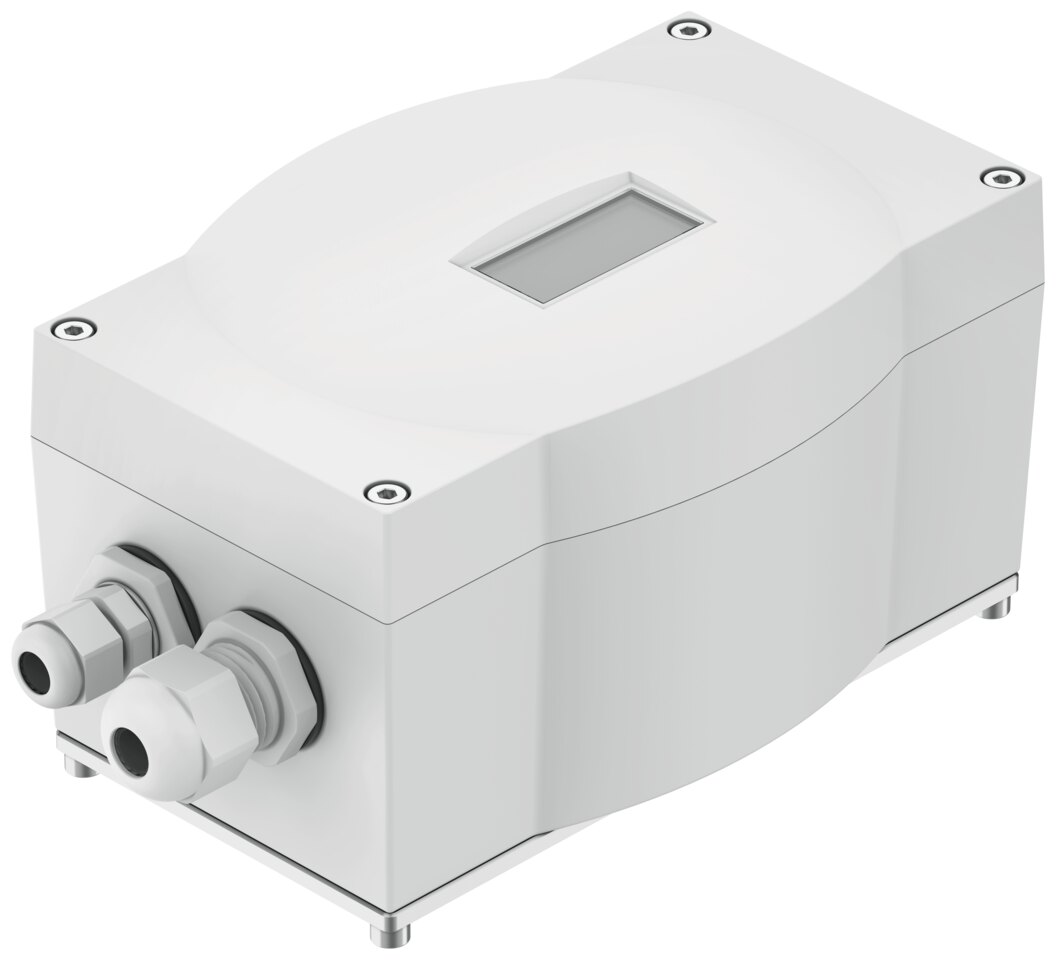

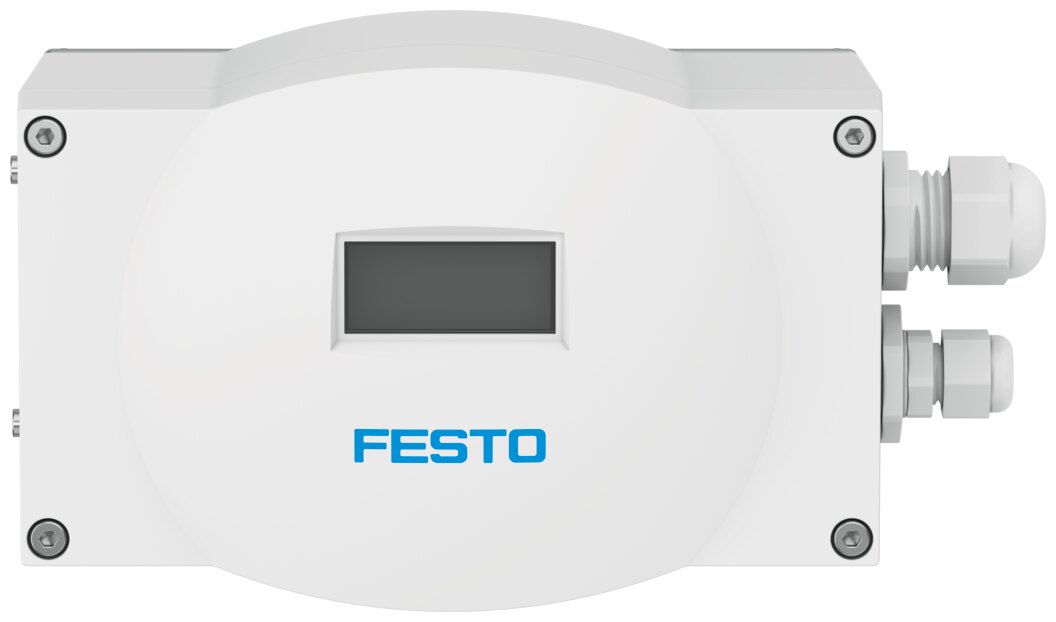

Digital positioner single-acting 4 - 20 mA IP65 CMSX-P-SE-C-U-F1-S-50-A - Festo 8171510

Festo ✓ Original product Brand new

With a setpoint signal of 0 - 10 V, 0 - 20 mA or 4 - 20 mA and 3 to 8 bar operating pressure, the Festo CMSX-P-SE-C-U-F1-S-50-A positioner controls single-acting quarter-turn and linear actuators. Degree of protection IP65. Standard nominal flow rate 50 l/min.

Net
€599.71
excl. VAT
Item FES-8171510
Manufacturer no. CMSX-P-SE-C-U-F1-S-50-A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With a setpoint signal of 0 - 10 V, 0 - 20 mA or 4 - 20 mA and 3 to 8 bar operating pressure, the Festo CMSX-P-SE-C-U-F1-S-50-A positioner controls single-acting quarter-turn and linear actuators.

Benefits

  • Setpoint signal 0 - 10 V, 0 - 20 mA, 4 - 20 mA
  • Standard nominal flow rate 50 l/min
  • Works in a pressure range of 3 to 8 bar
  • Display: 7-segment, LCD display, with backlighting
  • Degree of protection IP65

Areas of use

It is used on process valves with pneumatic actuators, set up via display and buttons.

Technical data

TypeCMSX-P-SE-C-U-F1-S-50-A
Festo part number8171510
DesignDigital, electropneumatic positioner
Mode of operationSingle-acting
Design characteristicsSafety position - pneumatic outlet 4 exhausted
Mounting positionAny
Type of mountingWith accessories
Functional principle of measuring systemPotentiometer
Display7-segment, LCD display, with backlighting
Setting optionsVia display and buttons
Size of dead zone0.5 to 10 %
Operating pressure3 to 8 bar
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation not possible, Maximum particle size 40 µm
Standard nominal flow rate (standardised to DIN 1343)50 l/min
Pneumatic connectionG1/8
Nominal operating voltage DC24 V
Operational voltage range DC21.6 to 26.4 V
Maximum current consumption600 mA
Reverse polarity protectionFor operating voltage connections
Connection resistance80 kOhm
Analogue inputs, signal range0 - 10 V, 0 - 20 mA, 4 - 20 mA
Analogue inputs, maximum dynamic range0 - 24 mA, 0 - 11 V
Analogue inputs, linearity error at 25 °C0.5 %
Analogue inputs, temperature coefficient0.02 %FS/K
Analogue inputs, resolution16 bit
Analog inputs, overload protectionYes
Analogue inputs, electrical isolationNo
Analogue outputs, signal range4 - 20 mA
Analogue outputs, maximum load impedance600 Ohm
Analogue outputs, linearity error at 25°C0.5%
Analogue outputs, temperature coefficient0.02 %FS/K
Analogue outputs, resolution12 bit
Analogue outputs, reverse polarity protectionYes
Analog outputs, short circuit current ratingYes
Analog outputs, overload protectionYes
Analogue outputs, galvanic isolationNo
Characteristic for inputsTo IEC 61131-2, type 3
Switching inputPNP, NPN
Digital inputs, reverse polarity protectionYes
Digital inputs, electrical isolationyes, optocoupler
Digital outputs, reverse polarity protectionYes
Switching output3 x PNP or 3 x NPN, switchable
Digital outputs, output current100 mA
Digital outputs, short circuit current ratingYes
Digital outputs, overload protectionYes
Digital outputs, electrical isolationyes, optocoupler
Electrical connection 1, function3x digital output, Analogue output, Analogue input, Digital input, Power supply, Power supply load
Electrical connection 1, connection typeTerminal strip
Electrical connection 1, connector systemScrew terminal
Electrical connection 1, number of connections/cores13
Electrical connection 1, tightening torque0.6 Nm
Electrical connection 1, conductor cross section1.5 mm²
Electrical connection 2, functionExternal path/angle sensor
Electrical connection 2, connection typeTerminal strip
Electrical connection 2, connector systemScrew terminal
Electrical connection 2, number of connections/cores3
Electrical connection 2, tightening torque0.6 Nm
Electrical connection 2, conductor cross section1.5 mm²
Cable fittingM12 x 1.5 for electrical connection 2, M20 x 1.5 for electrical connection 1
Permissible cable diameter3 - 6.5 mm for electrical connection 2, 7 - 13 mm for electrical connection 1
Maximum cable length3 m for electrical connection 2
Ambient temperature-5 to 60 °C
Storage temperature-20 to 60 °C
Relative air humidity5 - 95%, Non-condensing
Degree of protectionIP65
Corrosion resistance class CRC2 - Moderate corrosion stress
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27, As per EN 60068-2-29
Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6, As per EN 60068-2-6
Pollution degree3
ApprovalRCM
CE mark (see declaration of conformity)To EU EMC Directive, in accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK instructions for EMC, to UK RoHS instructions
Material housingReinforced PC
Material sight glassPC
Material base plateWrought aluminium alloy, anodised
Material shaftHigh-alloy stainless steel
Material couplingHigh-alloy stainless steel
Material screwsHigh-alloy stainless steel
Material sealsNBR
Material cable glandPA
Material blanking plugPA
LABS (PWIS) conformityVDMA24364-B2-L
Note on materialsRoHS compliant
Product weight970 g
Dimensions (W x L x H)190 mm x 105 mm x 130 mm
ManufacturerFesto
Hersteller-NrCMSX-P-SE-C-U-F1-S-50-A
EAN4052568616250
Zolltarifnummer90328100
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/8
Seal materialNBR
MediumCompressed air
Operating voltage24 V DC
SeriesCMSX
Betriebsdruck max [bar]8
Protection ratingIP65
Temperaturbereich-5-60 °C
Temperature (max.)60
