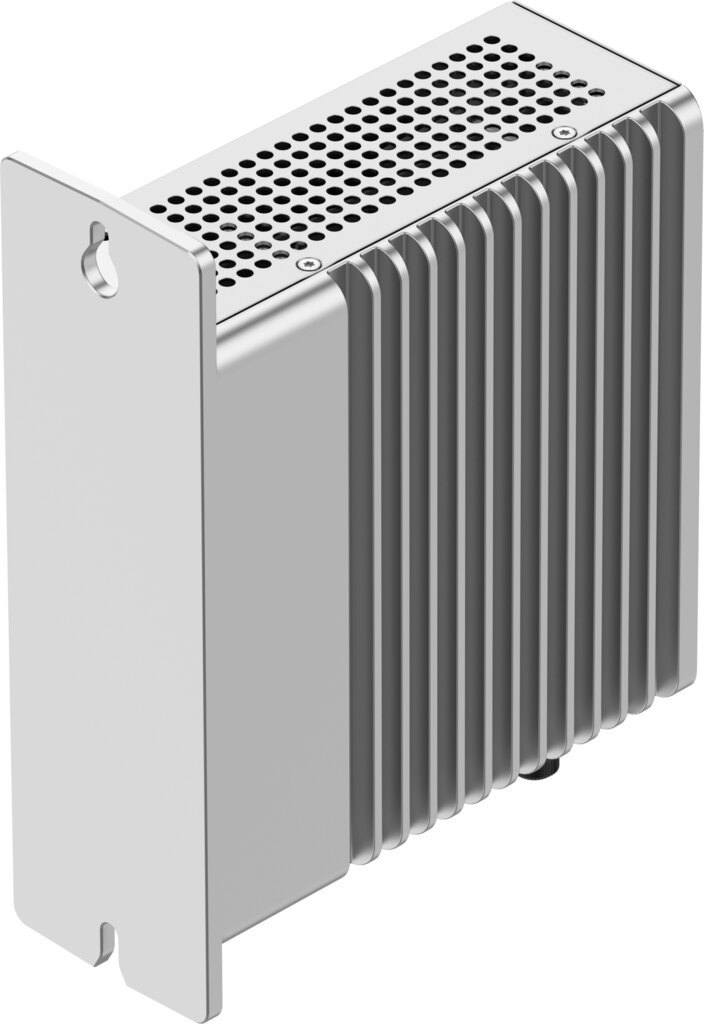

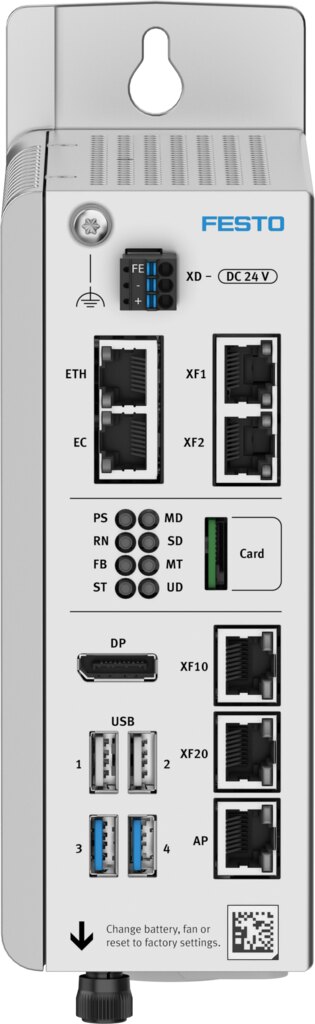

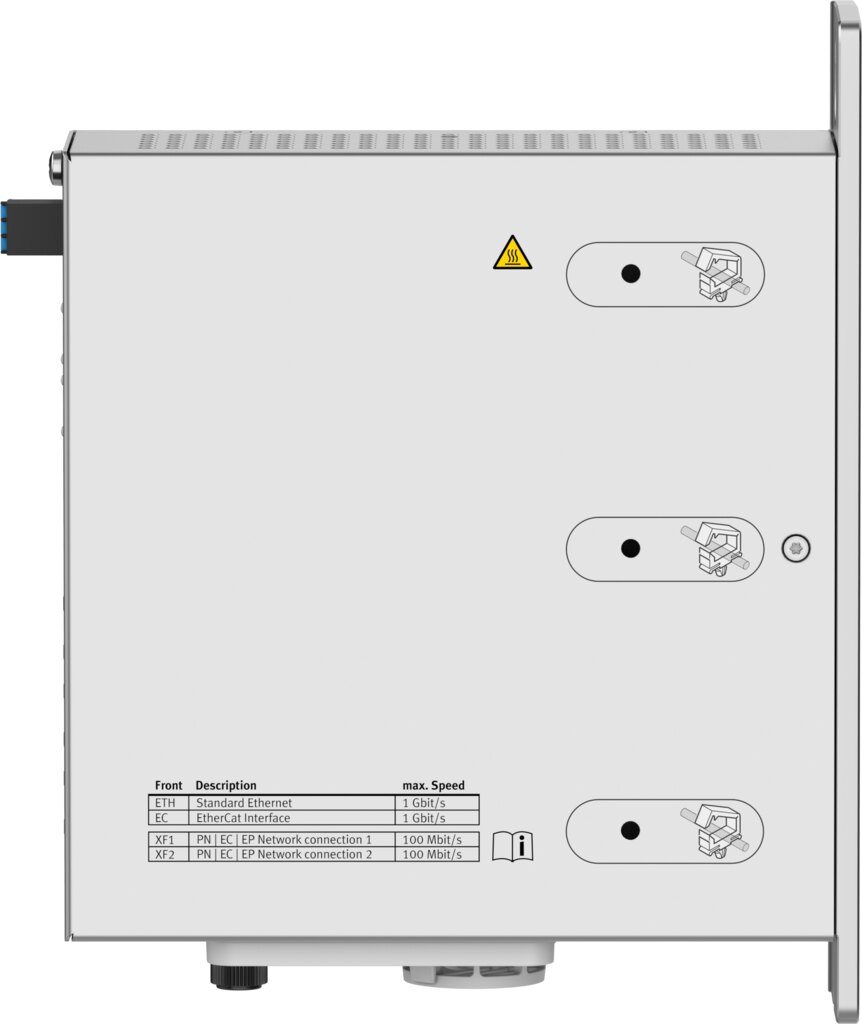

Control unit CEPE-H8GB-128GB-M1 - Festo 8165401
Net
excl. VAT
€3,412.74
Item
FES-8165401
Manufacturer no.
CEPE-H8GB-128GB-M1
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Dimensions (W x L x H) | 69 mm x 174 mm x 222 mm |
|---|---|
| Type of mounting | Screw-clamped |
| Product weight | 1800 g |
| Mounting position | Vertical |
| Ambient temperature | 0 ... 50 °C |
| Note on ambient temperature | Note ambient temperature derating to IEC 61131-2:2018 |
| Storage temperature | -20 ... 70 °C |
| Relative air humidity | 95%, Non-condensing |
| Nominal altitude of use | <= 2000 m ASL (> 79.5 kPa) |
| Max. installation height | 3000 m |
| Note on max. installation height | < 3000 m ASL (> 70 kPa) |
| Degree of protection | IP20 |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Protection against direct and indirect contact | PELV |
| LABS (PWIS) conformity | VDMA24364 zone III |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| KC mark | KC-EMV |
| Approval | RCM |
| Note on materials | RoHS compliant |
| Material housing | Die-cast aluminium, Makrolon®, High-alloy stainless steel |
| Material screws | Nickel-plated steel |
| IP address setting | DHCP, Static via web server |
| Field bus, protocol | EtherCAT® |
| Fieldbus interface, function | EtherCAT master |
| Field bus, connection type | Socket |
| Field bus, connection system | RJ45 |
| Fieldbus interface, connection pattern | 00995789 |
| Field bus interface, transmission rate | 100 Mbit/s |
| Ethernet interface, connection type | Socket |
| Ethernet interface, protocol | TCP/IP |
| Ethernet interface, function | Cloud connection, Network |
| Ethernet interface, connection system | RJ45 |
| Ethernet interface, connection pattern | 00995789 |
| Ethernet interface, number of pins/wires | 8 |
| Ethernet, data transmission rate | 1 Gbit/s |
| Ethernet interface, transmission rate | 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 1 Gbit/s |
| Additional functions | IO-Link®, OPC-UA, MQTT, WebIQ 1000 tags + 2500 alarms, Licences included:, Festo AX Controls CODESYS PLC Basic, Festo AX Controls CODESYS PLC Standard, Festo AX Controls CODESYS PLC Advanced, Festo AX Controls CODESYS SoftMotion 4, Festo AX Controls CODESYS SoftMotion 8, Festo AX Controls WebIQ 1000, Festo AX Controls Motion Robotic |
| CPU data | Dual core 2.2 GHz |
| storage medium | SSD 128 GB |
| Operational voltage range DC | 20.4 ... 30 V |
| Nominal operating voltage DC | 24 V |
| Max. power supply | 4 A |
| Power failure bridging | 10 ms |
| Reverse polarity protection | Yes |
| Buffering time real-time clock | 520 Wochen |
| Flag | 128 kB remanent data, CODESYS variable concept |
| Weight | 2.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CEPE-H8GB-128GB-M1 |
| EAN | 4052568774868 |
| Zolltarifnummer | 85371091 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
