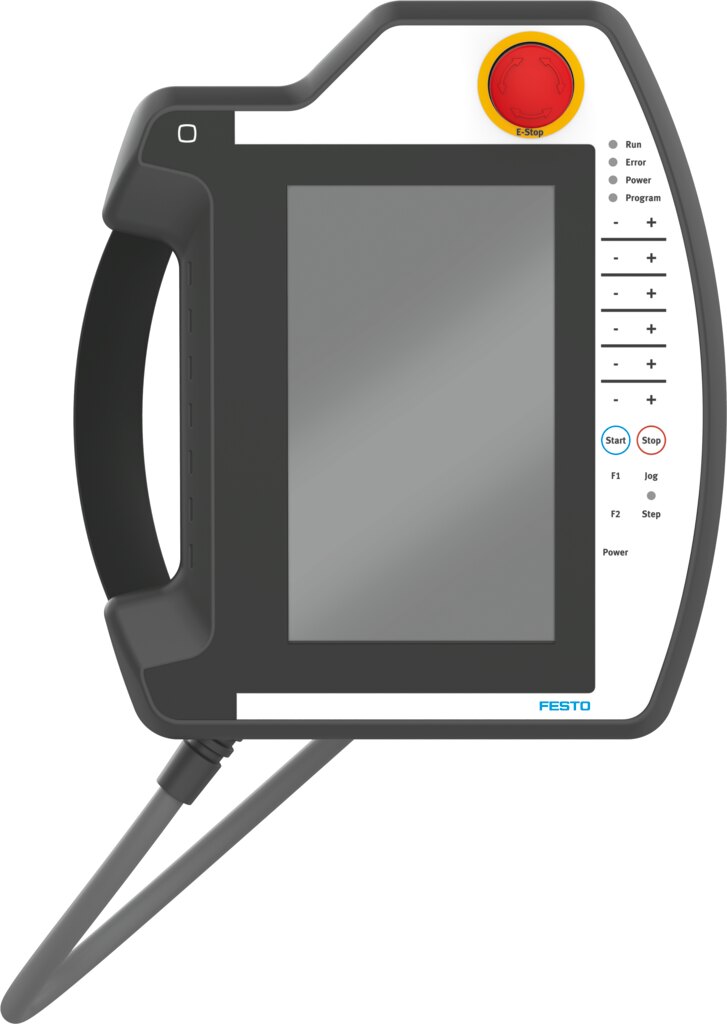

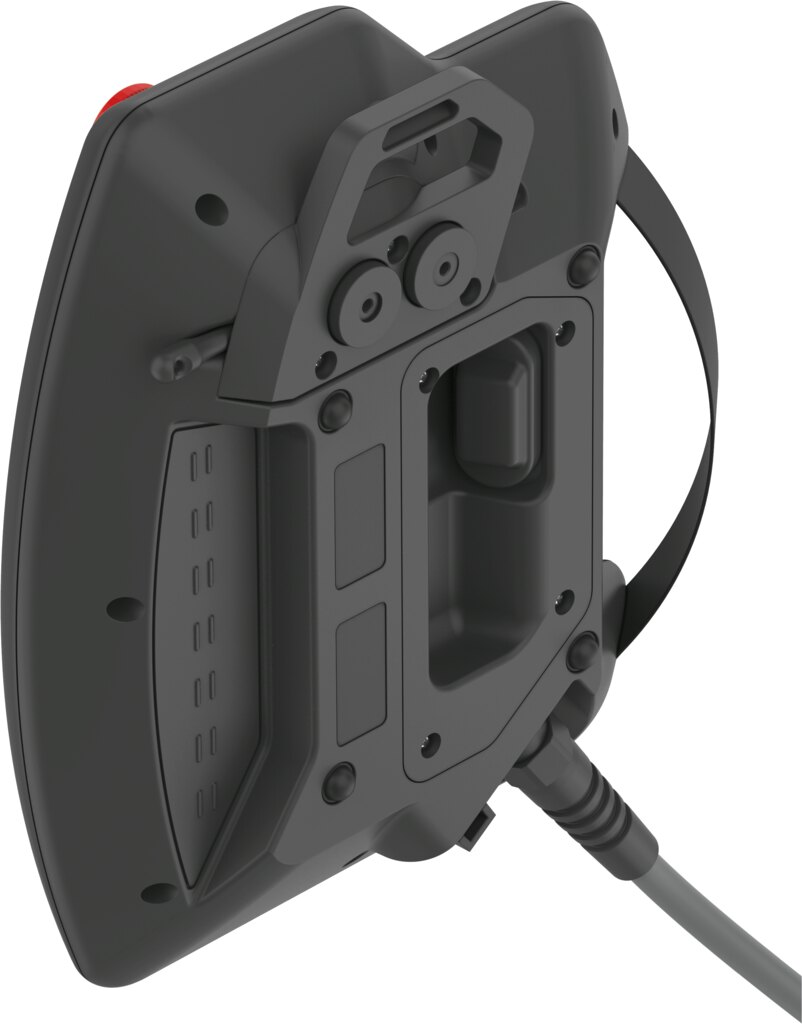

Operator unit 7" display, LCD display, with backlighting CDSA-D3-RV - Festo 8126915
Key data of the operator unit CDSA-D3-RV: 7" display, LCD display, with backlighting, Touchscreen. Festo lists the part as an accessory for servo drives. Further data: degree of protection IP65, Touch sensitive keyboard, enable control unit, emergency stop button.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Key data of the operator unit CDSA-D3-RV: 7" display, LCD display, with backlighting, Touchscreen.
Benefits
- Display size: 7"
- Display: LCD display, With backlighting
- Display characteristics: Touchscreen
- Degree of protection: IP65
- Operator controls: Touch sensitive keyboard, Enable control unit, Emergency stop button
Applications
Festo lists the part as an accessory for servo drives. Product weight 950 g, RoHS compliant.
Technical data
| Number of function keys | 20 |
|---|---|
| Number of system LEDs | 5 |
| Display | LCD display, With backlighting |
| Display characteristics | Touchscreen |
| Display size | 7" |
| Operator controls | Touch sensitive keyboard, Enable control unit, Emergency stop button |
| Input current | ≤ 5.6 A |
| Operational voltage range DC | 19.2 to 30 V |
| Display resolution | WSVGA, 600x1024 pixels |
| Approval | CCC, RCM, c UL us - Listed (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EC Machinery Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK regulations for machines, To UK RoHS instructions |
| Certificate issuing authority | UL E239998 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | 5 - 95% |
| Degree of protection | IP65 |
| Note on degree of protection | When USB cover flap is closed, In mounted state |
| Protection class | III |
| Ambient temperature | 0 to 40 °C |
| Product weight | 950 g |
| Electrical power consumption | 12 W |
| IP address allocation | FCT, DHCP |
| Nominal operating voltage DC | 24 V |
| Power failure bridging | 10 ms |
| Nominal altitude of use | ≤ 2000 m NHN |
| Power supply, function | Emergency stop, Power supply |
| Power supply, connection type | Socket strip |
| power supply, connection system | Socket strip 12 pin, 2 rows |
| Power supply, number of pins/wires | 12 |
| Power supply, assigned pins/wires | 6 |
| USB interface, connection technology | USB 2.0 type A |
| Ethernet interface, protocol | TCP/IP |
| Ethernet interface, function | Diagnostics, Network connection to PLC, Parameterisation |
| Ethernet interface, connection type | Socket |
| Ethernet interface, connection system | RJ45 |
| Ethernet interface, number of pins/wires | 8 |
| Ethernet interface, transmission rate | 100 Mbit/s |
| Note on materials | RoHS compliant |
| Material housing | ABS |
| Dimensions (W x L x H) | 212 mm x 251 mm x 73 mm |
| Note on permissible current load at 40°C | 10 - 1000 mA at each contact for emergency stop, below 500 mA for enable control unit |
| Utilisation category | DC-13, emergency stop |
| Service life characteristic value B10D, subcomponent | 0.25 million switching cycles, emergency stop, 1 million switching cycles, enable control unit |
| Manufacturer | Festo |
| Hersteller-Nr | CDSA-D3-RV |
| EAN | 4052568560928 |
| Zolltarifnummer | 85371091 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Operating voltage | 24 V DC |
| Protection rating | IP65 |
| Temperaturbereich | 0-40 °C |
| Temperature (max.) | 40 |
