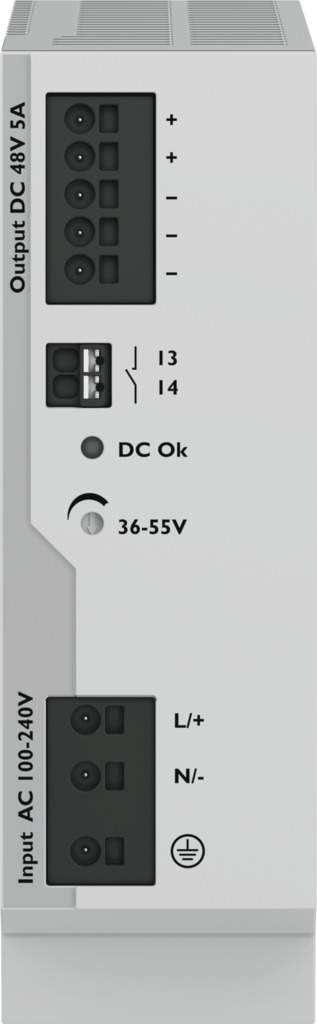

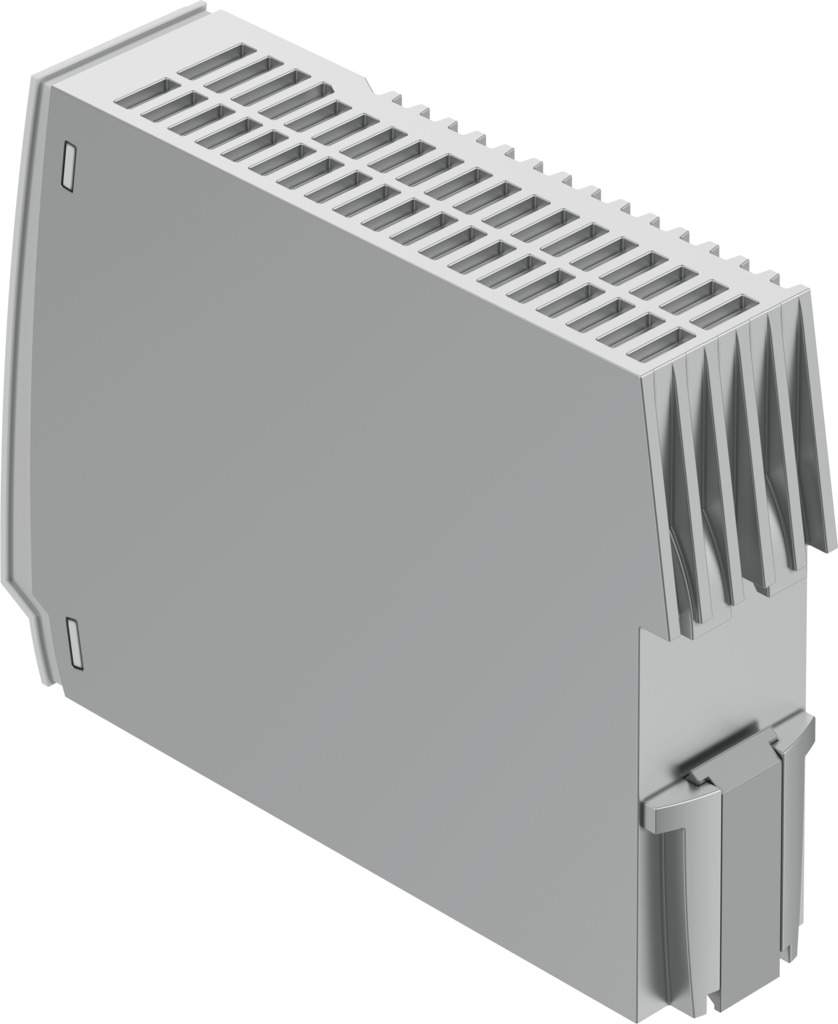

Power supply unit 48 V DC output, 5 A output current CACN-3A-7-5-G2 - Festo 8149583

Festo ✓ Original product Brand new

Key data of the power supply unit CACN-3A-7-5-G2: 48 V DC output, 5 A output current, 100 to 240 V AC input. The power supply unit supplies controllers and drives with DC voltage. Festo lists the part as an accessory for servo drives. Further data: Single phase, 15 ms mains buffering.

Net
€319.02
excl. VAT
Item FES-8149583
Manufacturer no. CACN-3A-7-5-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Key data of the power supply unit CACN-3A-7-5-G2: 48 V DC output, 5 A output current, 100 to 240 V AC input. The power supply unit supplies controllers and drives with DC voltage.

Benefits

  • Nominal output voltage DC: 48 V
  • Nominal output current: 5 A
  • Input voltage range AC: 100 to 240 V
  • Primary supply: Single phase
  • Power failure bridging: 15 ms

Applications

Festo lists the part as an accessory for servo drives. Product weight 1.12 kg, RoHS compliant.

Technical data

Width42 mm
Height130 mm
Length160 mm
Mounting positionOpen convection
Primary supplySingle phase
Input current1.2 - 2.9 A
Nominal output voltage DC48 V
Nominal output current5 A
Input voltage range AC100 to 240 V
Power failure bridging15 ms
Mains frequency45 to 65 Hz
Approvalc UL us - Listed (Oil)
CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-40 to 85 °C
Relative air humidity95%
Degree of protectionIP20
Ambient temperature-25 to 70 °C
Product weight1120 g
Type of mountingvia DIN rail
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrCACN-3A-7-5-G2
EAN4052568572204
Zolltarifnummer85044082
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Protection ratingIP20
Temperature (max.)70
