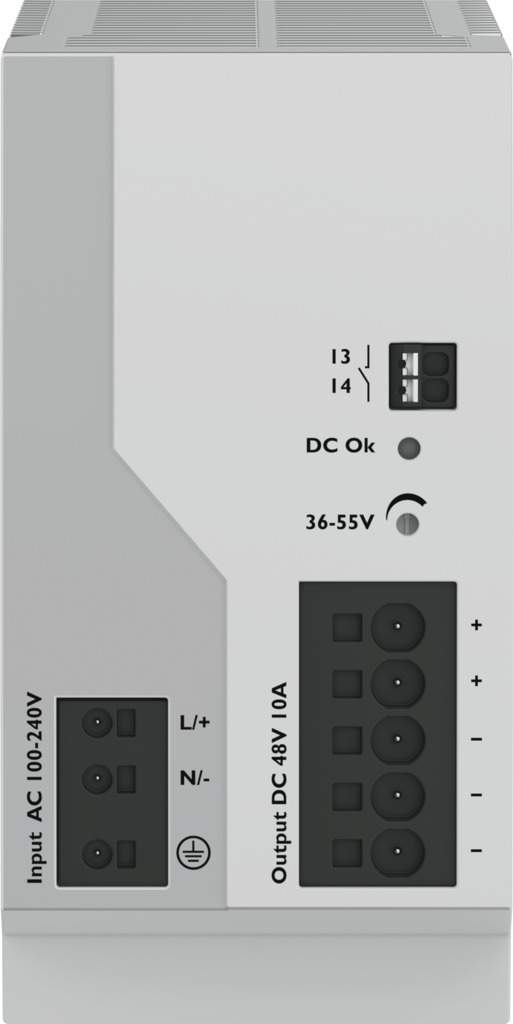

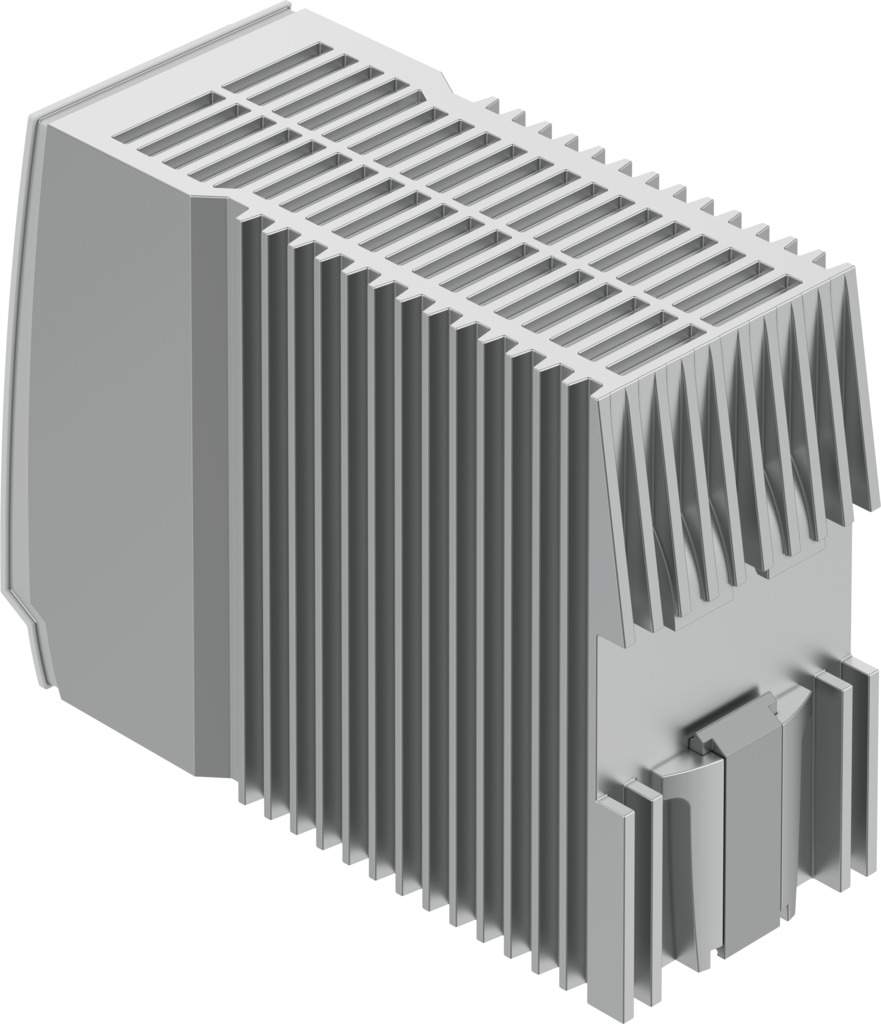

Power supply unit CACN-3A-7-10-G2 - Festo 8149584
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Width | 68 mm |
|---|---|
| Height | 130 mm |
| Length | 160 mm |
| Mounting position | Open convection |
| Primary supply | Single phase |
| Input current | 2.4 - 5.6 A |
| Nominal output voltage DC | 48 V |
| Nominal output current | 10 A |
| Input voltage range AC | 100 ... 240 V |
| Power failure bridging | 15 ms |
| Mains frequency | 45 ... 65 Hz |
| Approval | c UL us - Listed (Oil) |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -40 ... 85 °C |
| Relative air humidity | 95% |
| Degree of protection | IP20 |
| Ambient temperature | -25 ... 70 °C |
| Product weight | 1603 g |
| Type of mounting | via DIN rail |
| Note on materials | RoHS compliant |
| Weight | 1.6 kg |
| Manufacturer | Festo |
| Hersteller-Nr | CACN-3A-7-10-G2 |
| EAN | 4052568572211 |
| Zolltarifnummer | 85044083 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
