Bypass valve for EB 80 valve island, additional air supply, port Ø 8 mm, type 708203Y8 - Riegler 153126

Name: Bypass valve for EB 80 valve island, additional air supply, port Ø 8 mm, type 708203Y8 - Riegler 153126
Brand: Riegler
SKU: RGL-153126
Price: 10.00 EUR
Availability: InStock

Riegler ✓ Original product Brand new Made in Italy

This bypass valve feeds additional air into the EB 80 island at a valve position, port Ø 8 mm. It boosts supply and exhaust or feeds special circuits.

Net

€10.00

excl. VAT

Item RGL-153126

Manufacturer no. 708203Y8

Question about this item

Datasheet (PDF) User manual 3 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

More air exactly where it is needed: bypass element 708203Y8 sits on the base plate in valve format and works up to 10 bar.

Advantages

Additional air supply, port Ø 8 mm
Boosts supply and exhaust or feeds special circuits
Operating pressure up to 10 bar
Protection rating IP 65

Applications

Valve islands for assembly, handling and packaging machines that are built modularly and may be extended later.

Technical data

Type no.	708203Y8
Seal material	NBR
Version	bypass valve (additional air supply)
Ambient temperature	-10 to 50 °C
Housing	technopolymer

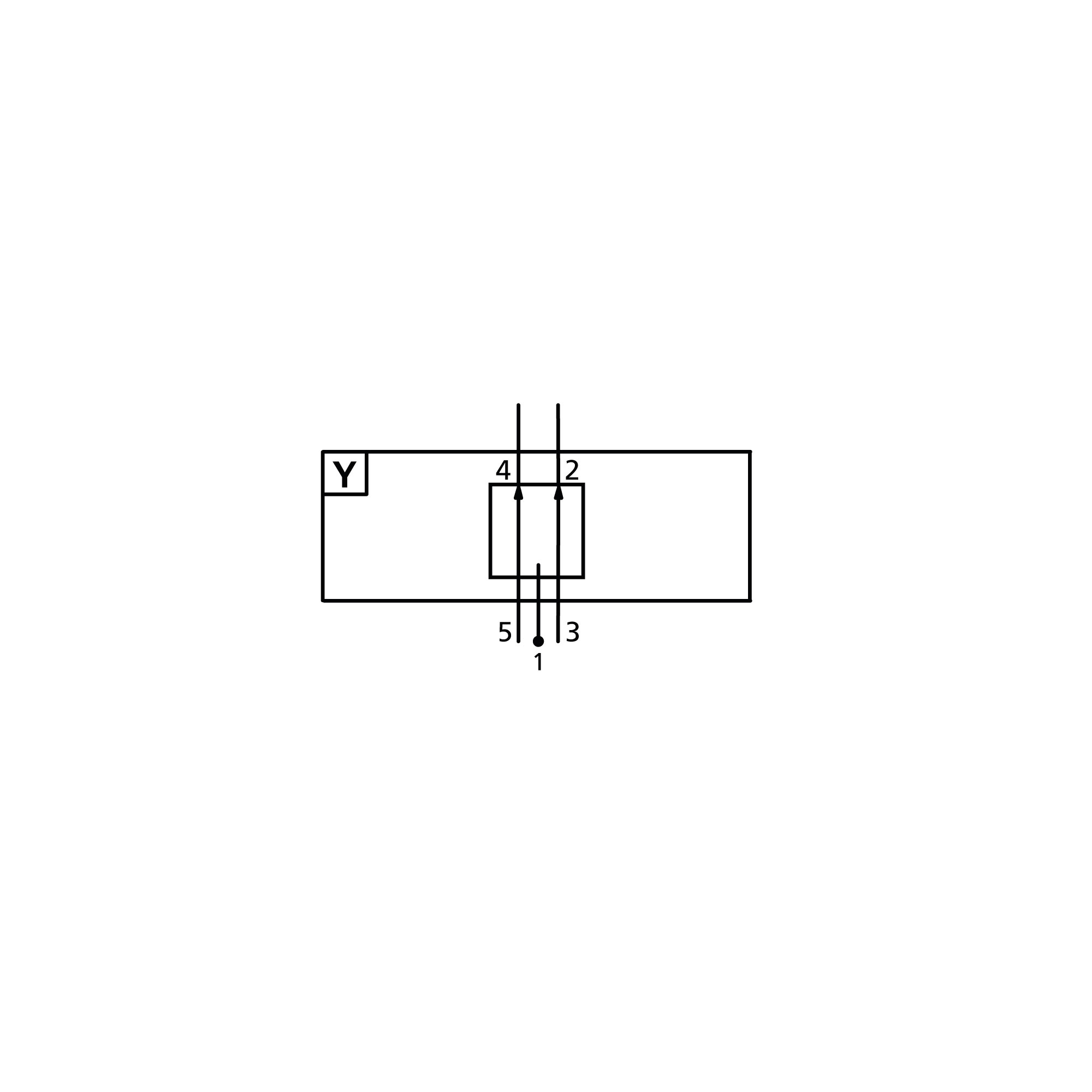

Module type	Y
Module description	valve
Medium	filtered, unlubricated compressed air
Maximum operating pressure with internal pilot air	10 bar
Maximum operating pressure with external pilot air	10 bar
Required purity class to ISO 8573-1	4.7.3
Protection rating	IP 65
Series	EB 80
Weight	0.05 kg
Manufacturer	Riegler
Hersteller-Nr	708203Y8
EAN	4047322817882
Zolltarifnummer	84818099
GPSR Herstellerdaten	Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de
Artikelzustand	New
Artikel-Authentizität	Original product
Country of Manufacture	Italy
Ausführung	Bypass-Ventil (zusätzliche Lufteinspeisung)
Material	Technopolymer
For hose OD [mm]	8
Housing material	Technopolymer
Operating conditions	ISO 8573-1
Betriebsdruck max [bar]	10
Temperaturbereich	-10-50 °C
Temperature (max.)	50
