For a metering movement of a few litres per minute the spool has to be rated tightly, otherwise control turns coarse. The 4WRPFH6CB04L runs 4 l/min nominal flow, carries spool symbol C and sits on the bus over PROFINET RT.

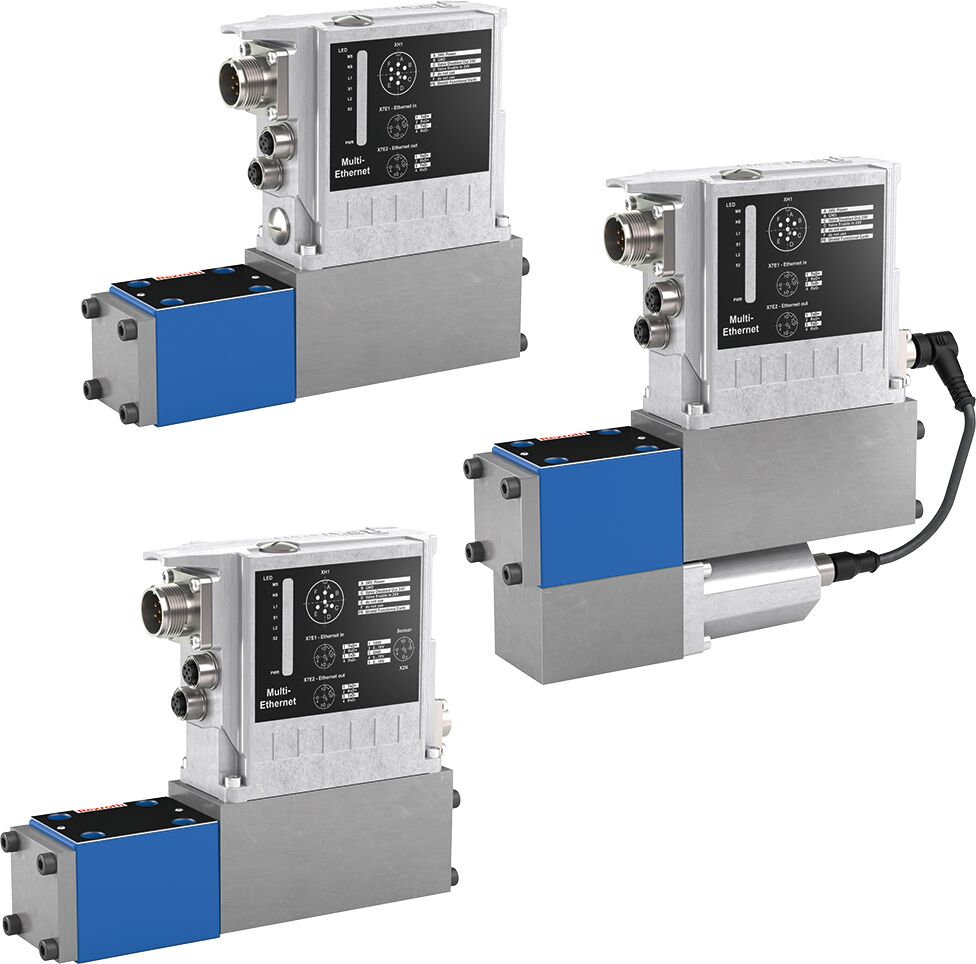

Regelventil 4WRPFH6CB04L-3X/M00/24ND95 - Bosch Rexroth R901575587
BOSCH REXROTH
Original product
Net price (excl. VAT)
€4,021.70
Item
BRR-R901575587
Manufacturer no.
R901575587
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.R901575587
Country of originGermany
ConditionNew
Artikel
BRR-R901575587
Frequently Bought Together
-
This Item:
€4,021.70
-
Pressure Relief Valve DBW10B2-5X/350-6EG24N9K4/12=CSA - Bosch Rexroth R900708275
€1,887.46
-
Pressure Relief Valve DB20G2-5X/315XYU - Bosch Rexroth R900244100
€811.79
Total price
The resolution of a metering movement depends on how well the command value range matches the flow actually needed. The 4WRPFH6CB04L-3X is rated for 4 l/min nominal flow, direct actuated in size 6 and carries spool symbol C.
Benefits
- Nominal flow 4 l/min, maximum flow 8 l/min
- Direct actuated, spool symbol C, four switching positions
- PROFINET RT, on-board electronics, 24 VDC supply
- Maximum operating pressure 350 bar at 3.1 kg weight
- UKCA conformity including electromagnetic compatibility to SI2016/1091
- ISO 4401-03-02-0-05 interface, NBR seals, hydraulic fluid HL
Technical data
| Conformity description | UKCA - Electromagnetic compatibility (EMC) SI2016/1091 |
| Connection diagram | ISO 4401-03-02-0-05 |
| Max. flow | 8 l/min |
| Product family | 4WRPFH |
| Type of connection | Subplate mounting |
| Nominal flow | 4 l/min |
| Conformity | UKCA |
| Supply voltage | 24 VDC |
| Connectivity | Digital, PROFINET RT |
| Number of switching positions | 4 |
| Hydraulic fluid | HL |
| Number of ports | 4 |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Spool symbol | Symbol C |
| Operating pressure, max. | 350 bar |
| Size | 6 |
| Seals | NBR |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Type of actuation | Electrical with on-board electronics |
| Weight | 3.1 kg |
Application
Meant for small cylinders and metering sections where flow has to be resolved finely. Over PROFINET RT the controller issues the command value cyclically. Internal spool position feedback makes the spool follow that value.
Manufacturer
Bosch Rexroth, material number R901575587, type 4WRPFH6CB04L-3X/M00/24ND95.
| Hersteller-Nr | R901575587 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 3.100000 |
| GPSR Herstellerdaten | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
