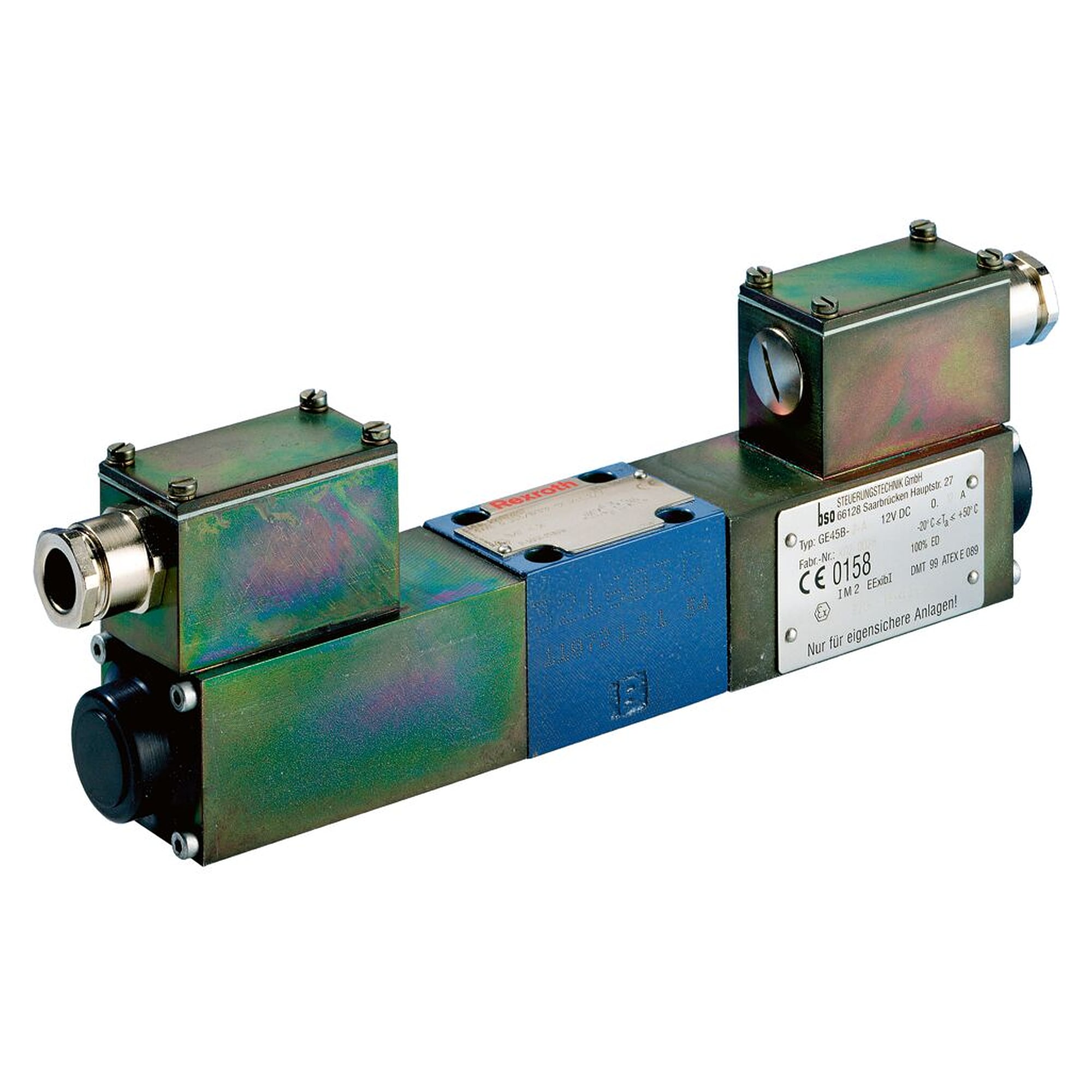

Directional Spool Valve 4WE6J5X/BG12-13NXHCKL/B08V - Bosch Rexroth R901494643

Name: Directional Spool Valve 4WE6J5X/BG12-13NXHCKL/B08V - Bosch Rexroth R901494643
Brand: Bosch Rexroth
SKU: BRR-R901494643
Price: 3183.13 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

In hazardous areas it is not only valve function that counts but the approval of the solenoid. The 4WE6J5X/BG12-13NXHCKL/B08V is filed under ATEX, switches up to 20 l/min at 210 bar and runs on 12 VDC. Size 6, spool symbol J, 4.31 kg.

Net

€3,183.13

excl. VAT

Item BRR-R901494643

Manufacturer no. R901494643

Question about this item

Datasheet (PDF) User manual 11 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

A directional valve in a hazardous area stands or falls on its solenoid and the way it is wired. The 4WE6J5X/BG12-13NXHCKL/B08V is direct actuated, filed under ATEX Directive 2014/34/EU at a notified body, and switches up to 20 l/min at 210 bar maximum operating pressure.

Benefits

ATEX filing under Directive 2014/34/EU, solenoid as well as connection line belong to this version.
20 l/min flow at 210 bar in size 6 on the ISO 4401-03-02-0-05 pattern.
Spool symbol J, three switching positions, manual override for setup work.
12 VDC supply, connector with solenoid plus a 2 m connection line.
FKM seals, 4.31 kg, four ports in subplate mounting, HL fluid.

Application

The valve goes into equipment inside hazardous zones, for example in chemical plants, paint shops and oil as well as gas installations. Its permanently fitted 2 m line removes one terminal point out in the field. Running on 12 VDC matches controllers built around that extra-low voltage.

Manufacturer

Bosch Rexroth, material number R901494643. Product family WE6../.B.X, version 4WE6J5X/BG12-13NXHCKL/B08V.

Technical data

Conformity description	ATEX - Directive 2014/34/EU storage at a notified body
Connection diagram	ISO 4401-03-02-0-05
Max. flow	20 l/min
Product family	WE6../.B.X
Type of connection	Subplate mounting
Conformity	ATEX
Supply voltage	12 VDC
Number of switching positions	3
Hydraulic fluid	HL
Number of ports	4
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
Spool symbol	Symbol J
Operating pressure, max.	210 bar
Size	6
Seals	FKM
Electrical connector	Connector with solenoid and 2 m connection line
Type of actuation	with solenoid actuation
Weight	4.31 kg
Manufacturer	Bosch Rexroth
Hersteller-Nr	R901494643
Zolltarifnummer	84812010
GPSR Herstellerdaten	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Artikelzustand	New
Artikel-Authentizität	Original product
Country of Manufacture	Germany

Downloads

Datasheet

Datasheet (PDF) PDF
Directional spool valves, direct operated (RE 23178) PDF, 1.2 MB, 28 p. EN
Directional spool valves, direct operated, with solenoid actuation (RE 23177) PDF, 0.6 MB, 16 p. EN
Directional spool valves, pilot-operated (RE 24751) PDF, 1.3 MB, 40 p. EN
Proportional directional valve, pilot-operated (RE 29115) PDF, 1.5 MB, 28 p. EN
Proportional-Wegeventil, vorgesteuert, ohne elektrische Wegrückführung, mit oder ohne integrierter (RD 29115) PDF, 1.5 MB, 28 p. DE
Wege-Schieberventile, direktgesteuert, mit Magnetbetätigung PDF, 1.2 MB, 28 p. DE
Wege-Schieberventile, direktgesteuert, mit Magnetbetätigung (RD 23177) PDF, 0.6 MB, 16 p. DE
Wege-Schieberventile, vorgesteuert, mit hydraulischer oder elektro-hydraulischer Betätigung (RD 24751) PDF, 1.6 MB, 40 p. DE
Distributeurs à tiroir, à commande directe, à commande par électroaimant (RF 23177) PDF, 0.6 MB, 16 p. FR

User Manual

Directional spool valves (RE 23177-XH) PDF, 1.6 MB, 48 p. EN
