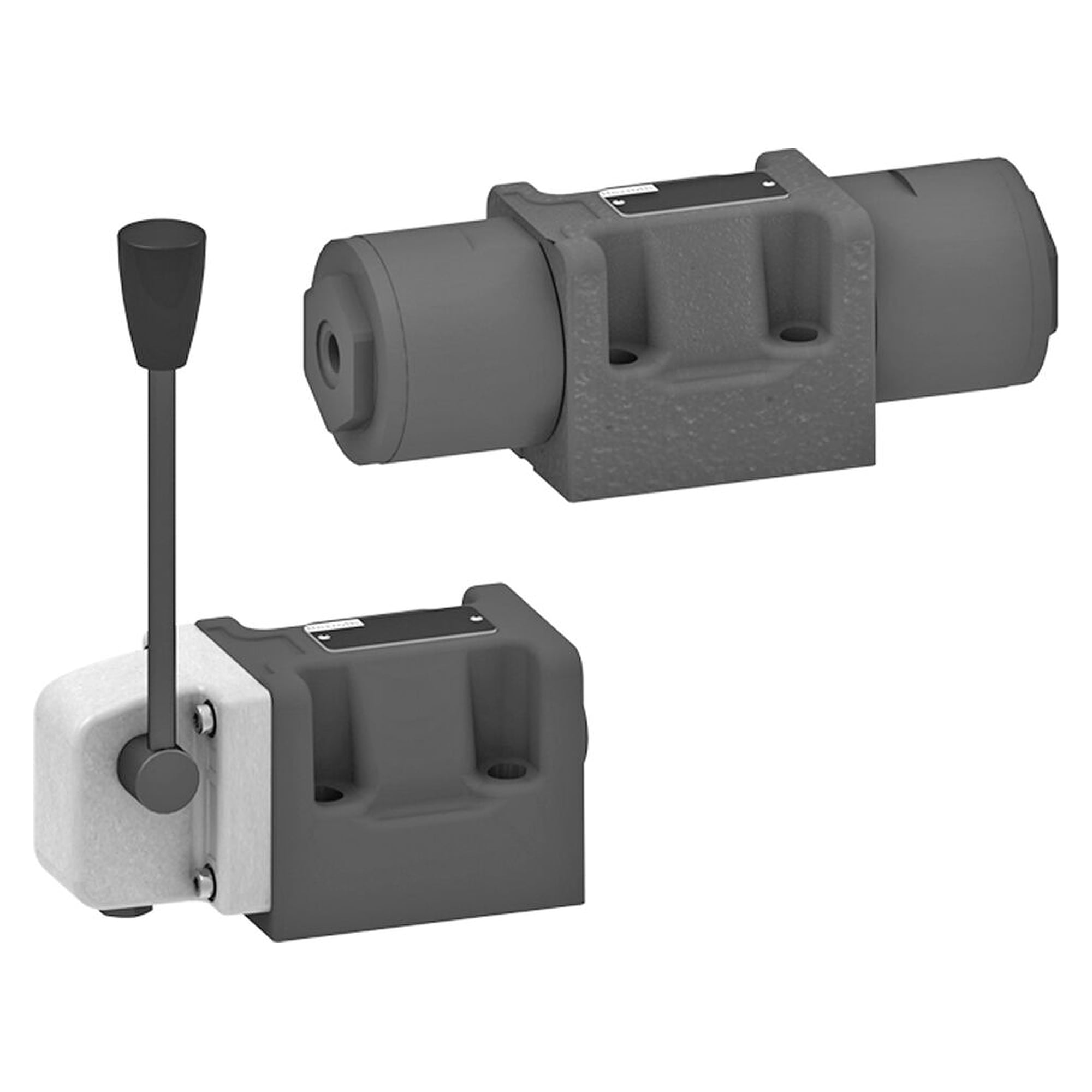

Foto folgt: Wege-Schieberventil 4WE10MB5X/OFEG205N9K4/M

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Directional Spool Valve 4WE10MB5X/OFEG205N9K4/M - Bosch Rexroth R901436455

Name: Directional Spool Valve 4WE10MB5X/OFEG205N9K4/M - Bosch Rexroth R901436455
Brand: Bosch Rexroth
SKU: BRR-R901436455
Price: 418.57 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

Two switching positions are enough when a cylinder only alternates between two end positions. This solenoid-operated directional spool valve in size 10 does that in spool symbol MB at up to 75 l/min and 350 bar maximum operating pressure, switched at 205 V DC.

Net

€418.57

excl. VAT

Item BRR-R901436455

Manufacturer no. R901436455

Question about this item

Datasheet (PDF) User manual 10 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

A simple change between two end positions needs only a two-position design. This directly operated directional spool valve in size 10 switches up to 75 l/min volume flow in spool symbol MB.

Benefits

Two switching positions in spool symbol MB across four ports
75 l/min maximum volume flow at 350 bar maximum operating pressure
205 V DC supply, 3-pole (2 + PE) connector to EN 175301-803
NBR seals for HL hydraulic fluid
5.2 kg weight on mounting pattern ISO 4401-05-04-0-05, UKCA conformity

Application

The two-position variant serves clamping cylinders, flaps and diverters that only know open and closed. The smaller flow of 75 l/min suits short strokes. Direct actuation saves the pilot stage and with it installed height.

Manufacturer

Bosch Rexroth, material number R901436455.

Technical data

Conformity description	UKCA - Low-Voltage Directive SI2016/1091
Connection diagram	ISO 4401-05-04-0-05
Max. flow	75 l/min
Product family	WE10../E
Type of connection	Subplate mounting
Conformity	UKCA
Supply voltage	205 VDC
Number of switching positions	2
Hydraulic fluid	HL
Number of ports	4
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
Spool symbol	Symbol MB
Operating pressure, max.	350 bar
Size	10
Seals	NBR
Electrical connector	Connector, 3-pole (2 + PE)
Type of actuation	with solenoid actuation
Weight	5.2 kg
Manufacturer	Bosch Rexroth
Hersteller-Nr	R901436455
Zolltarifnummer	84812010
GPSR Herstellerdaten	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Artikelzustand	New
Artikel-Authentizität	Original product
Country of Manufacture	Germany

Downloads

Datasheet

Datasheet (PDF) PDF
Directional spool valves, direct operated (RE 23178) PDF, 1.2 MB, 28 p. EN
Directional spool valves, direct operated (RE 23340) PDF, 1.1 MB, 32 p. EN
Directional spool valves, pilot-operated (RE 24751) PDF, 1.3 MB, 40 p. EN
Proportional directional valve, pilot-operated (RE 29115) PDF, 1.5 MB, 28 p. EN
Proportional-Wegeventil, vorgesteuert, ohne elektrische Wegrückführung, mit oder ohne integrierter (RD 29115) PDF, 1.5 MB, 28 p. DE
Wege-Schieberventile, direktgesteuert, mit Magnetbetätigung PDF, 1.2 MB, 28 p. DE
Wege-Schieberventile, direktgesteuert, mit Magnetbetätigung (RD 23340) PDF, 1.1 MB, 32 p. DE
Wege-Schieberventile, vorgesteuert, mit hydraulischer oder elektro-hydraulischer Betätigung (RD 24751) PDF, 1.6 MB, 40 p. DE

User Manual

Hydraulic valves and hydroelectric pressure switches (RE 07600-B) PDF, 0.6 MB, 52 p. EN
