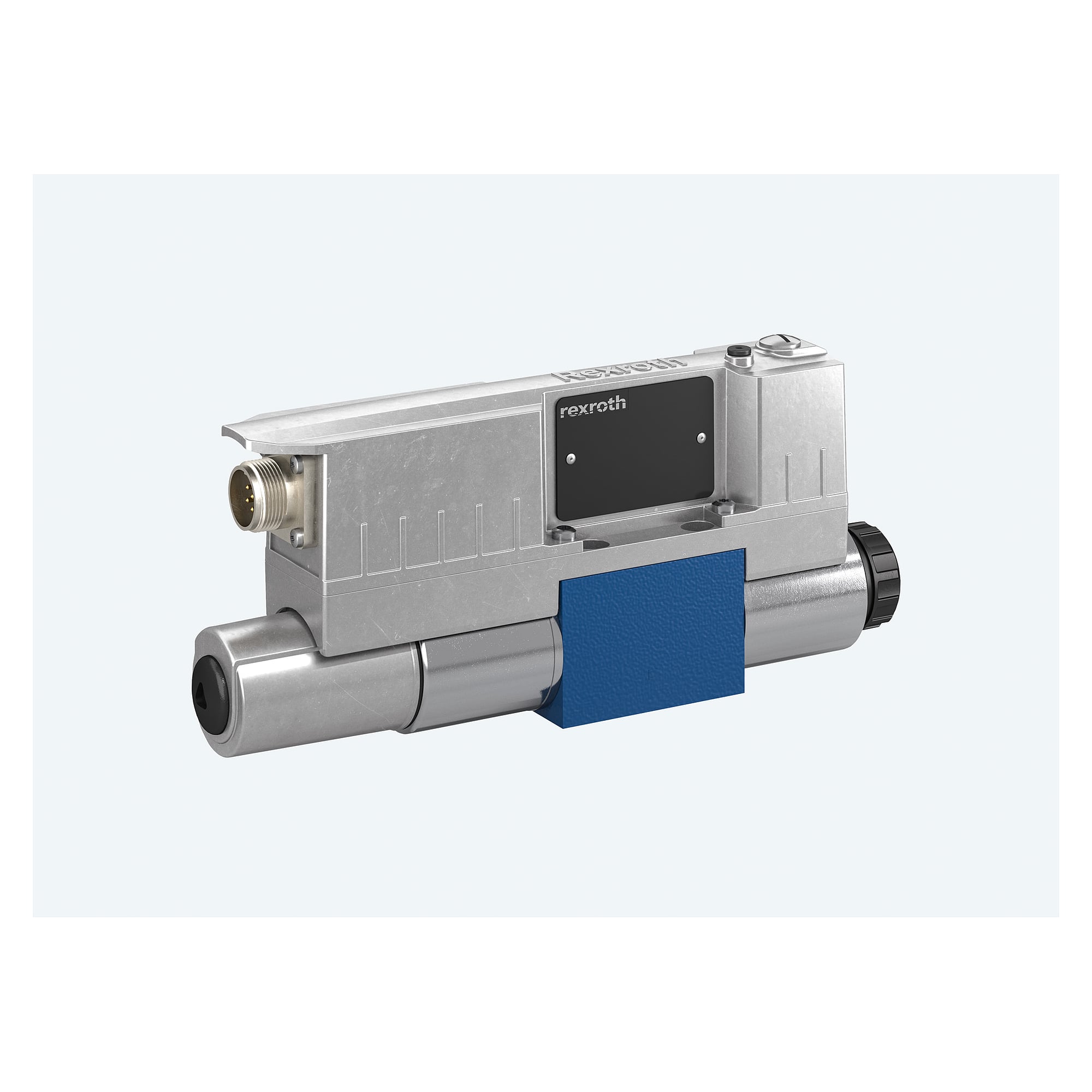

Proportional Directional Valve 4WRA10EA60-2X/G24N9K4/V - Bosch Rexroth R900917193

Name: Proportional Directional Valve 4WRA10EA60-2X/G24N9K4/V - Bosch Rexroth R900917193
Brand: Bosch Rexroth
SKU: BRR-R900917193
Price: 1075.55 EUR
Availability: InStock

Bosch Rexroth ✓ Original product Brand new Made in Germany

When an axis has to travel briskly and still stop gently, the nominal flow decides. The 4WRA10EA60-2X/G24N9K4/V offers 60 l/min at spool symbol EA, works up to 315 bar and weighs 4.35 kg. The port pattern follows ISO 4401-05-04-0-05.

Net

€1,075.55

excl. VAT

Item BRR-R900917193

Manufacturer no. R900917193

Question about this item

Datasheet (PDF) User manual 11 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Size 10 proportional directional valve with spool symbol EA and a nominal flow of 60 l/min for stepless control of direction and speed.

Key benefits

Nominal flow of 60 l/min, maximum flow of 75 l/min
Spool symbol EA with 2 switching positions and 4 ports
Working pressure up to 315 bar, FKM seals
Electrical control with external electronics, supply voltage of 24 V DC
Mass of 4.35 kg, connection diagram ISO 4401-05-04-0-05

Application

Valves like this run on lifting and feed axes whose cycle demands short travel times. Ramps in the amplifier limit acceleration and deceleration. The FKM seals tolerate raised oil temperatures.

Manufacturer

In the Bosch Rexroth catalogue the version is held under material number R900917193. Delivery is original product.

Technical data

Connection diagram	ISO 4401-05-04-0-05
Max. flow	75 l/min
Product family	4WRA.6,10
Type of connection	Subplate mounting
Nominal flow	60 l/min
Supply voltage	24 VDC
Number of switching positions	2
Hydraulic fluid	HL
Number of ports	4
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
Spool symbol	Symbol EA
Operating pressure, max.	315 bar
Size	10
Seals	FKM
Electrical connector	Connector, 3-pole (2 + PE)
Type of actuation	Electrical with external electronics
Weight	4.35 kg
Weight	4.350000
Manufacturer	Bosch Rexroth
Hersteller-Nr	R900917193
Zolltarifnummer	84812010
GPSR Herstellerdaten	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Artikelzustand	New
Artikel-Authentizität	Original product
Country of Manufacture	Germany

Downloads

Datasheet

Datasheet (PDF) PDF
4/2- and 4/3-way proportional (RE 29055) PDF, 0.2 MB, 16 p. EN
Directional spool valves, direct operated (RE 23178) PDF, 1.2 MB, 28 p. EN
Directional spool valves, pilot-operated (RE 24751) PDF, 1.3 MB, 40 p. EN
Proportional directional valve, pilot-operated (RE 29115) PDF, 1.5 MB, 28 p. EN
Proportional-Wegeventil, vorgesteuert, ohne elektrische Wegrückführung, mit oder ohne integrierter (RD 29115) PDF, 1.5 MB, 28 p. DE
Wege-Schieberventile, direktgesteuert, mit Magnetbetätigung PDF, 1.2 MB, 28 p. DE
Wege-Schieberventile, vorgesteuert, mit hydraulischer oder elektro-hydraulischer Betätigung (RD 24751) PDF, 1.6 MB, 40 p. DE
und 4/3-Proportional-Wegeventile direktgesteuert, ohne elektri (RD 29055) PDF, 0.2 MB, 16 p. DE
Distributeurs proportionnels à (RF 29055) PDF, 0.2 MB, 16 p. FR

User Manual

Hydraulic valves and hydroelectric pressure switches (RE 07600-B) PDF, 0.6 MB, 52 p. EN
