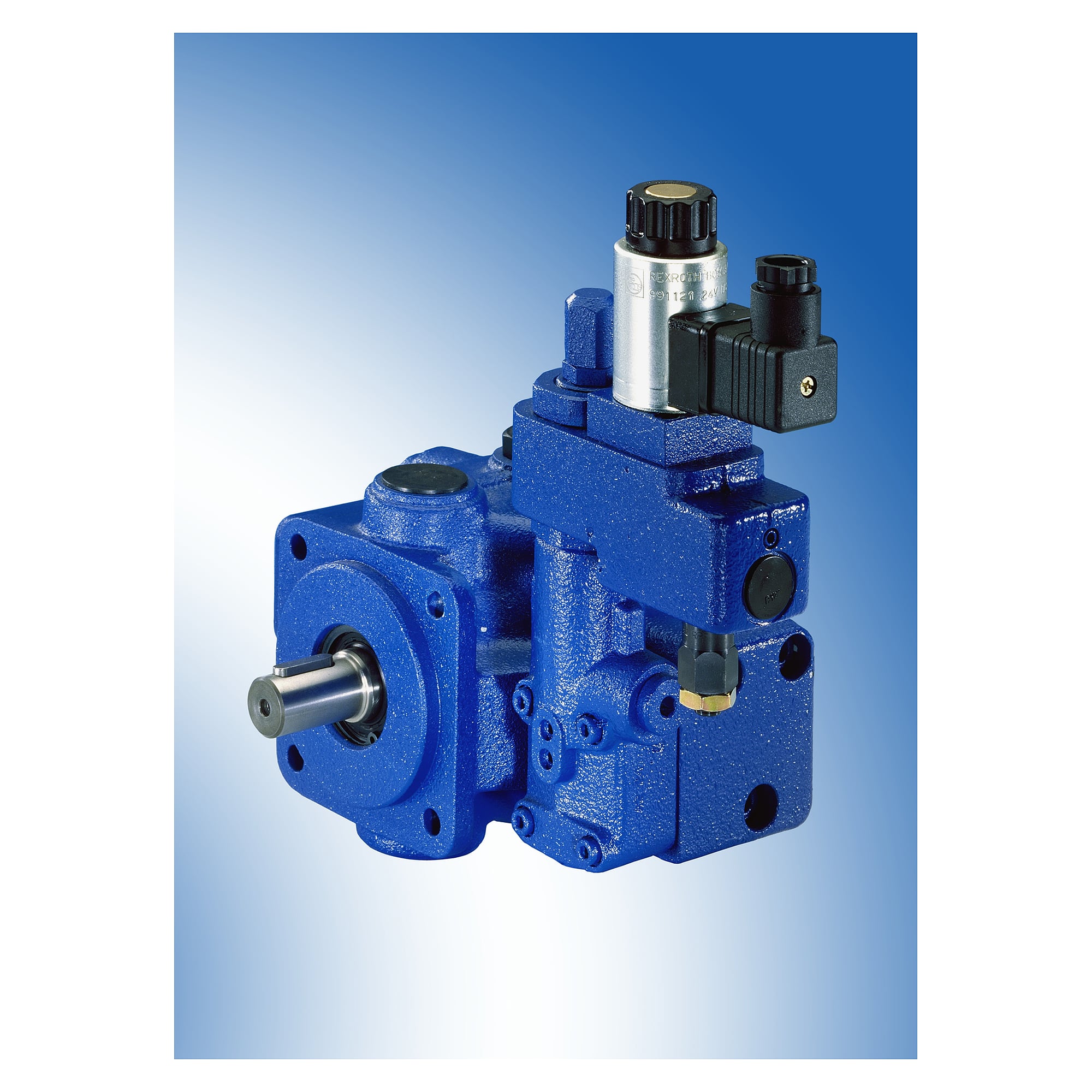

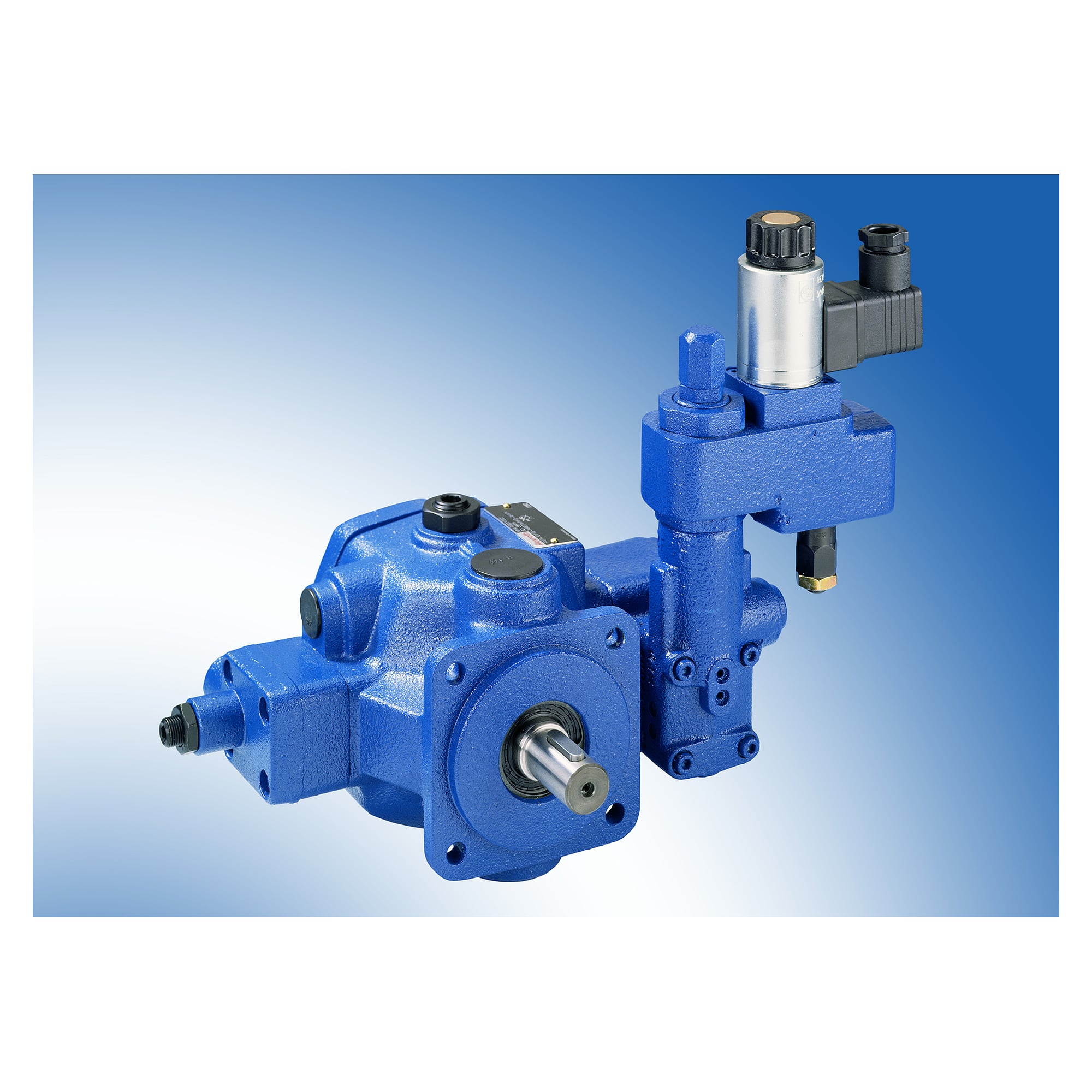

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Variable displacement vane pump size 14 cm³, 21 l/min, 160 bar, clockwise rotation, NBR, PV7-1X/10-14RE01MW0-16WH - Bosch Rexroth R900741002

Bosch Rexroth ✓ Original product Brand new Made in Germany

Up to 160 bar operating pressure and 21 l/min maximum flow: that is what the Bosch Rexroth variable displacement vane pump PV7-1X/10-14RE01MW0-16WH offers. Low hysteresis with high repeatability gives precise control behaviour at a low noise and pulsation level.

Net
€2,658.27
excl. VAT
Item BRR-R900741002
Manufacturer no. R900741002
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Bosch Rexroth variable displacement vane pump PV7-1X/10-14RE01MW0-16WH works at up to 160 bar and up to 21 l/min, its size is 14 cm³.

Benefits

  • Rated for a maximum operating pressure of 160 bar
  • Size 14 cm³ for up to 21 l/min
  • Precise control behaviour through low hysteresis and high repeatability
  • Low noise and pulsation level, flexibly combinable with other Rexroth pumps
  • 4-hole mounting flange 80B4HW according to ISO 3019-2, shaft end cylindrical Ø 20 mm with fitting key, ISO 3019-2
  • NBR seals for HLP, HLPD, HVLP, HVLPD

Applications

In industrial hydraulic systems up to 160 bar the PV7-1X/10-14RE01MW0-16WH in size 14 cm³ works as a variable displacement pump. A further pump can be mounted on the through-drive of the PV7-1X/10-14RE01MW0-16WH. Direction of rotation: clockwise rotation. When replacing, quote material number R900741002.

Technical data

TypePV7-1X/10-14RE01MW0-16WH
Material numberR900741002
ManufacturerBosch Rexroth
Product typeVariable displacement vane pump
SeriesPV7
Size14 cm³
Displacement typevariable
Max. flow21 l/min
Operating pressure max.160 bar
Direction of rotationClockwise rotation
Mounting flange4-hole mounting flange 80B4HW according to ISO 3019-2
Shaft endCylindrical Ø 20 mm with fitting key, ISO 3019-2
Through-drivewith
SealsNBR
Hydraulic fluidHLP, HLPD, HVLP, HVLPD
Weight12.35 kg
Hersteller-NrR900741002
Zolltarifnummer84136061
GPSR HerstellerdatenBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Country of ManufactureGermany
Seal materialNBR
NormISO 3019-2
Betriebsdruck max [bar]160
