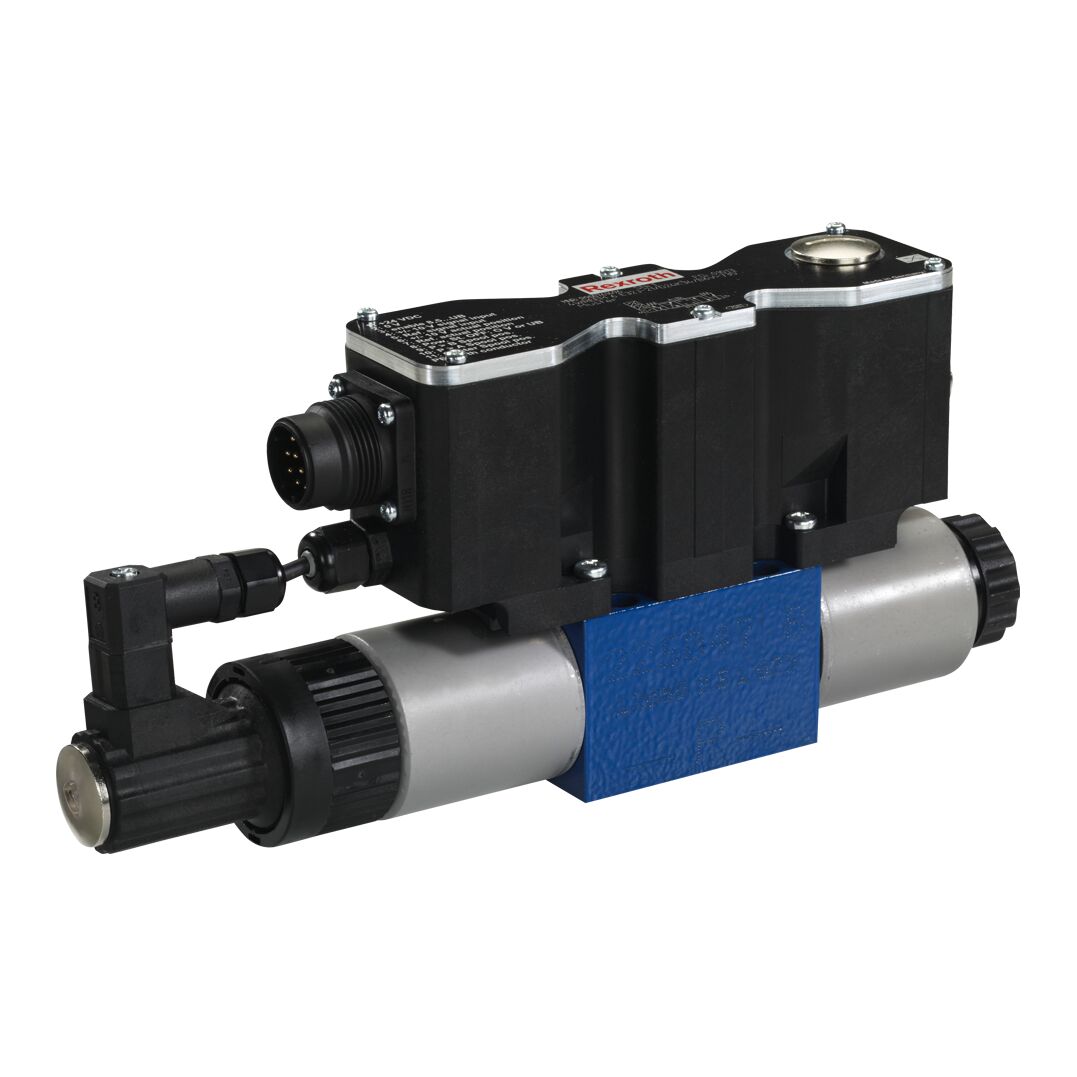

Proportional Directional Valve 4WREEM6E32-2X/G24K34/B6V - Bosch Rexroth R900707192

Positioning accuracy comes from measuring spool position and correcting it right away. The 4WREEM6E32-2X/G24K34/B6V does that with on-board electronics and internal position feedback, at 32 l/min nominal flow and 315 bar maximum operating pressure.

Benefits

• 32 l/min nominal flow, up to 80 l/min peak flow in size 6.
• On-board electronics with internal spool position feedback, analog control by a ±10 V command value.
• 315 bar maximum operating pressure on the ISO 4401-03-02-0-05 pattern.
• Direct actuated, 3 switching positions, 24 VDC supply.
• 2.54 kg weight, FKM seals for HL hydraulic fluid.

Technical data

Applications

The valve drives feed axes, test rigs and clamping systems that have to follow a defined ramp. With the electronics inside the valve, a separate amplifier card in the cabinet is unnecessary and a single signal line carrying the command value is enough. The symbol E version covers applications that need a closed centre position.

Manufacturer

Bosch Rexroth, material number R900707192, product family 4WREEM6,10. The electrical interface is described as a 7-pole (6 + PE) plug to EN 175201-804.
