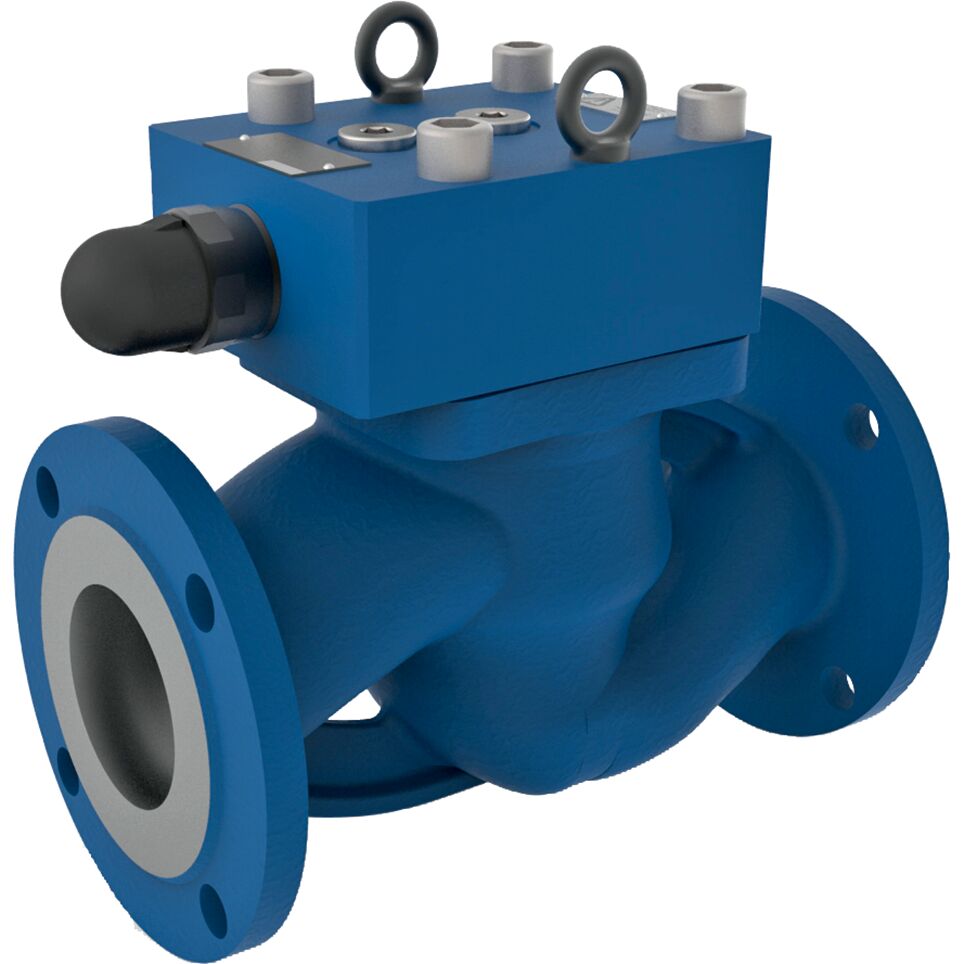

Pressure Relief Valve L-DB100F2-3X/16XY - Bosch Rexroth R900584472

The narrower the adjustment range, the more precisely a low back pressure can be set. The L-DB100F2-3X/16XY works between 7 and 16 bar and relieves up to 6000 l/min through 4 ports.

Benefits

• Pressure adjustment range 7 to 16 bar for fine setting in the low pressure region.
• 6000 l/min maximum flow in size 100.
• Flange connection with 4 ports, operating pressure up to 25 bar.
• Pilot-operated poppet seat design with manual pressure adjustment.
• Internal hexagon with protective cap guards the value set.
• NBR seals for HL hydraulic fluid, mass 46.8 kg.

Applications

The valve is used in return and charge circuits of large hydraulic systems where a low holding pressure has to be kept accurately. The wide cross section keeps pressure loss small even at full flow. NBR seals are fitted for mineral oil of class HL.

Manufacturer

Bosch Rexroth, material number R900584472. The type code L-DB100F2-3X/16XY states the L-DB range in size 100, component series 3X and an adjustment range up to 16 bar.
