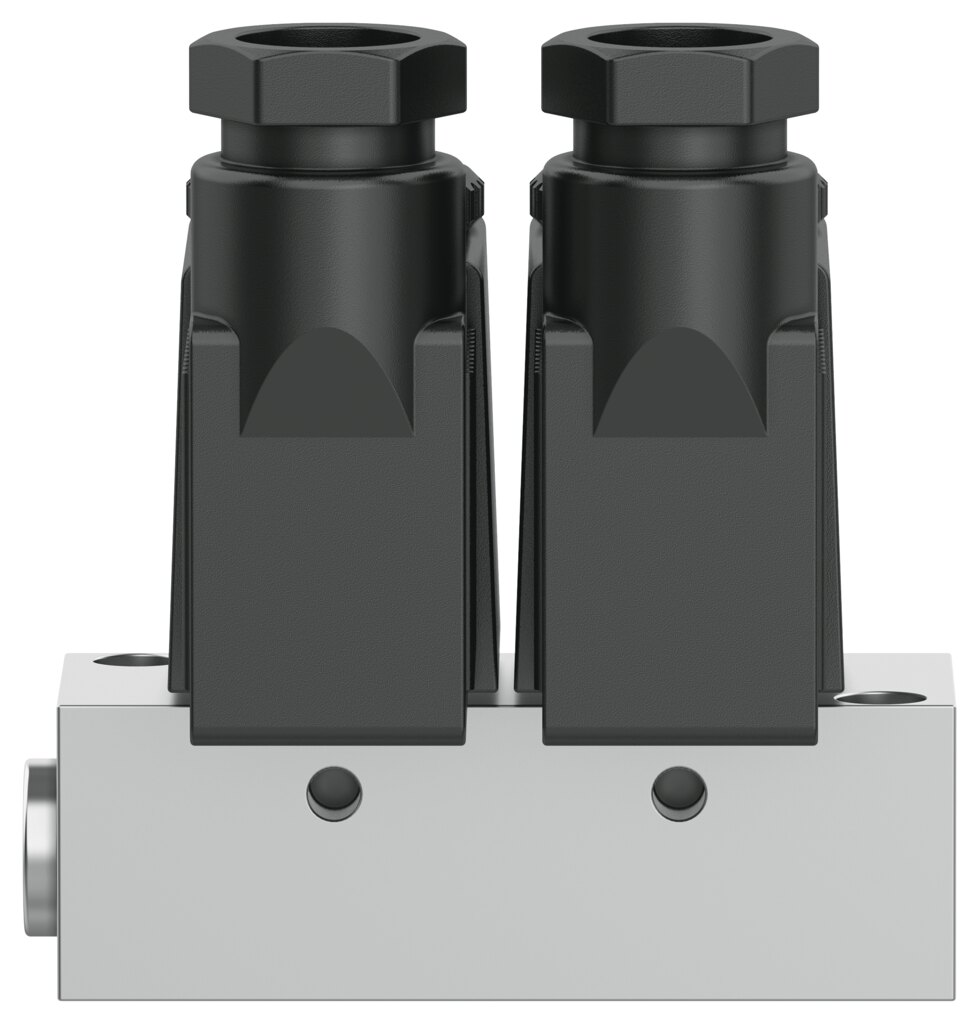

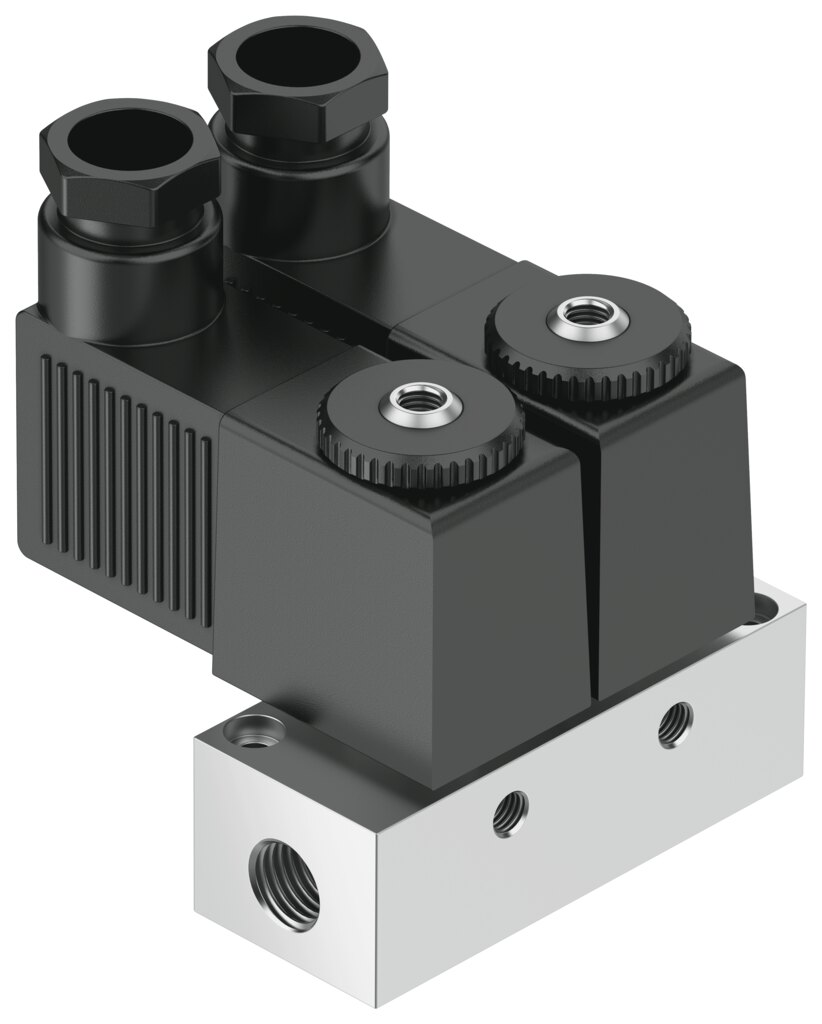

2x 3/2-way solenoid valve NC, 50 l/min, port M5 BMFH-2-3-M5 - Festo 4522
The Festo solenoid valve BMFH-2-3-M5 is designed for compressed air at operating pressure 0 to 8 bar. Standard nominal flow rate 50 l/min, port M5. Weight 0.115 kg, degree of protection IP65.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo solenoid valve BMFH-2-3-M5 achieves 50 l/min standard nominal flow rate at operating pressure 0 to 8 bar. Design: poppet valve with return spring.
Why this valve
- Operating pressure 0 to 8 bar
- Standard nominal flow rate 50 l/min
- Degree of protection IP65
- Reset by mechanical spring
Applications
The BMFH-2-3-M5 operates with compressed air to ISO 8573-1:2010 [7:-:-]. Lubrication possible, but must then be continued. Installation of the BMFH-2-3-M5: with through-hole, electrical connection plug. The BMFH-2-3-M5 operates at an ambient temperature of -5 to 40 °C and a medium temperature of -10 to 60 °C.
Technical data
| Feature | Value |
|---|---|
| Type | BMFH-2-3-M5 |
| Festo part number | 4522 |

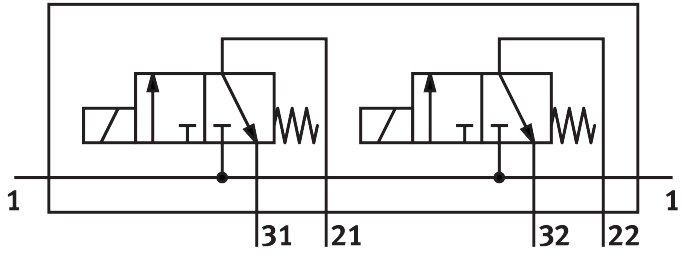

| Valve function | 2x3/2 closed monostable |
| Type of actuation | Electrical |
| Standard nominal flow rate (to DIN 1343) | 50 l/min |
| Pneumatic working port | M5 |
| Operating pressure | 0 to 8 bar |
| Design | Poppet valve with return spring |
| Type of reset | Mechanical spring |
| Degree of protection | IP65 |
| Nominal size | 1.3 mm |
| Sealing principle | Soft |
| Max. number of valve positions | 2 |
| Type of piloting | Direct |
| Pick-up power consumption | 7.5 W |
| Holding power consumption | 6 W |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| PWIS conformity | VDMA24364-B2-L |
| Medium temperature | -10 to 60 °C |
| Ambient temperature | -5 to 40 °C |
| Electrical connection | Plug |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | M5 |
| Material housing | Aluminium |
| Weight | 0.115 kg |
| Manufacturer | Festo |
| Hersteller-Nr | BMFH-2-3-M5 |
| EAN | 4052568110512 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium |
| Thread | M5 |
| Nominal size DN [mm] | 1,3 |
| Housing material | Aluminium |
| Function | 2x3/2 closed monostable |
| Flow rate [l/min] | 50 |
| Actuation type | Electrical |
| Medientemperatur [°C] | -10 bis 60 |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | M5 |
| Protection rating | IP65 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 40 |
