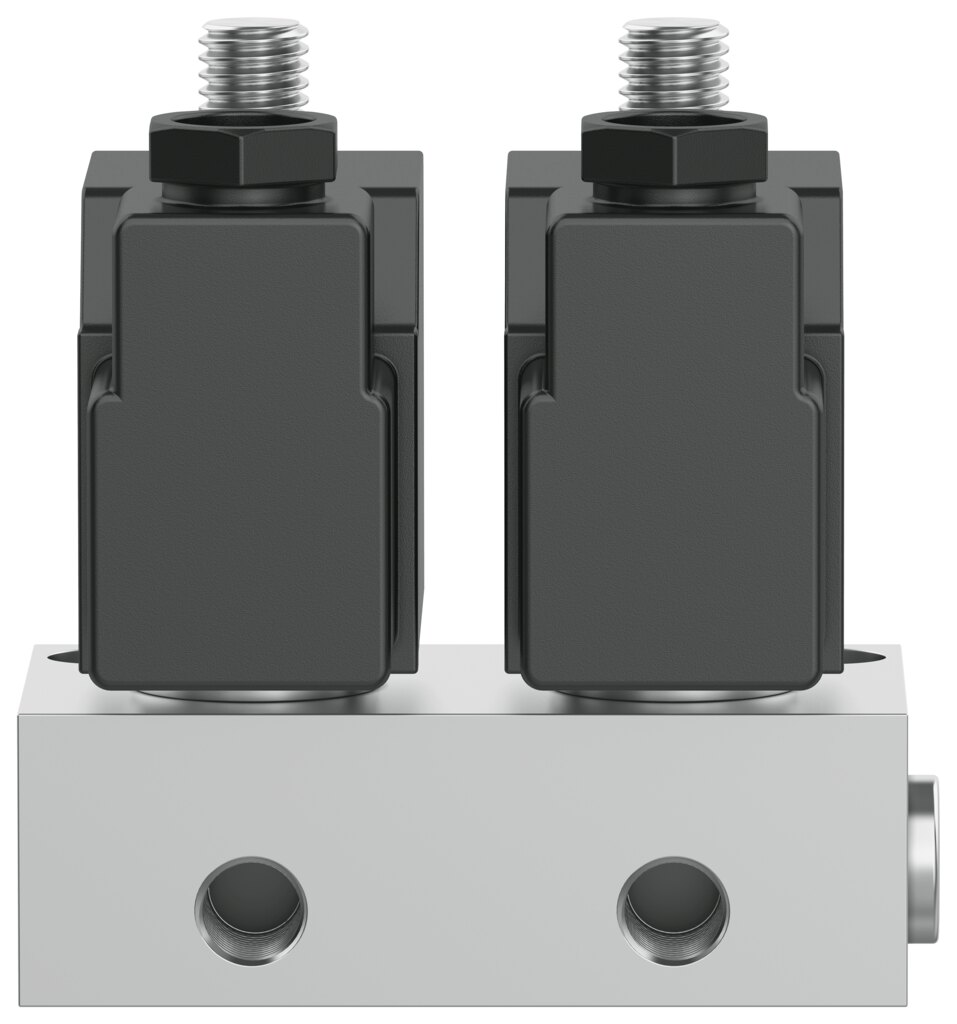

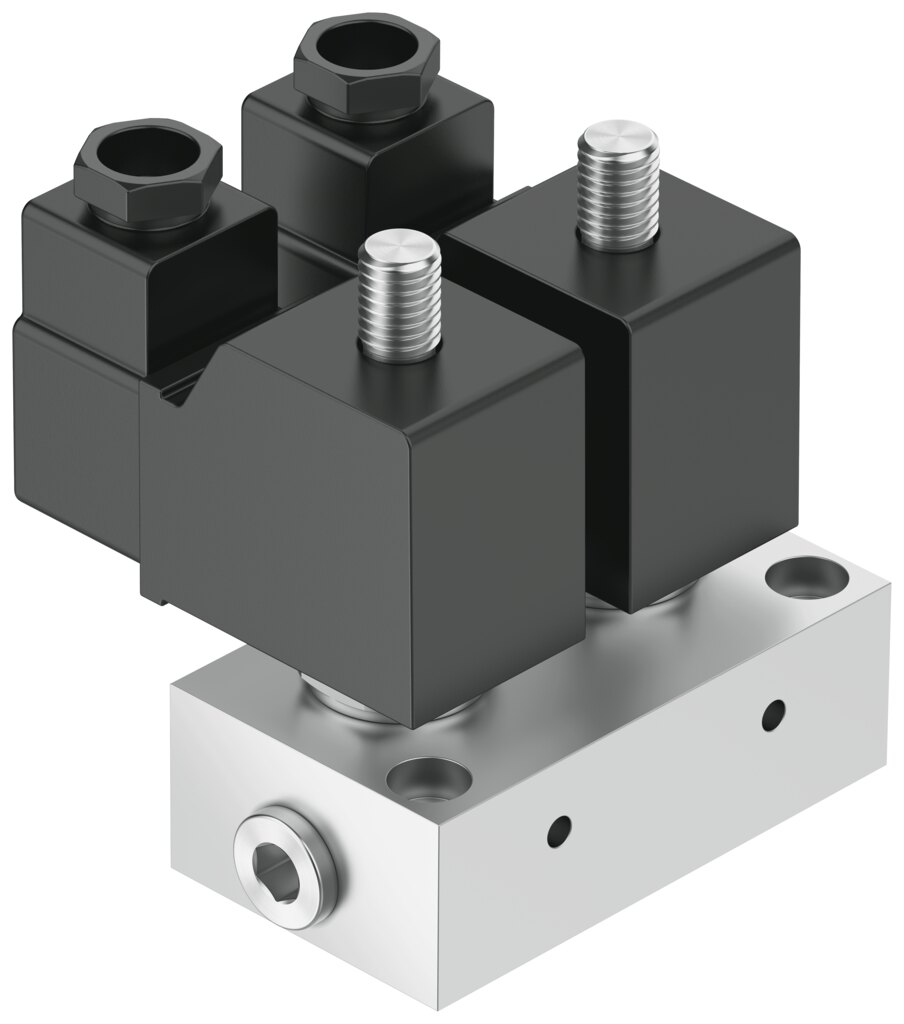

Solenoid valve 2x 3/2-way normally closed G1/4 BMCH-2-3-1/8 - Festo 6686
Solenoid valve BMCH-2-3-1/8 with 2x 3/2-way function, normally closed, standard nominal flow 160 l/min. Operating pressure -0.95 to 7 bar. Both 3/2-way functions are normally closed and switch independently of each other, for example for two single-acting cylinders.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 160 l/min standard nominal flow and 2.5 mm nominal size, the BMCH-2-3-1/8 solenoid valve works with direct actuation as a 2x 3/2-way valve, normally closed. Both 3/2-way functions are normally closed and switch independently of each other, for example for two single-acting cylinders.
Benefits
- Standard nominal flow of 160 l/min at 2.5 mm nominal size.
- Up to 2 valve positions in one block, port 1 in G1/4.
- Operating pressure -0.95 to 7 bar, including vacuum, directly actuated.
- Power consumption of 30 W for pull-in and 22 W for holding, electrical connection via plug.
- IP65 degree of protection.
- Port assignment 1 in G1/4, 2 and 3 in G1/8.
Application and mounting
The BMCH-2-3-1/8 is connected via the G1/8 threaded ports and fastened through its through-holes. The BMCH-2-3-1/8 runs on compressed air to ISO 8573-1:2010 [7:4:4], lubricated operation is possible but must then be maintained.
Technical data
| Type | BMCH-2-3-1/8 |
|---|---|
| Festo part number | 6686 |

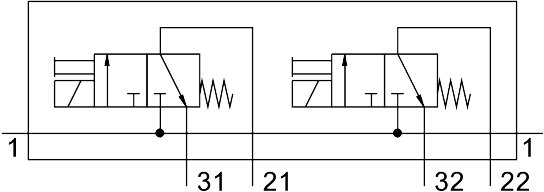

| Valve function | 2x 3/2-way, normally closed, monostable |
| Type of actuation | electrical |
| Standard nominal flow rate | 160 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | -0.95 to 7 bar |
| Design | poppet valve with return spring |
| Type of reset | mechanical spring |
| Degree of protection | IP65 |
| Nominal size | 2.5 mm |
| Sealing principle | soft |
| Maximum number of valve positions | 2 |
| Type of piloting | direct |
| Power consumption, pull-in | 30 W |
| Power consumption, holding | 22 W |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | lubricated operation possible (then required for all further operation) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Medium temperature | -10 to 60 °C |
| Ambient temperature | -5 to 40 °C |
| Product weight | 680 g |
| Electrical connection | plug |
| Type of mounting | with through-hole |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Housing material | aluminium |
| Weight | 0.37 kg |
| Manufacturer | Festo |
| Hersteller-Nr | BMCH-2-3-1/8 |
| EAN | 4052568110932 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Nominal size DN [mm] | 2,5 |
| Medium | Compressed air |
| Function | 2x3/2 closed monostable |
| Flow rate [l/min] | 160 |
| Actuation type | Electrical |
| Betriebsdruck max [bar] | 7 |
| Pneumatic connection | G1/4 |
| Protection rating | IP65 |
| Temperature (max.) | 40 |
