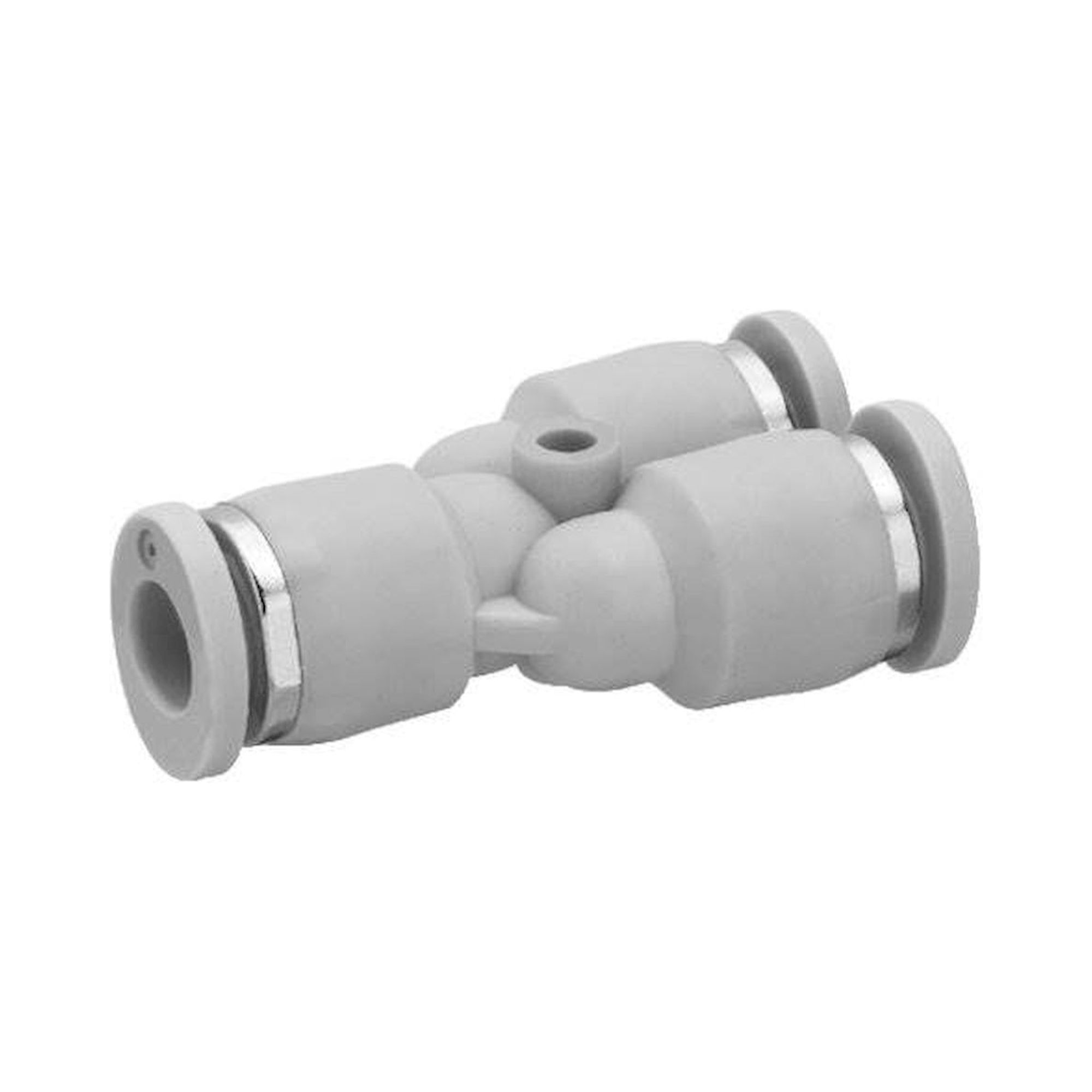

Reducing double Y-plug connector Ø 1/4 in QR1-S-RYK-D014 - Aventics R432000267
The Y shape routes two lines (Ø 1/4 in) close together and saves space at the consumer. Reducing double Y-plug connector QR1-S-RYK-D014 with push-in connections for Ø 1/4 in tube, working pressure -0.95 to 16 bar, ambient temperature -20 to 80 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For air lines with push-in connections for Ø 1/4 in tube: reducing double Y-plug connector QR1-S-RYK-D014 from the Aventics QR1-S Standard series in inch sizes, usable from -20 to 80 °C. The Y shape routes two lines (Ø 1/4 in) close together and saves space at the consumer.
Benefits QR1-S-RYK-D014
- Working pressure -0.95 to 16 bar, vacuum included.
- Ambient temperature -20 to 80 °C.
- Tooth lock washer in stainless steel grips the tube.
- Release ring in POM frees the tube.
- NBR seals.
- Housing in polyamide (PA).
Where it is used
Parallel supply of cylinders, grippers and nozzles, bundled lines in tight spaces. Port layout of the QR1-S-RYK-D014: Ø 1/4 in.
Technical data
| Fitting type | Reducing double Y-plug connector |
|---|---|
| Connection 1 | Push-in fitting Ø 1/4 in |
| Connection 2 | Push-in fitting Ø 1/4 in |
| Working pressure | -0.95 to 16 bar |
| Ambient temperature | -20 to 80 °C |
| Housing material | Polyamide (PA) |
| Seal material | Acrylonitrile butadiene rubber (NBR) |
| Release ring material | Polyoxymethylene (POM) |
| Release ring holder material | Die-cast zinc and brass |
| Tooth lock washer material | Stainless steel |
| Nominal flow Qn (series) | 60 to 875 l/min |
| Series | QR1-S Standard, inch |
| Type | QR1-S-RYK-D014 |
| Part number | R432000267 |
| Weight | 0.009 kg |
| Manufacturer | Aventics |
| Hersteller-Nr | R432000267 |
| Zolltarifnummer | 73072980 |
| GPSR Herstellerdaten | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Bauform | Y-Steckverbinder, reduzierend, doppelt |
| Working pressure max. [bar] | 16 |
| Medium | Compressed air |
| Betriebsdruck max [bar] | 16 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
