Angled plug-in connector stem Ø 3/8 in, tube Ø 3/8 in QR1-S-RVA-D038 - Aventics R432000191

Aventics ✓ Original product Brand new Made in Germany

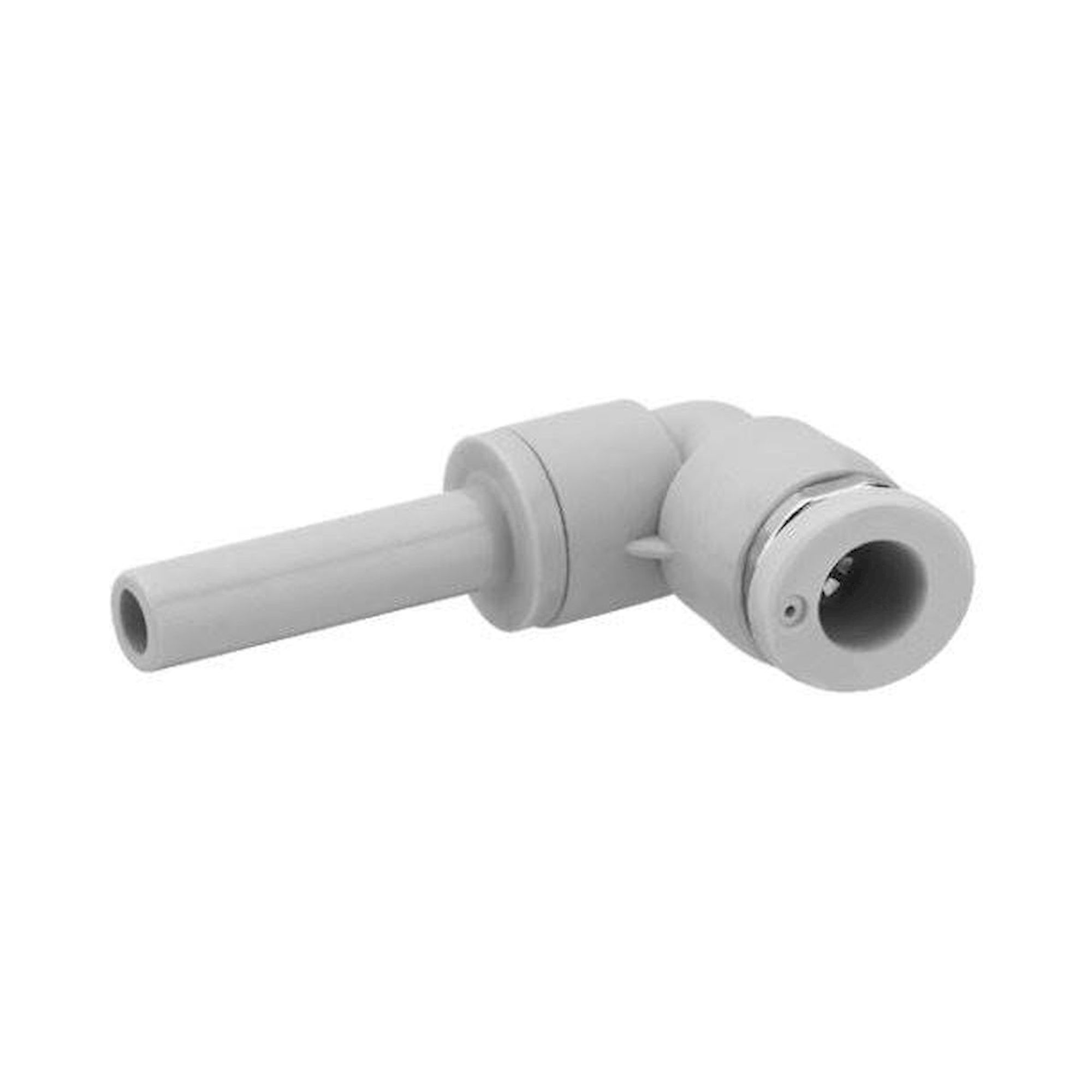

The 90 degree elbow (stem Ø 3/8 in, tube Ø 3/8 in) leads the tube away right at the device and avoids tight bend radii. Angled plug-in connector QR1-S-RVA-D038 with plug-in stem Ø 3/8 in and push-in connection for Ø 3/8 in tube, working pressure -0.95 to 16 bar, ambient temperature -20 to 80 °C.

Net
€8.88
excl. VAT
Item AVE-R432000191
Manufacturer no. R432000191
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Plug-in stem Ø 3/8 in and push-in connection for Ø 3/8 in tube in one part: angled plug-in connector QR1-S-RVA-D038 from the Aventics QR1-S Standard series in inch sizes, rated for -0.95 to 16 bar working pressure. The 90 degree elbow (stem Ø 3/8 in, tube Ø 3/8 in) leads the tube away right at the device and avoids tight bend radii.

Key benefits QR1-S-RVA-D038

  • Working pressure -0.95 to 16 bar, vacuum included.
  • Ambient temperature -20 to 80 °C.
  • Tooth lock washer in stainless steel grips the tube.
  • Release ring in POM frees the tube.
  • NBR seals.
  • Housing in polyamide (PA).

Applications

Connecting cylinders, valves and service units where there is little room in front of the port or line. Port layout of the QR1-S-RVA-D038: stem Ø 3/8 in, tube Ø 3/8 in.

Technical data

Fitting typeAngled plug-in connector
Connection 1Pin bushing Ø 3/8 in
Connection 2Push-in fitting Ø 3/8 in
Working pressure-0.95 to 16 bar
Ambient temperature-20 to 80 °C
Housing materialPolyamide (PA)
Seal materialAcrylonitrile butadiene rubber (NBR)
Release ring materialPolyoxymethylene (POM)
Release ring holder materialDie-cast zinc and brass
Tooth lock washer materialStainless steel
Nominal flow Qn (series)60 to 875 l/min
SeriesQR1-S Standard, inch
TypeQR1-S-RVA-D038
Part numberR432000191
Weight0.1 kg
ManufacturerAventics
Hersteller-NrR432000191
Zolltarifnummer73072980
GPSR HerstellerdatenAVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Country of ManufactureGermany
BauformWinkelsteckanschluss
Working pressure max. [bar]16
MediumCompressed air
Betriebsdruck max [bar]16
Temperaturbereich-20-80 °C
Temperature (max.)80
