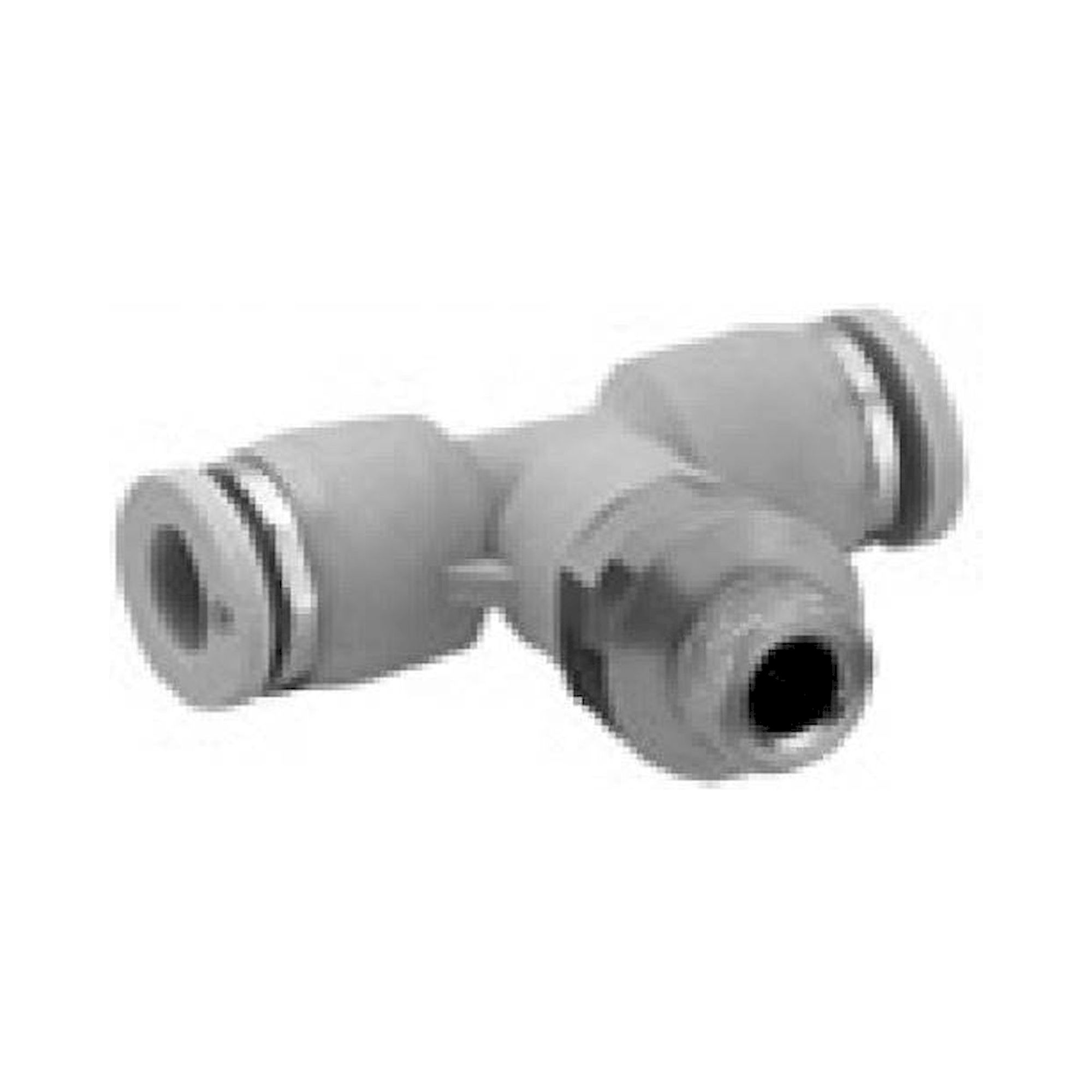

T-union male thread 10-32 UNF, tube Ø 5/32 in QR1-S-RTT-D532-1032 - Aventics R432000185
The T-shaped branch splits one air line (male thread 10-32 UNF, tube Ø 5/32 in) in two directions. T-union QR1-S-RTT-D532-1032 with male thread 10-32 UNF and push-in connection for Ø 5/32 in tube, working pressure -0.95 to 16 bar, ambient temperature -20 to 80 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For air lines with male thread 10-32 UNF and push-in connection for Ø 5/32 in tube: T-union QR1-S-RTT-D532-1032 from the Aventics QR1-S Standard series in inch sizes, usable from -20 to 80 °C. The T-shaped branch splits one air line (male thread 10-32 UNF, tube Ø 5/32 in) in two directions.
Why this fitting QR1-S-RTT-D532-1032
- Working pressure -0.95 to 16 bar, vacuum included.
- Ambient temperature -20 to 80 °C.
- Tooth lock washer in stainless steel grips the tube.
- Release ring in POM frees the tube.
- NBR seals.
- Housing in polyamide (PA).
Where it is used
Branching in compressed air networks, feeding several cylinders or valves from one line, measuring taps. Port layout of the QR1-S-RTT-D532-1032: male thread 10-32 UNF, tube Ø 5/32 in.
Technical data
| Fitting type | T-union |
|---|---|
| Connection 1 | External thread 10-32 UNF |
| Connection 2 | Push-in fitting Ø 5/32 in |
| Working pressure | -0.95 to 16 bar |
| Ambient temperature | -20 to 80 °C |
| Housing material | Polyamide (PA) |
| Seal material | Acrylonitrile butadiene rubber (NBR) |
| Release ring material | Polyoxymethylene (POM) |
| Release ring holder material | Die-cast zinc and brass |
| Tooth lock washer material | Stainless steel |
| Thread material | Brass |
| Nominal flow Qn (series) | 60 to 875 l/min |
| Series | QR1-S Standard, inch |
| Type | QR1-S-RTT-D532-1032 |
| Part number | R432000185 |
| Weight | 0.1 kg |
| Manufacturer | Aventics |
| Hersteller-Nr | R432000185 |
| Zolltarifnummer | 73072290 |
| GPSR Herstellerdaten | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Bauform | T-Verschraubung |
| Thread | UNF 10-32 |
| Working pressure max. [bar] | 16 |
| Medium | Compressed air |
| Thread type | External thread |
| Betriebsdruck max [bar] | 16 |
| Temperaturbereich | -20-80 °C |
| Temperature (max.) | 80 |
