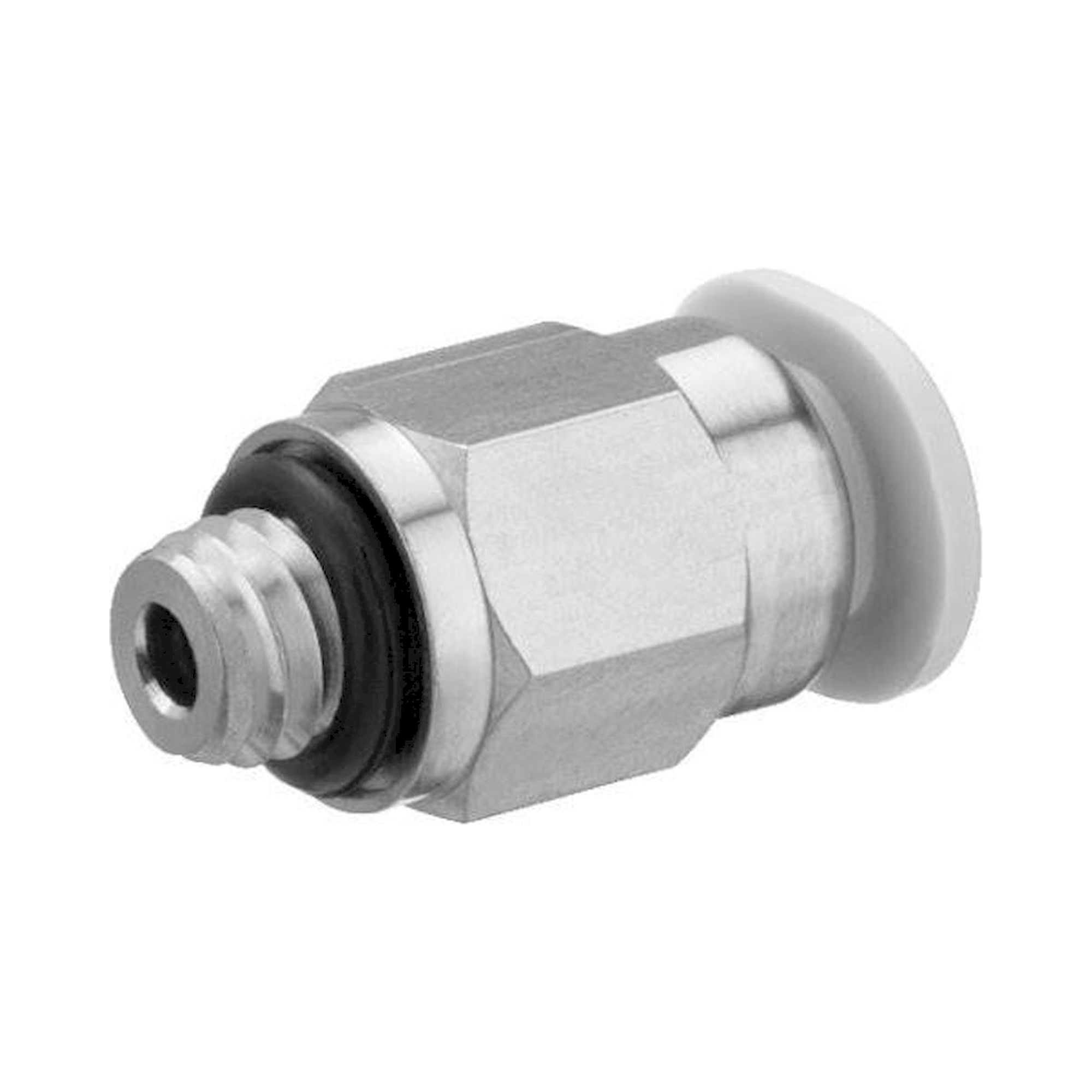

Straight fitting with hexagon head QR1-S Mini M6 to 4 mm tube, QR1-S-MAN-M006-DA04 - Aventics R412005122

Aventics ✓ Original product Brand new Made in Germany

With M6 male thread and a 4 mm push-in port, the straight fitting with hexagon head QR1-S-MAN-M006-DA04 joins tube and component without adapters. The QR1-S-MAN is rated for a working pressure from -0.95 to 10 bar, so vacuum lines are covered as well.

Net
€7.25
excl. VAT
Item AVE-R412005122
Manufacturer no. R412005122
Minimum order quantity: 25 pieces. This item is supplied in multiples of 25.
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With M6 male thread and a 4 mm push-in port, the straight fitting with hexagon head QR1-S-MAN-M006-DA04 joins tube and component without adapters. On the QR1-S-MAN, working pressure ranges from -0.95 to 10 bar.

Benefits

  • Direct connection: M6 male thread to 4 mm tube
  • Pressure range -0.95 to 10 bar, suitable for compressed air and vacuum
  • Ambient temperature 0 to 60 °C
  • Brass housing, NBR seals, stainless steel gripping washer
  • Low weight of 0.0042 kg for moving lines in tight spaces

Applications

The QR1-S-MAN with M6 fits valves, cylinders and sensors with this thread when 4 mm tube is to be connected.

Technical data

ManufacturerAventics
SeriesQR1-S Mini
TypeQR1-S-MAN-M006-DA04
Material numberR412005122
Fitting typeStraight fitting with hexagon head
Port 1External thread M6
Port 2Push-in fitting Ø 4
Working pressure-0.95 to 10 bar
Ambient temperature0 to 60 °C
Housing materialbrass
Seal materialNBR (acrylonitrile butadiene rubber)
Gripping washer materialstainless steel
Release ring materialpolyoxymethylene (POM)
Release ring holder materialdie-cast zinc, brass
Thread materialbrass
Weight0.0042 kg
Customs tariff number73072290
Hersteller-NrR412005122
Zolltarifnummer73072290
GPSR HerstellerdatenAVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
Country of ManufactureGermany
AusführungGerade Verschraubung mit Außensechskant
MaterialBrass
ThreadM6 AG
For hose OD [mm]4
Designstraight shape
Betriebsdruck max [bar]10
Pneumatic connectionM6 AG
Temperaturbereich0-60 °C
Temperature (max.)60
